Servo System Parts
Compare Servo System
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model Code | Model | Type | Length |
|---|---|---|---|---|
| SV-T1 | SV-T1 | SV-T1 | Terminal kit | — |

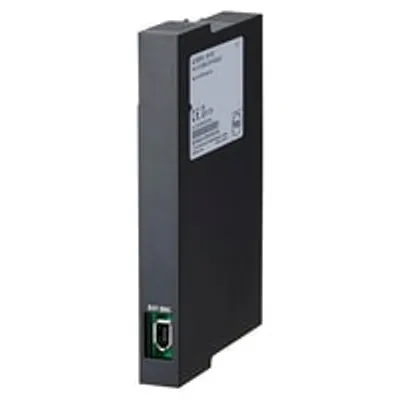

| SV-FC1 | SV-FC1 | — | — | — |
| SV-CN3 | SV-CN3 | SV-CN3 | Encoder and motor power connector set | — |
| SV-CN2 | SV-CN2 | SV-CN2 | Encoder and motor power connector set | — |
| SV-CN1 | SV-CN1 | SV-CN1 | Encoder and motor power connector set | — |
| OP-88675 | OP-88675 | — | — | — |

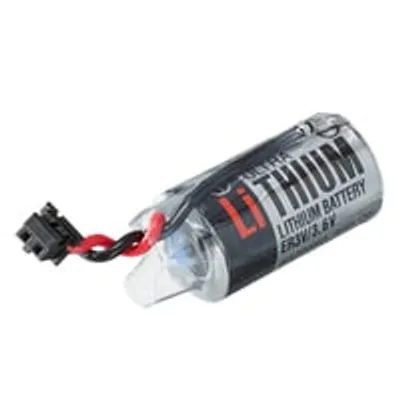

| OP-88006 | OP-88006 | OP-88006 | Replacement lithium battery | — |
| OP-87073 | OP-87073 | OP-87073 | — | — |

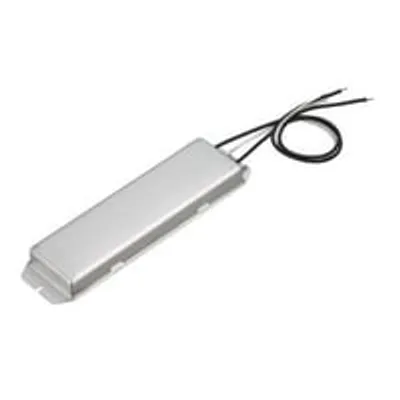

| OP-84399 | OP-84399 | OP-84399 | Regenerative resistor | — |
| SV2-LA5 | SV2-LA5 | SV2-LA5 | Communication Cable | 0.5 m 1.6' |
| SV2-LA2 | SV2-LA2 | SV2-LA2 | Communication Cable | 0.2 m 0.7' |
| SV2-L5 | SV2-L5 | SV2-L5 | Communication Cable | 5 m 16.4' |
| SV2-L3 | SV2-L3 | SV2-L3 | Communication Cable | 3 m 9.8' |
| SV2-L20 | SV2-L20 | SV2-L1A | Communication Cable | 20 m 65.6' |

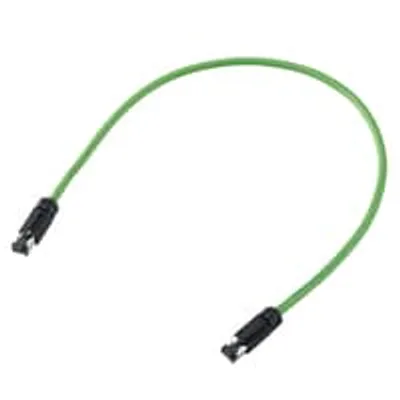

| SV2-L10 | SV2-L10 | SV2-L10 | Communication Cable | 10 m 32.8' |
| SV2-L1 | SV2-L1 | SV2-L1 | Communication Cable | 1 m 3.3' |
| SV2-E5G | SV2-E5G | SV2-E5G | Encoder cable, Hi-flex robotic | 5 m 16.4' |
| SV2-E5 | SV2-E5 | SV2-E5 | Encoder cable, Standard | 5 m 16.4' |
| SV2-E3G | SV2-E3G | SV2-E3G | Encoder cable, Hi-flex robotic | 3 m 9.8' |
| SV2-E3 | SV2-E3 | SV2-E3 | Encoder cable, Standard | 3 m 9.8' |

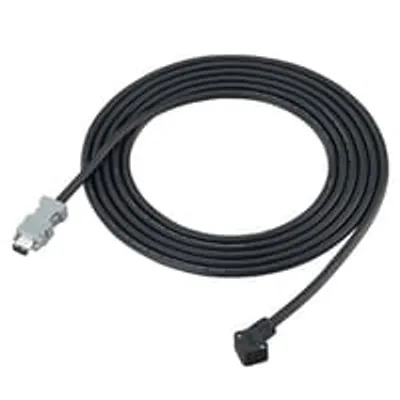

| SV2-E20G | SV2-E20G | SV2-E20G | Encoder cable, Hi-flex robotic | 20 m 65.6' |
| SV2-E20 | SV2-E20 | SV2-E20 | Encoder cable, Standard | 20 m 65.6' |
| SV2-E10G | SV2-E10G | SV2-E10G | Encoder cable, Hi-flex robotic | 10 m 32.8' |
| SV2-E10 | SV2-E10 | SV2-E10 | Encoder cable, Standard | 10 m 32.8' |
Common to all listed parts
| Series Title | Servo System |
| Series Code | SV3 series |
