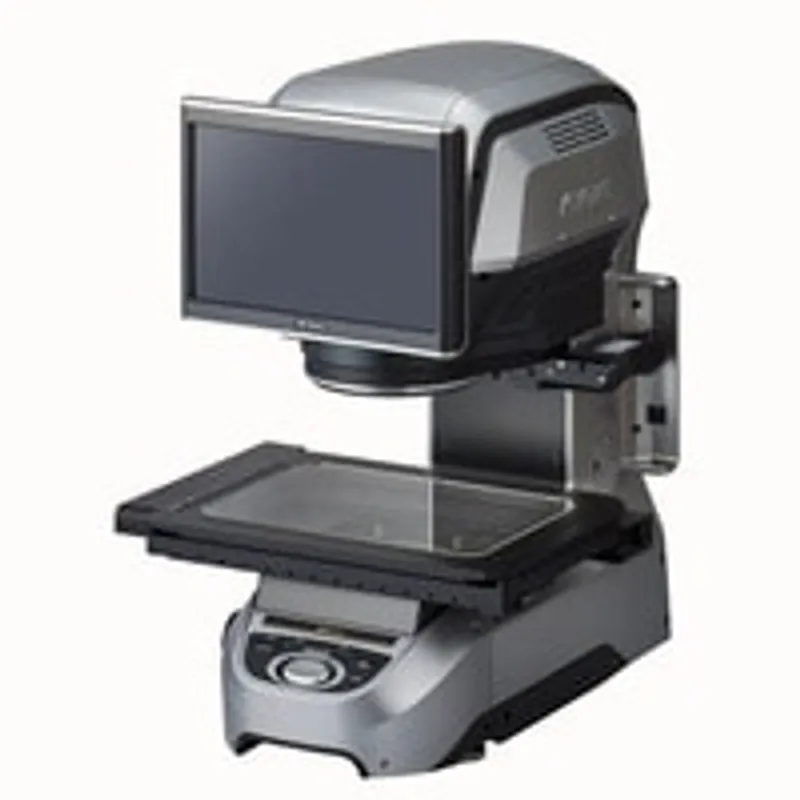

Keyence IM-8030
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Image Dimension Measurement System |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 33 kg |
Shipping & availability
When can IM-8030 be shipped?
IM-8030 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up IM-8030 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for IM-8030 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IM-8030, subject to availability and destination.
300 × 200 mm square stage Wide stage model incorporating programmable ring-illumination/light probe unit. IM-8030. Series: Image Dimension Measurement System. Series code: IM-8000 series
Specifications
Specifications
| Model Name | 300 × 200 mm square stage Wide stage model incorporating programmable ring-illumination/light probe unit |
| Model Code | IM-8030 |
| Series Title | Image Dimension Measurement System |
| Series Code | IM-8000 series |
| Data Sheet URL | https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_157120&dlModelId=PM_2158030&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US |
| Model | IM-8030 |
| Type | Head |
| Image sensor | 1" 20-megapixel monochrome CMOS |
| Display | 12.1" LCD monitor (WXGA: 1280 × 800) |
| Receiver lens | Double telecentric lens |
| Image measurement - Field of view | 300 × 200 mm 11.81" × 7.87" (4× R50 R1.97") |
| Image measurement | 225 × 125 mm 8.86" × 4.92" |
| Image measurement - Minimum display unit | 0.1 μm |
| Image measurement - Repeatability | ±1 μm |
| Image measurement - Measurement accuracy (±2σ) | ±3.9 μm *1 |
| Image measurement - Outer diameter measurement | ±(2.8 + 0.02 D) μm *5 |
| Light probe measurement - Measurable area (XY) | 190 × 90 mm 7.48" × 3.54" |
| Light probe measurement - Maximum measurement depth | 30 mm 1.18" |
| Light probe measurement - Light probe diameter | ø3 mm ø0.12" |
| Light probe measurement - Measuring force | 0.015 N |
| Light probe measurement - Repeatability | ±2 μm *7 |
| Light probe measurement - Measurement accuracy | ±(8 + 0.02 L) μm *8 |
| External remote input | Non-voltage input (with and without contact) |
| External output | PhotoMos outputRated load: 24 VDC 0.5 AON resistance: 50 mΩ or lower |
| Interface - LAN | RJ-45 (10BASE-T/100BASE-TX/1000BASE-T) |
| Interface - USB 3.1 | 4 ports (rear: 4) |
| Interface - USB 2.0 series A | 4 ports (front: 2, rear: 2) |
| Interface - Monitor output | DVI-D |
| Record | 500 GB |
| Illumination system - Transparent | Telecentric transparent illumination |
| Illumination system - Ring | Four division, multi-angle illumination (electric), Slit ring (directivity) illumination (electric) |
| XY stage - Moving range | 200 × 100 mm 7.87" × 3.94" (electric) |
| XY stage - Withstand load | 7.5 kg |
| Z stage | 75 mm 2.95" (electric) |
| Power supply - Power voltage | 100 to 240 VAC ±10%, 50/60 Hz |
| Power supply - Power consumption | 430 VA or lower |
| Environmental resistance - Ambient temperature | +10 to 35°C +50°F to 95°F |
| Environmental resistance - Relative humidity | 20 to 80% RH (no condensation) |
| Environmental resistance - Overvoltage category | II |
| Environmental resistance - Pollution degree | 2 |
| Weight | Approx. 33 kg |
