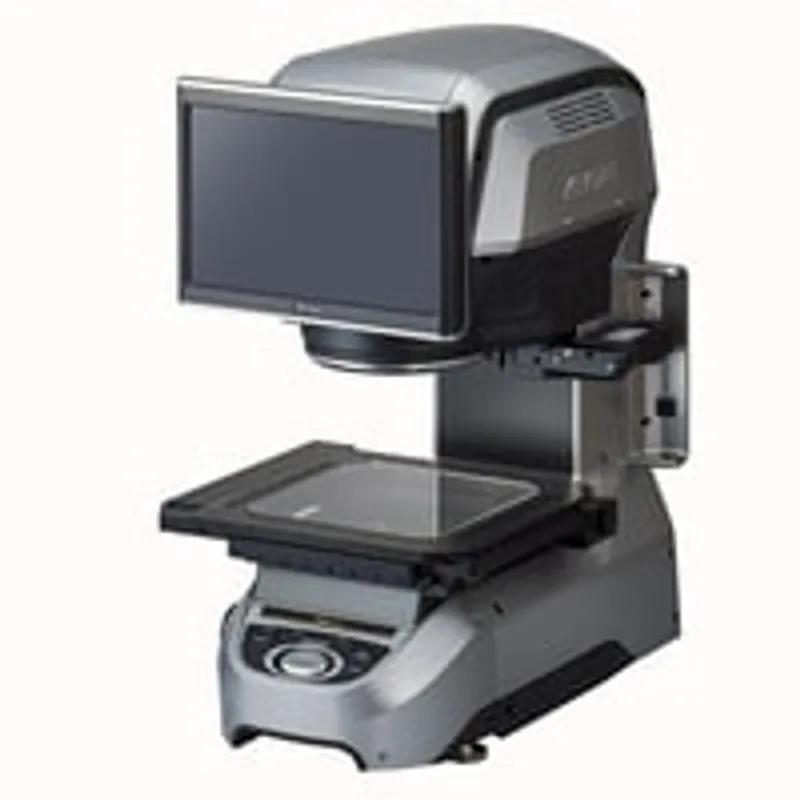

Keyence IM-8020

200 mm square stage Model incorporating programmable ring-illumination/light probe unit.

MPN: IM-8020
Category: Image Dimension Measurement System

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Keyence parts? We buy surplus →

What is the Keyence IM-8020?

200 mm square stage Model incorporating programmable ring-illumination/light probe unit. IM-8020. Series: Image Dimension Measurement System. Series code: IM-8000 series

Specifications

Model Name	200 mm square stage Model incorporating programmable ring-illumination/light probe unit
Model Code	IM-8020
Series Title	Image Dimension Measurement System
Series Code	IM-8000 series
Data Sheet URL	https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_157120&dlModelId=PM_2158020&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US
Model	IM-8020
Type	Head
Image sensor	1" 20-megapixel monochrome CMOS
Display	12.1" LCD monitor (WXGA: 1280 × 800)
Receiver lens	Double telecentric lens
Image measurement - Field of view	200 × 200 mm 7.87" × 7.87" (4× R50 R1.97")
Image measurement	125 × 125 mm 4.92" × 4.92"
Image measurement - Minimum display unit	0.1 μm
Image measurement - Repeatability	±1 μm
Image measurement - Measurement accuracy (±2σ)	±3.9 μm *1
Image measurement - Outer diameter measurement	±(2.8 + 0.02 D) μm *5
Light probe measurement - Measurable area (XY)	90 × 90 mm 3.54" × 3.54"
Light probe measurement - Maximum measurement depth	30 mm 1.18"
Light probe measurement - Light probe diameter	ø3 mm ø0.12"
Light probe measurement - Measuring force	0.015 N
Light probe measurement - Repeatability	±2 μm *7
Light probe measurement - Measurement accuracy	±(8 + 0.02 L) μm *8
External remote input	Non-voltage input (with and without contact)
External output	PhotoMos outputRated load: 24 VDC 0.5 AON resistance: 50 mΩ or lower
Interface - LAN	RJ-45 (10BASE-T/100BASE-TX/1000BASE-T)
Interface - USB 3.1	4 ports (rear: 4)
Interface - USB 2.0 series A	4 ports (front: 2, rear: 2)
Interface - Monitor output	DVI-D
Record	500 GB
Illumination system - Transparent	Telecentric transparent illumination
Illumination system - Ring	Four division, multi-angle illumination (electric), Slit ring (directivity) illumination (electric)
XY stage - Moving range	100 × 100 mm 3.94" × 3.94" (electric)
XY stage - Withstand load	5 kg
Z stage	75 mm 2.95" (electric)
Power supply - Power voltage	100 to 240 VAC ±10%, 50/60 Hz
Power supply - Power consumption	430 VA or lower
Environmental resistance - Ambient temperature	+10 to 35°C +50°F to 95°F
Environmental resistance - Relative humidity	20 to 80% RH (no condensation)
Environmental resistance - Overvoltage category	II
Environmental resistance - Pollution degree	2
Weight	Approx. 30 kg
