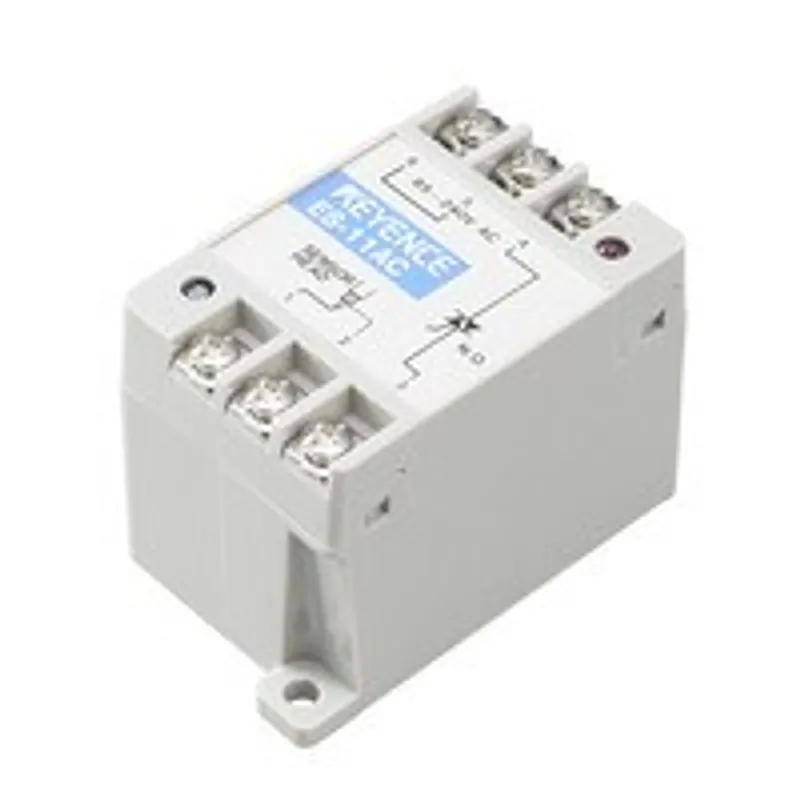

Keyence ES-11AC
Amplifier Unit, AC Type. . Series: Separate Amplifier Proximity Sensor. Series code: ES series
- MPN
- ES-11AC
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Keyence ES-11AC?
Amplifier Unit, AC Type. ES-11AC. Series: Separate Amplifier Proximity Sensor. Series code: ES series
Specifications
Specifications
| Model Name | Amplifier Unit, AC Type |
| Model Code | ES-11AC |
| Series Title | Separate Amplifier Proximity Sensor |
| Series Code | ES series |
| Data Sheet URL | https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_SR_es&dlModelId=PM_01511AC&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US |
| CAD URL | https://www.keyence.com/products/sensor/proximity/es/downloads/?mode=cd&modelId=PM_01511AC |
| Manuals URL | https://www.keyence.com/products/sensor/proximity/es/downloads/?mode=ma&modelId=PM_01511AC |
| Model | ES-11AC*1 |
| Type | AC |
| Operation mode | N.O. |
| Indicator | Output: Red LED |
| Output | Thyristor 240 VAC, 5 to 300 mA |
| Disconnection alarm output | ― |
| Leakage current (OFF time) | 0.2 mA max. |
| Response time | 10 ms max. |
| Temperature characteristics | ±8% of detecting distance at 23°C 73.4°F, within 0 to 50°C 32 to 122°F |
| Sensitivity adjustment | 15-turn trimmer |
| Rating - Power voltage | 85 to 240 VAC 50/60 Hz |
| Rating - Current/power consumption | 1 VA max. |
| Environmental resistance - Ambient temperature | 0 to +50 °C 32 to 122 °F |
| Environmental resistance - Relative humidity | 35 to 85 % RH (No condensation) |
| Weight | Approx. 125 g |
