Separate Amplifier Proximity Sensor Parts
Compare Separate Amplifier Proximity Sensor
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model Code | Model | Standard target (iron, t=1 mm 0.04") | Stable detecting range | Maximum detecting distance |
|---|---|---|---|---|---|
| OP-3109 | OP-3109 | OP-3109 | — | — | — |
| OP-3108 | OP-3108 | OP-3108 | — | — | — |
| OP-3107 | OP-3107 | OP-3107 | — | — | — |
| OP-094 | OP-094 | OP-094 | — | — | — |
| OP-063 | OP-063 | OP-063 | — | — | — |
| OP-062 | OP-062 | OP-062 | — | — | — |
| OP-041 | OP-041 | OP-041 | — | — | — |
| OP-038 | OP-038 | OP-038 | — | — | — |
| OP-037 | OP-037 | OP-037 | — | — | — |
| EH-910 | EH-910 | EH-910 | 10 x 10 mm 0.39" x 0.39" | 0 to 2 mm0.08" | 4.5 mm0.18" |
| EH-614A | EH-614A | EH-614A | 15 x 15 mm 0.59" x 0.59" | 0 to 5 mm0.20" | 8 mm0.31" |
| EH-605 | EH-605 | EH-605 | 5 x 5 mm0.02" | 0 to 1 mm0.04" | 3 mm0.12" |
| EH-440 | EH-440 | EH-440 | 40 x 40 mm1.57" | 0 to 18 mm0.71" | 36 mm1.42" |
| EH-430 | EH-430 | EH-430 | 30 x 30 mm 1.18" x 1.18" | 0 to 12 mm0.47" | 25 mm0.98" |
| EH-422 | EH-422 | EH-422 | 25 x 25 mm 0.98" x 0.98" | 0 to 9 mm0.35" | 18 mm0.71" |
| EH-416 | EH-416 | EH-416 | 20 x 20 mm 0.79" x 0.79" | 0 to 6 mm0.24" | 13 mm0.51" |
| EH-402 | EH-402 | EH-402 | 10 x 10 mm 0.39" x 0.39" | 0 to 3 mm0.12" | 7 mm0.28" |
| EH-308S | EH-308S | EH-308S | 10 x 10 mm 0.39" x 0.39" | 0 to 2 mm0.08" | 5 mm0.20" |
| EH-308 | EH-308 | EH-308 | 10 x 10 mm 0.39" x 0.39" | 0 to 2 mm0.08" | 5 mm0.20" |
| EH-305S | EH-305S | EH-305S | 5 x 5 mm0.02" | 0 to 1 mm0.04" | 3 mm0.12" |

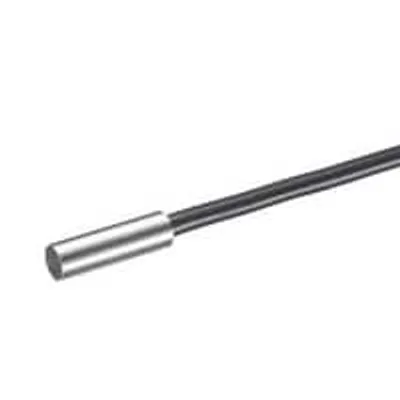

| EH-305 | EH-305 | EH-305 | 5 x 5 mm0.02" | 0 to 1 mm0.04" | 3 mm0.12" |
| EH-303A | EH-303A | EH-303A | 5 x 5 mm0.02" | 0 to 0.8 mm0.03" | 2 mm0.08" |

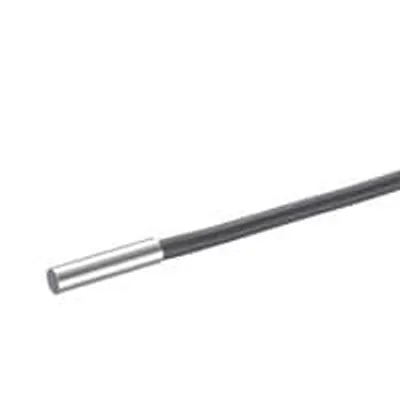

| EH-302 | EH-302 | EH-302 | 5 x 5 mm0.02" | 0 to 0.6 mm0.02" | 1.2 mm0.05" |
| EH-290 | EH-290 | EH-290 | 150 x 150 mm 5.91" x 5.91" | 0 to 35 mm1.38" | 70 mm2.76" |
Common to all listed parts
| Series Title | Separate Amplifier Proximity Sensor |
| Series Code | ES series |
