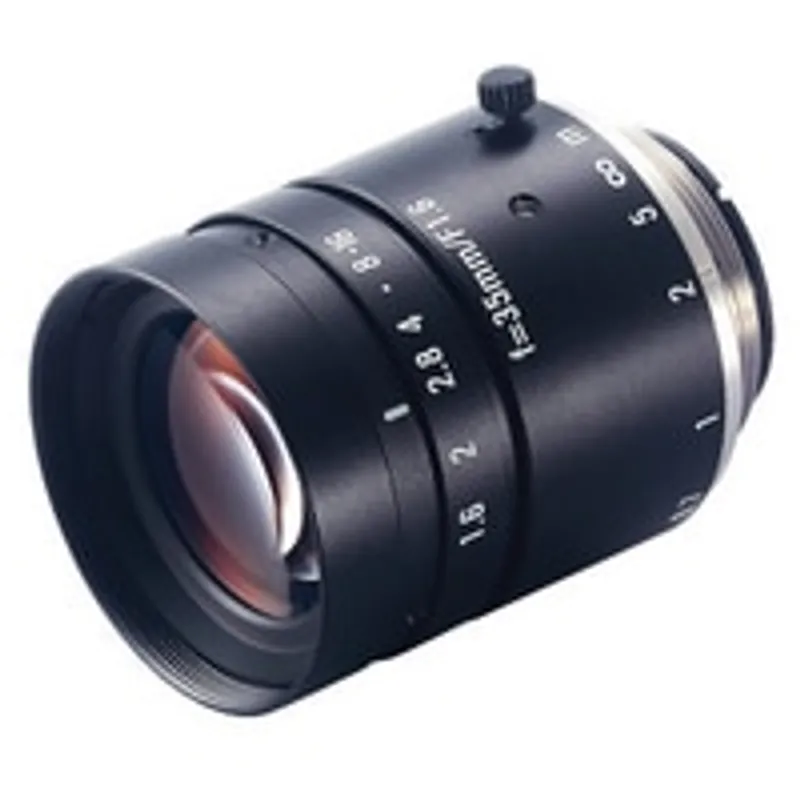

Keyence CV-L35

Lens. . Series: Lenses (for Machine Vision). Series code: CA-L series

MPN: CV-L35
Category: Lenses (for Machine Vision)

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Keyence CV-L35?

Lens. CV-L35. Series: Lenses (for Machine Vision). Series code: CA-L series

Specifications

Model Name	Lens
Model Code	CV-L35
Series Title	Lenses (for Machine Vision)
Series Code	CA-L series
Data Sheet URL	https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_124007&dlModelId=PM_124L35&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US
CAD URL	https://www.keyence.com/products/vision/vision-sys/ca-l/downloads/?mode=cd&modelId=PM_124L35
Model	CV-L35
Focal point	35 mm 1.38"
F-stop range (aperture)	F1.6 to F16
Minimum WD	0.3 m 1.0'
Mount	C-mount
Filter size	30.5 mm 1.20" P0.5
Compatible image sensor size	2/3"
TV distortion	-0.2 % (-0.08 %)*1
Resolving power	100 cycles/mm at center, 40 cycles/mm on periphery
Ambient temperature/humidity range	0 to +50 °C 32 to 122°F, 35 to 80 % RH (No condensation)
Polarizing filter	OP-54030
Protective filter	CA-LF30
Weight	Approx. 85 g
