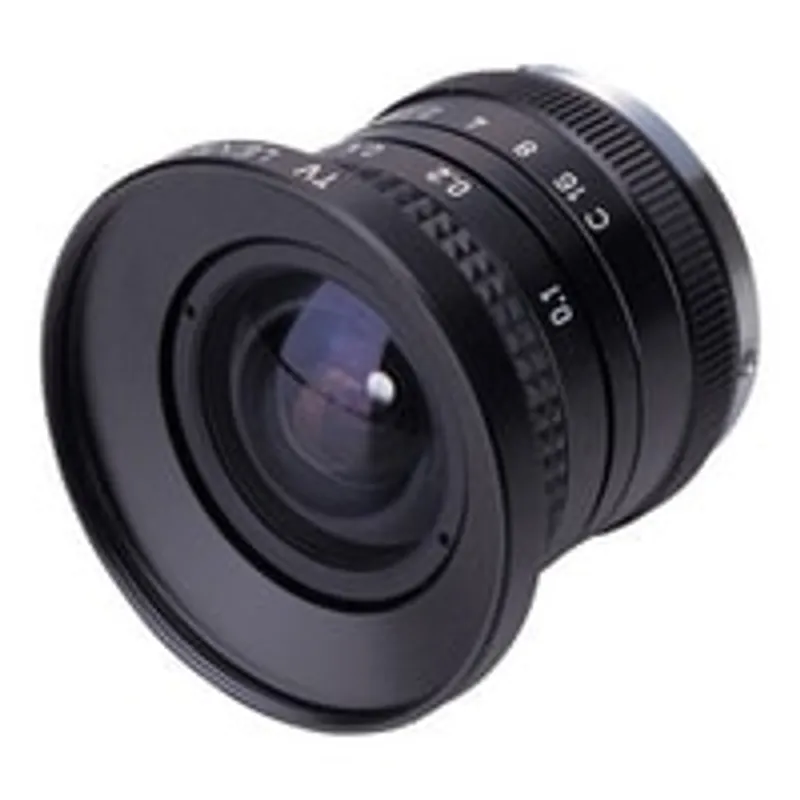

Keyence CV-L3

Lens. . Series: Lenses (for Machine Vision). Series code: CA-L series

MPN: CV-L3
Category: Lenses (for Machine Vision)

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Keyence CV-L3?

Lens. CV-L3. Series: Lenses (for Machine Vision). Series code: CA-L series

Specifications

Model Name	Lens
Model Code	CV-L3
Series Title	Lenses (for Machine Vision)
Series Code	CA-L series
Data Sheet URL	https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_124007&dlModelId=PM_124L3&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US
CAD URL	https://www.keyence.com/products/vision/vision-sys/ca-l/downloads/?mode=cd&modelId=PM_124L3
Model	CV-L3
Focal point	3.5 mm 0.14"
F-stop range (aperture)	F1.6 to CLOSE
Minimum WD	0.1 m 0.3'
Mount	C-mount
Filter size	43.0 mm 1.69" P0.75
Compatible image sensor size	1/2"
TV distortion	-10.0 % (-5.0 %)*1
Resolving power	100 cycles/mm at center, 40 cycles/mm on periphery
Ambient temperature/humidity range	0 to +50°C 32 to 122°F, 80% RH or less (No condensation)
Polarizing filter	OP-87894
Protective filter	CA-LF43
Weight	Approx. 90 g
