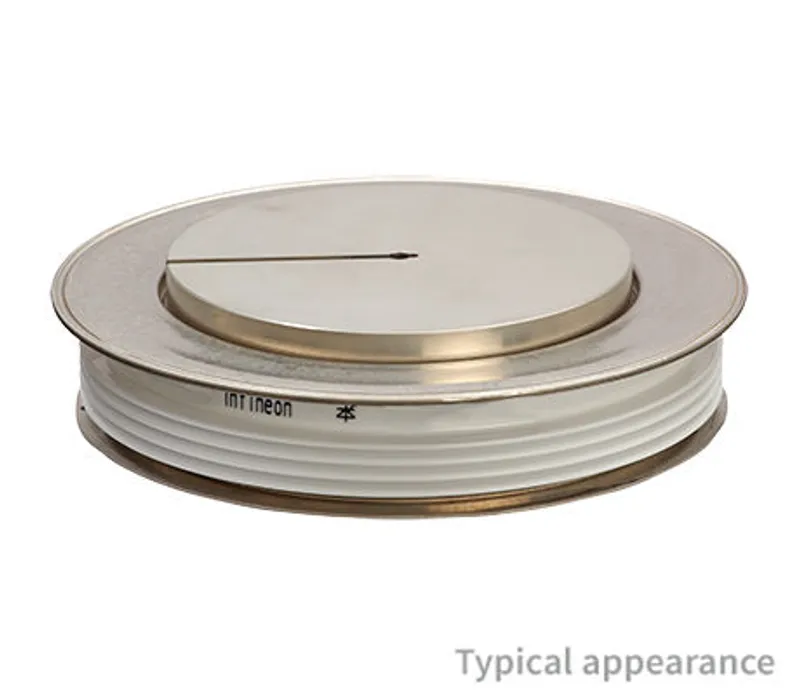

Infineon T2563NH80TOH – 8000 V Light Triggered Phase Control Thyristor Diode Disc
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thyristor & Diode Modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can T2563NH80TOH be shipped?
T2563NH80TOH is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up T2563NH80TOH in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for T2563NH80TOH and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for T2563NH80TOH, subject to availability and destination.
Infineon T2563NH80TOH: 8000 V Light Triggered Phase Control Thyristor Diode Disc in Disc dia 172mm height 40mm / Ceramic. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Clamping force [kn] range | 90 to 130 |
| Configuration | Light Triggered Phase Control Thyristor |
| Housing | Disc dia 172mm height 40mm / Ceramic |
| ITAVM/TC [A/°C] (@180° el sin) | 2300/85 |
| ITAVM | 2300 (180 ° el sin) |
| ITSM [A] (@10ms, Tvj max) | 90000 |
| ITSM | 90000 A |
| rT [mΩ] (@Tvj max) max | 0.35 |
| RthJC [K/kW] (@180° el sin) max | 4.8 |
| tq [µs] | 550 |
| Tvj [°C] max | 120 |
| VDRM / VRRM [V] | 8000 |
| VDRM/ VRRM (V) | 8000 V |
| VT/IT [V/kA] (@Tvj max) | 2.95/5.0 |
| VT0 [V] (@Tvj max) max | 1.2 |
| ∫I2dt [A²s · 103] (@10ms, Tvj max) | 40500 |
Ordering codes (OPN)
| T2563NH80TOHXOSA1 | active and preferred |
