Infineon T2480N28TOF-VT – 2800 V, electrical triggered phase control thyristor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thyristor & Diode Modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can T2480N28TOF-VT be shipped?
T2480N28TOF-VT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up T2480N28TOF-VT in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for T2480N28TOF-VT and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for T2480N28TOF-VT, subject to availability and destination.
Infineon T2480N28TOF-VT: 2800 V, electrical triggered phase control thyristor in Disc dia 111mm height 26mm / Ceramic. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Clamping force [kn] range | 42 to 95 |
| Configuration | Electrical Triggered Phase Control Thyristor |
| Housing | Disc dia 111mm height 26mm / Ceramic |
| ITAVM/TC [A/°C] (@180° el sin) | 2480/85 |
| ITAVM | 2480 (180 ° el sin) |
| ITSM [A] (@10ms, Tvj max) | 43500 |
| ITSM | 43500 A |
| rT [mΩ] (@Tvj max) max | 0.154 |
| RthJC [K/kW] (@180° el sin) max | 8.5 |
| tq [µs] | 400 |
| Tvj [°C] max | 125 |
| VDRM / VRRM [V] | 2800 |
| VDRM/ VRRM (V) | 2800 V |
| VT/IT [V/kA] (@Tvj max) | 1.43/3.0 |
| VT0 [V] (@Tvj max) max | 0.95 |
| ∫I2dt [A²s · 103] (@10ms, Tvj max) | 9460 |
Ordering codes (OPN)
| T2480N28TOFVTXPSA1 | active and preferred |
More Infineon parts
Available on requestT2401N phase-control thyristor disc, up to 5500 VAvailable on requestT2476N phase-control thyristor disc, up to 3000 VAvailable on requestT2479N phase-control thyristor disc, up to 3000 V, 57/26 mm press-pack

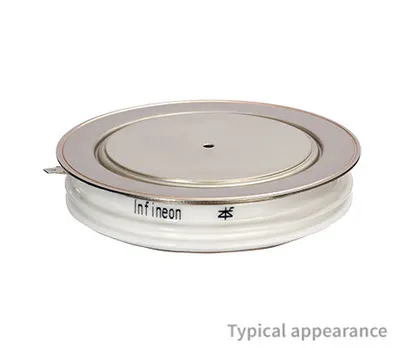

Available on request2600 V, electrical triggered phase control thyristorAvailable on requestT2509N phase-control thyristor disc, up to 800 V, 75/26 mm press-pack

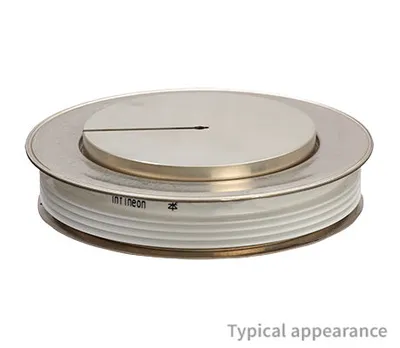

Available on request8000 V Light Triggered Phase Control Thyristor Diode Disc
