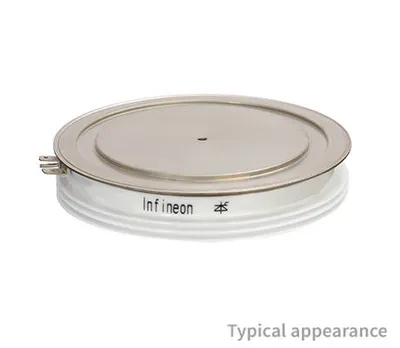

Infineon T2200N16H100 – 1600 V phase control thyristor disc
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thyristor & Diode Modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can T2200N16H100 be shipped?
T2200N16H100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up T2200N16H100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for T2200N16H100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for T2200N16H100, subject to availability and destination.
Infineon T2200N16H100: 1600 V phase control thyristor disc in Disc dia 100mm height 26mm / Ceramic housing. Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Clamping force [kn] range | 30 to 45 |
| Housing | Disc dia 100mm height 26mm / Ceramic |
| ITAVM/TC [A/°C] (@180° el sin) | 2170/85 |
| ITAVM | 2170 (180 ° el sin) |
| ITSM [A] (@10ms, Tvj max) | 44000 |
| RthJC [K/kW] (@180° el sin) max | 12.6 |
| Tvj [°C] max | 125 |
| VDRM / VRRM [V] | 1600 |
| VDRM/ VRRM (V) | 1600 V |
| ∫I2dt [A²s · 103] (@10ms, Tvj max) | 9680 |
Ordering codes (OPN)
| T2200N16H100XPSA1 | active and preferred, package BG-T10026K-1, RoHS |
Downloads & documentation
Official documents from Infineon, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet T2200N16H100 |
