Infineon T2160N28TOF-VT – 2800 V, electrical triggered phase control thyristor
Discontinued by Infineon — we can still source the original T2160N28TOF-VT (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thyristor & Diode Modules |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the T2160N28TOF-VT now that it is discontinued?
Yes. Infineon has discontinued the T2160N28TOF-VT, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can T2160N28TOF-VT be shipped?
T2160N28TOF-VT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up T2160N28TOF-VT in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for T2160N28TOF-VT and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for T2160N28TOF-VT, subject to availability and destination.
Infineon T2160N28TOF-VT: 2800 V, electrical triggered phase control thyristor in Disc dia 111mm height 26mm / Ceramic. Discontinued by Infineon. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Clamping force [kn] range | 42 to 95 |
| Configuration | Electrical Triggered Phase Control Thyristor |

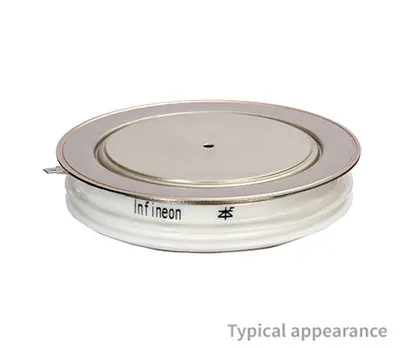

| Housing | Disc dia 111mm height 26mm / Ceramic |
| ITAVM/TC [A/°C] (@180° el sin) | 2400/85 |
| ITAVM | 2400 (180 ° el sin) |
| ITSM [A] (@10ms, Tvj max) | 40000 |
| ITSM | 40000 A |
| rT [mΩ] (@Tvj max) max | 0.154 |
| RthJC [K/kW] (@180° el sin) max | 8.5 |
| tq [µs] | 400 |
| Tvj [°C] max | 125 |
| VDRM / VRRM [V] | 2800 |
| VDRM/ VRRM (V) | 2800 V |
| VT/IT [V/kA] (@Tvj max) | 2.65/8.8 |
| VT0 [V] (@Tvj max) max | 1.05 |
| ∫I2dt [A²s · 103] (@10ms, Tvj max) | 8000 |
Ordering codes (OPN)
| T2160N28TOFVTXPSA1 | discontinued |
