Infineon FS650R08A4P2

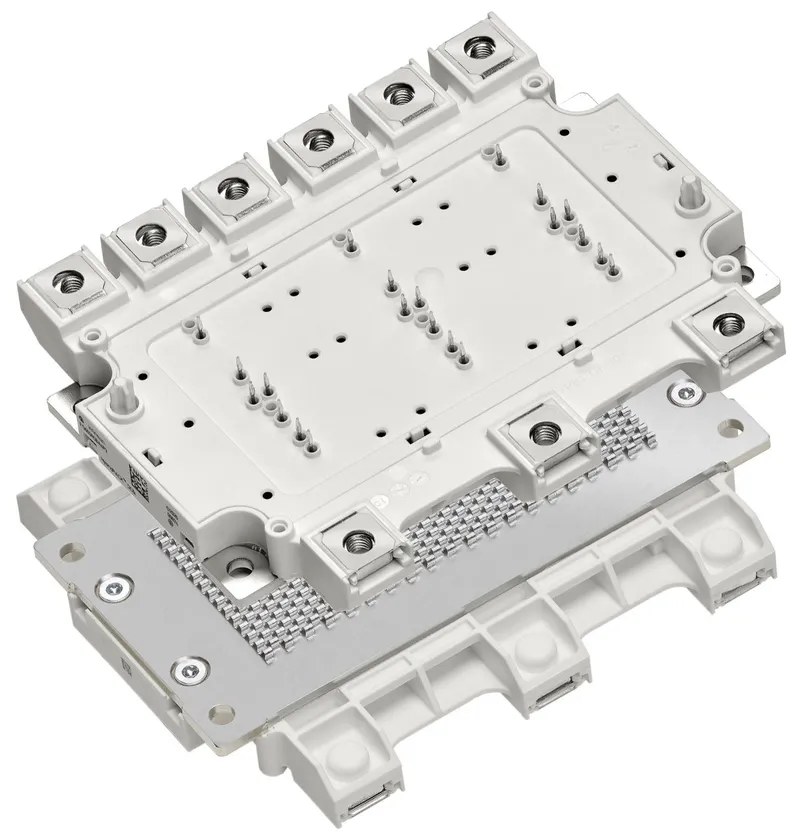

HybridPACK™ DC6i 750V, 650A sixpack automotive qualified IGBT module
- MPN
- FS650R08A4P2
- Category
- IGBT Modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Infineon FS650R08A4P2?
Infineon FS650R08A4P2: HybridPACK™ DC6i 750V, 650A sixpack automotive qualified IGBT module (IGBT EDT2). Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Configuration | Sixpack |
| Cooling Concept | Wave baseplate |
| Dimensions (width) | 112.6 mm |
| Dimensions (length) | 140 mm |
| Features | Wave baseplate |
| Housing | HybridPACK™ DC6i |
| IC(nom) / IF(nom) | 650 A |
| IC max | 650 A |
| Launch year | 2020 |
| Planned to be available until at least | 2035 |
| Qualification | Automotive |
| Technology | IGBT EDT2 |
| VCE(sat) (Tvj=25°C typ) | 1.1 V |
| VCES (Tvj=25°C typ) | 750 V |
| VF (Tvj=25°C typ) | 1.45 V |
| Voltage Class max | 750 V |
Ordering codes (OPN)
| FS650R08A4P2BPSA1 | active and preferred, package AG-HDC6I-7511, RoHS |
No matching specifications
Downloads & documentation
Official documents from Infineon, downloaded directly from the manufacturer.
Data sheets & manuals
FS650R08A4P2: frequently asked questions
When can FS650R08A4P2 be shipped?
FS650R08A4P2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FS650R08A4P2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FS650R08A4P2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FS650R08A4P2, subject to availability and destination.
