Infineon FS520R12A8P1LB

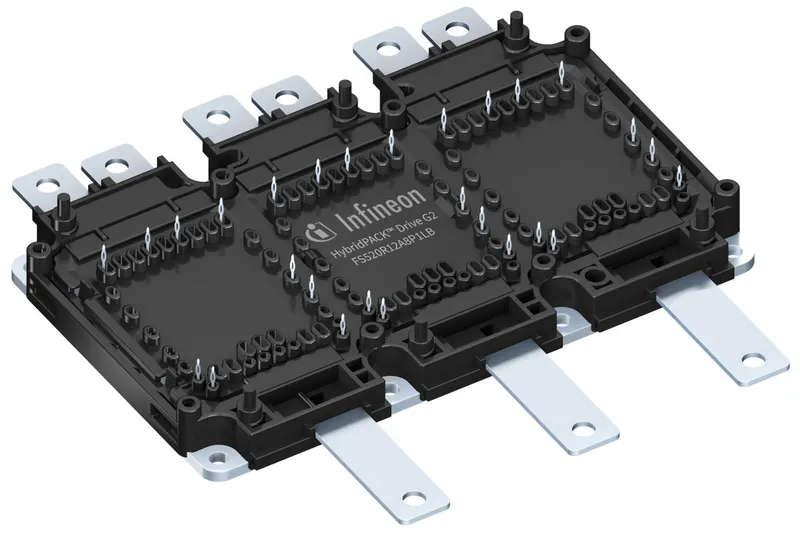

This HybridPACK™ Drive G2 module is a very compact six-pack power module (1200V/520A) with enhanced package optimized for hybrid and electric vehicles.
- MPN
- FS520R12A8P1LB
- Category
- IGBT Modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Infineon FS520R12A8P1LB?
Infineon FS520R12A8P1LB: This HybridPACK™ Drive G2 module is a very compact six-pack power module (1200V/520A) with enhanced package optimized for hybrid and electric vehicles. (IGBT EDT1200). Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Configuration | Sixpack |
| Features | PinFin Base Plate |
| Features | long Tabs |
| Housing | HybridPACK™ Drive G2 |
| IC(nom) / IF(nom) | 520 A |
| Launch year | 2024 |
| Planned to be available until at least | 2038 |
| Qualification | Automotive |
| Technology | IGBT EDT1200 |
| VCE(sat) (Tvj=25°C typ) | 1.48 V |
| VCES (Tvj=25°C typ) | 1200 V |
| Voltage Class max | 1200 V |
Ordering codes (OPN)
| FS520R12A8P1LBHPSA1 | active and preferred, package AG-HDG2XT-7611, RoHS |
No matching specifications
Downloads & documentation
Official documents from Infineon, downloaded directly from the manufacturer.
Data sheets & manuals
FS520R12A8P1LB: frequently asked questions
When can FS520R12A8P1LB be shipped?
FS520R12A8P1LB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FS520R12A8P1LB in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FS520R12A8P1LB and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FS520R12A8P1LB, subject to availability and destination.
