Infineon FF450R45T3E4-B5

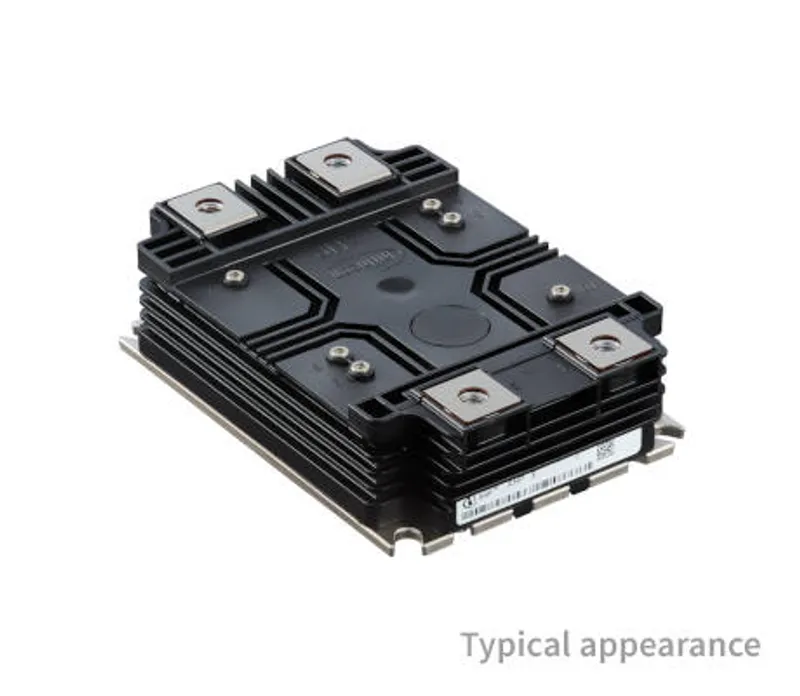

4500 V, 450 A half-bridge IGBT module

MPN: FF450R45T3E4-B5
Category: IGBT Modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Infineon parts? We buy surplus →

What is the Infineon FF450R45T3E4-B5?

Infineon FF450R45T3E4-B5: 4500 V, 450 A half-bridge IGBT module in XHP™ 3 housing (IGBT4 - E4). Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

Configuration	half-bridge
Dimensions (length)	140 mm
Dimensions (width)	99.8 mm
Features	Phase leg
Features	10.4 kV isolation
Housing	XHP™ 3
IC(nom) / IF(nom)	450 A
IC max	450 A
Qualification	Industrial
Qualification	Traction
Technology	IGBT4 - E4
VCE(sat)	2.35 V
VCE(sat) (Tvj=25°C typ)	2.35 V
VCES / VRRM	4500 V
VF (Tvj=25°C typ)	2.6 V
Voltage Class max	4500 V

Ordering codes (OPN)

FF450R45T3E4B5BPSA1

active and preferred, package AG-XHP3K45, RoHS

Downloads & documentation

Official documents from Infineon, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet FF450R45T3E4-B5PDF

FF450R45T3E4-B5: frequently asked questions

When can FF450R45T3E4-B5 be shipped?

FF450R45T3E4-B5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FF450R45T3E4-B5 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FF450R45T3E4-B5 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FF450R45T3E4-B5, subject to availability and destination.
