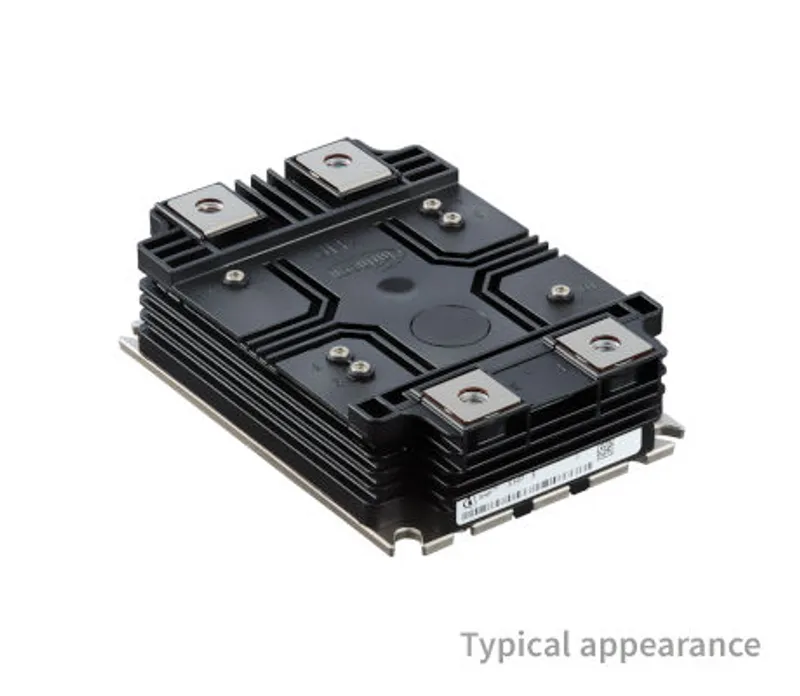

Infineon FF450R33T3E3-B5 – 3300 V, 450 A half-bridge IGBT module
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | IGBT Modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can FF450R33T3E3-B5 be shipped?
FF450R33T3E3-B5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FF450R33T3E3-B5 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FF450R33T3E3-B5 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FF450R33T3E3-B5, subject to availability and destination.
Infineon FF450R33T3E3-B5: 3300 V, 450 A half-bridge IGBT module in XHP™ 3 housing (IGBT3 - E3). Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Configuration | half-bridge |
| Dimensions (width) | 99.8 mm |
| Dimensions (length) | 140 mm |
| Features | Phase leg |
| Features | 10.4 kV isolation |
| Housing | XHP™ 3 |
| IC(nom) / IF(nom) | 450 A |
| IC max | 450 A |
| Qualification | Industrial |
| Qualification | Traction |
| Technology | IGBT3 - E3 |
| VCE(sat) (Tvj=25°C typ) | 2.55 V |
| VCES / VRRM | 3300 V |
| VF (Tvj=25°C typ) | 3.1 V |
| Voltage Class max | 3300 V |
Ordering codes (OPN)
| FF450R33T3E3B5BPSA1 | active and preferred, package AG-XHP3K33, RoHS |
Downloads & documentation
Official documents from Infineon, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet FF450R33T3E3-B5 |
