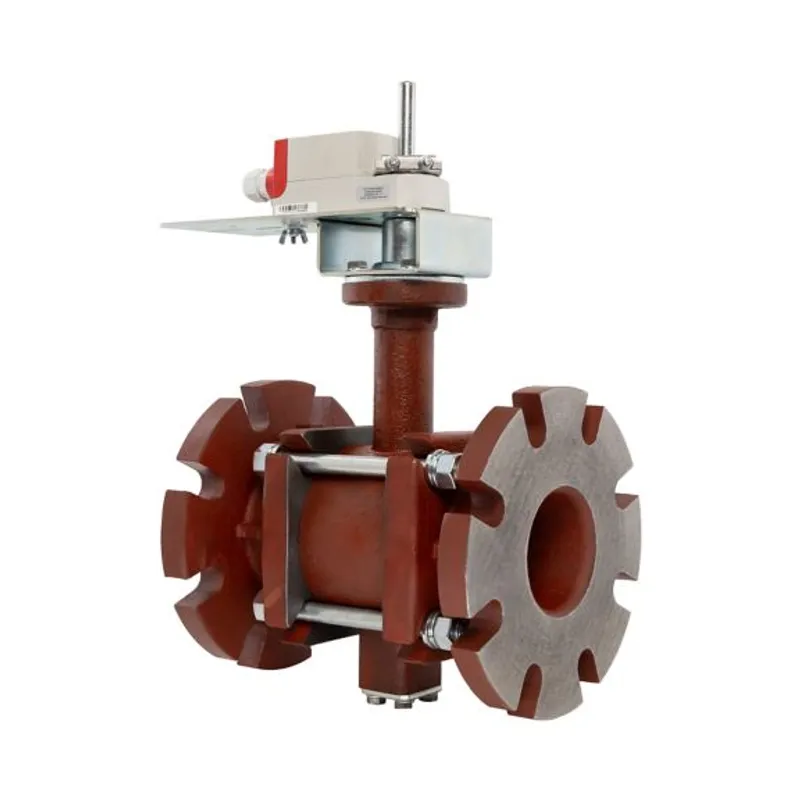

Honeywell – VBF2J11S0A/M VBF2 and VBF3 Flanged Control Ball Valves and Actuators

The VBF2 Two-Way and the VBF3 Three-Way Ball Valve Assemblies, with and without actuators, control hot and chilled water with glycol solutions up to 50% in heating, ventilating, and air conditioning (HVAC) systems to provide two-position or modulating functions.

These valve assemblies can be ordered with or without factory-mounted non-spring return or spring return direct-coupled actuators (DCA).

Features & Benefits:

Sizes from 4 to 6 inch with ANSI Class 125 flanged connections

Equal percentage flow characteristics

Choice of four, factory-installed actuation control schemes: Floating, Modulating (2-10 V), Spring Return 24V 2-Position, Spring Return Modulating/Floating

Field configurable for normally open or normally closed fail-safe position

Optional NEMA 3R (IP54) rated enclosure for outdoor applications

Wide range of CV choices from 91 to 650

Valve ball and stem 316 stainless steel.

ANSI Class IV leakage specification (0.01% of CV) on most configurations

Mixing and Diverting control options available on 3-way valves

Globe valve A-B-AB flow pattern on 3-way valves (side B port)

Honeywell VBF2J11S0A/M — The VBF2 Two-Way and the VBF3 Three-Way Ball Valve Assemblies, with and without actuators, control hot and chilled water with glycol solutions up to 50% in heating, ventilating, and air conditioning (HVAC) systems. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
