Honeywell – PRO4000PD2 PRO4000 Controllers

MPN: PRO4000PD2 · Brand: Honeywell

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Honeywell Access Control
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can PRO4000PD2 be shipped?

PRO4000PD2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up PRO4000PD2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for PRO4000PD2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PRO4000PD2, subject to availability and destination.

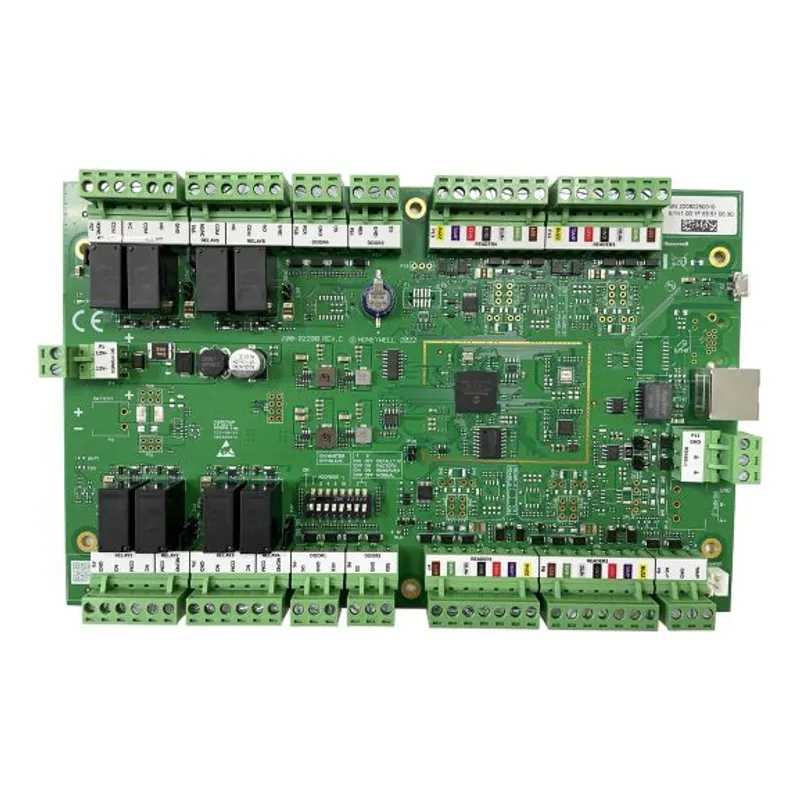

The PRO4000 combines intelligent controller and reader interface into one complete unit. It connects for four readers via Wiegand controlling four doors. The controller can support up to 60 doors via RS485 multi-drop communication where 14 downstream controllers are connected to the gateway controller. This architecture can reduce the usage on LANs by using only one TCP/IP address to 60 doors.

Features & Benefits:

The PRO4000 adopts 32-bit CPU structure and embedded Linux operating system, which is powerful and flexible; cardholder and event data are stored in the onboard flash memory, which can be stored for a long time even after power failure.

The PRO4000 provides complete logic for four doors, each door includes a card reader interface, an independent electric lock output control, an auxiliary relay output control, and two supervised inputs for door status signals and exit request signals, The supervised input supports four-state detection. In addition, the controller also provides an independent detection input for enclosure tamper signals and external AC power loss signals.

The PRO4000 is designed to operate off-line, making access control

decisions independently from a PC or other controlling device. It can

also be connected to a host computer for system configuration, alarm

monitoring and direct control. Connectivity to the host computer is

accomplished via TCP/IP network connection.

The PRO4000 combines intelligent controller and reader interface

into one complete unit. It connects for four readers via Wiegand

controlling four doors. The controller can support up to 60 doors

via RS485 multi-drop communication where 14 downstream

controllers are connected to the gateway controller. This architecture

can reduce the usage on LANs by using only one TCP/IP

address to 60 doors.

The PRO4000 supports two Lock drive modes of dry-contact and self-whetting. In dry-contact mode, Customer needs to prepare an additional power supply for lock, and the controller can output to cut off the power of lock; In self-whetting mode, the lock will be power sourced from the PRO4000, which the controller can out to energize the lock.

The PRO4000 offers 4 SKU units, 4 door and 2 door optional, pre-assembled in enclosure and PCBA optional, to fit flexible field deployment.

Certifications:

CE certification

Honeywell PRO4000PD2 — PRO4000 is an advanced access control panel capable of providing solutions for medium to large applications which is working under WINPAK® platform. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
