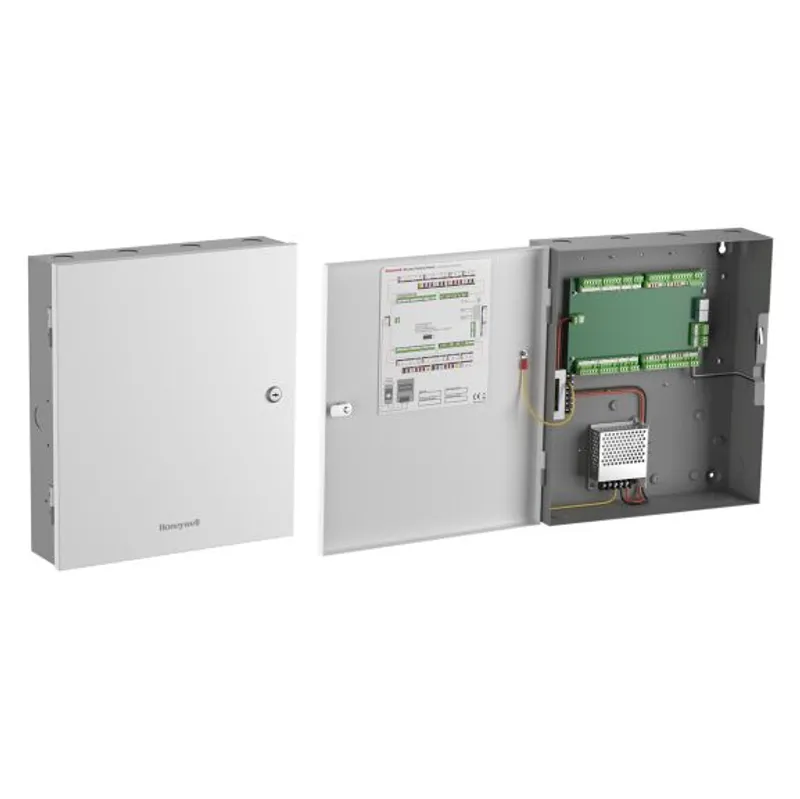

Honeywell PRO4000KD2

PRO4000 Controllers Kit

MPN
PRO4000KD2
Price and lead time confirmed within 1 business day

Discontinued by Honeywell — we can still source the original PRO4000KD2 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

What is the Honeywell PRO4000KD2?

The PRO4000 combines intelligent controller and reader interface into one complete unit. It connects for four readers via Wiegand controlling four doors. The controller can support up to 60 doors via RS485 multi-drop communication where 14 downstream controllers are connected to the gateway controller. This architecture can reduce the usage on LANs by using only one TCP/IP address to 60 doors.

Features & Benefits:

The PRO4000 adopts 32-bit CPU structure and embedded Linux operating system, which is powerful and flexible; cardholder and event data are stored in the onboard flash memory, which can be stored for a long time even after power failure.

The PRO4000 provides complete logic for four doors, each door includes a card reader interface, an independent electric lock output control, an auxiliary relay output control, and two supervised inputs for door status signals and exit request signals, The supervised input supports four-state detection. In addition, the controller also provides an independent detection input for enclosure tamper signals and external AC power loss signals.

The PRO4000 is designed to operate off-line, making access control

decisions independently from a PC or other controlling device. It can

also be connected to a host computer for system configuration, alarm

monitoring and direct control. Connectivity to the host computer is

accomplished via TCP/IP network connection.

The PRO4000 combines intelligent controller and reader interface

into one complete unit. It connects for four readers via Wiegand

controlling four doors. The controller can support up to 60 doors

via RS485 multi-drop communication where 14 downstream

controllers are connected to the gateway controller. This architecture

can reduce the usage on LANs by using only one TCP/IP

address to 60 doors.

The PRO4000 supports two Lock drive modes of dry-contact and self-whetting. In dry-contact mode, Customer needs to prepare an additional power supply for lock, and the controller can output to cut off the power of lock; In self-whetting mode, the lock will be power sourced from the PRO4000, which the controller can out to energize the lock.

The PRO4000 offers 4 SKU units, 4 door and 2 door optional, pre-assembled in enclosure and PCBA optional, to fit flexible field deployment.

Certifications:

CE certification

Honeywell PRO4000KD2 — PRO4000 is an advanced access control panel capable of providing solutions for medium to large applications which is working under WINPAK® platform. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleDiscontinued by Honeywell

Ordering codes

Part numbers on this product pagePRO4000KD2, PRO4000KD4

PRO4000KD2: frequently asked questions

Can I still buy the PRO4000KD2 now that it is discontinued?

Yes. Honeywell has discontinued the PRO4000KD2, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can PRO4000KD2 be shipped?

PRO4000KD2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up PRO4000KD2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for PRO4000KD2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PRO4000KD2, subject to availability and destination.

More Honeywell parts

Honeywell PRO22R1 – PRO3200 Series Single Reader Module
Honeywell
PRO22R1

PRO3200 Series Single Reader Module

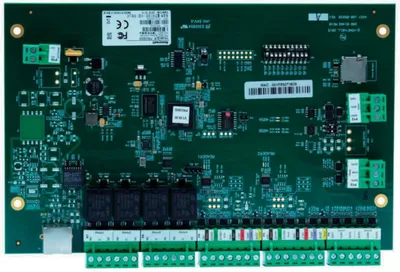

Honeywell PRO3000 – Access controller
Honeywell
PRO3000

Access controller

Honeywell PRO322O4 – PRO32IC Intelligent Controller
Honeywell
PRO322O4

PRO32IC Intelligent Controller

Honeywell PRO32IN – PRO3200 16 Alarm Input Module
Honeywell
PRO32IN

PRO3200 16 Alarm Input Module

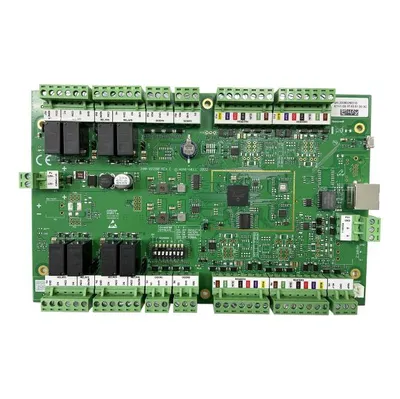

Honeywell PRO4000PD2 – PRO4000 Controllers
Honeywell
PRO4000PD2

PRO4000 Controllers

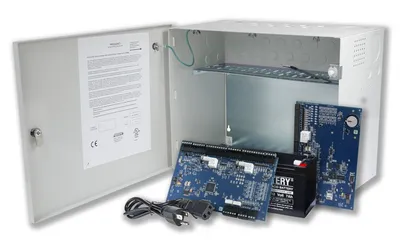

Honeywell PRO42E1D10 – PRO4200 Controllers
