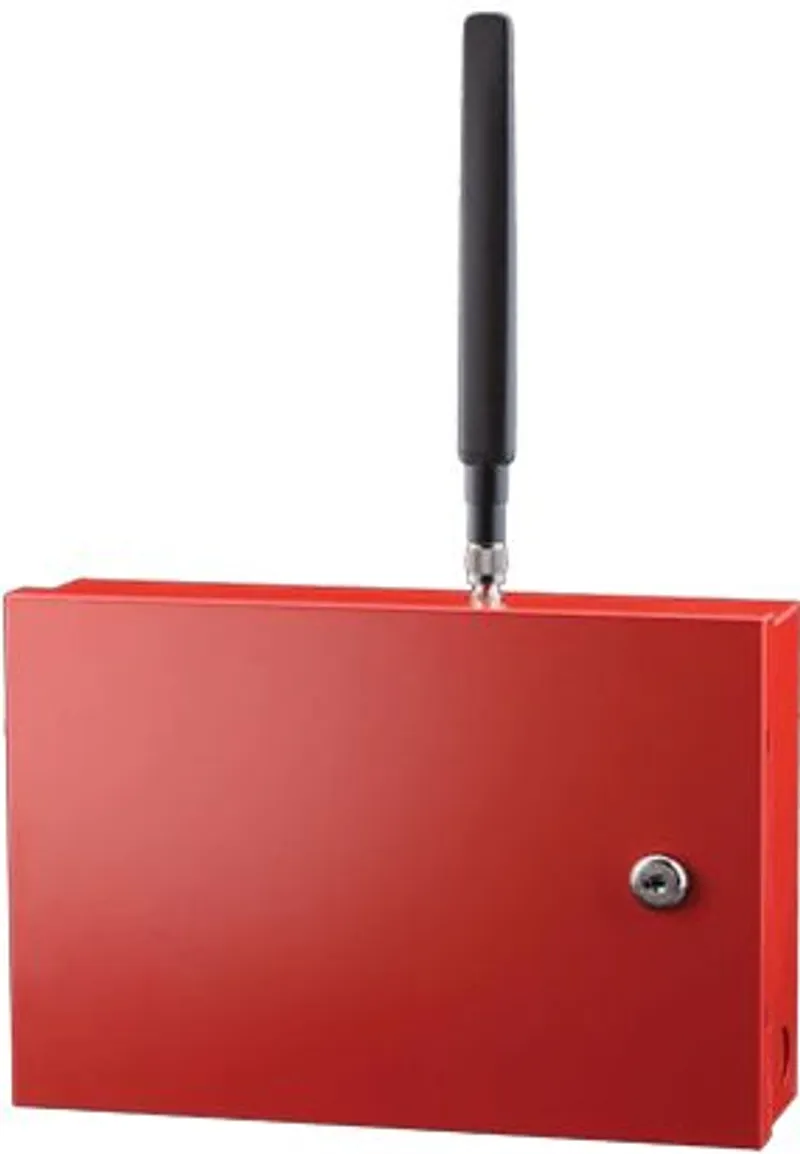

Honeywell HW-TG7FE-A

What is the Honeywell HW-TG7FE-A?

The CLSS-Enabled 5G LTE-M Dual-Path Fire Alarm Communicator transmits alarm signals from the fire panel over the 5G LTE-M networks of AT&T (HW-TG7FE-A) and Verizon (HW-TG7FE-V) to the designated monitoring station while leveraging connectivity with Honeywell's powerful CLSS cloud data analytics tool. Compliant with UL864, UL1610, ULC S559, ULC S304, the CLSS LTE Fire Communicator can serve as a dual-path communicator with IP. For existing installations, all landlines dedicated to the master control unit can be replaced with a single CLSS 5G LTE-M Fire Communicator because of its 5 or 60-minute supervision modes. Powered from the panel or plug-in transformer. Includes metal enclosure with lock set.

Features & Benefits:

Dialer Capture Communicator Features

Certified for use on AT&T and Verizon 5G LTE-M and IP networks

Dual-path communications

5- or 60-minute supervision modes (180 seconds available in Canada)

Alarm panel 12/24V auxiliary output

2 supervisory outputs and 1 trip input available

Powered from panel or plug-in transformer

Supports most common alarm formats: Contact ID, SIA2, pulse (3x1, 4x2), modem lle, IIIa, and DMP

Transmits fire alarm signals through the Telguard Communication Center

Red metal enclosure

For existing installations, a single communicator can replace all landlines dedicated to the master control unit

Includes plug-in AC adapter with backup battery (available accessory)

Integrated with Honeywell CLSS using Contact ID for enhanced test & inspect and other CLSS features

Honeywell Connected Life Safety Services (CLSS) Features

Software Features Included (Mobile App & Browser) (NOTE: CLSS features only available when using Contact ID reporting)

CLSS Site Manager – Dealer view of all accounts and real-time information on event generation

CLSS Facility Manager – End User view of asset information across multiple sites and event alerts mobile app.

Certifications:

UL Listed: 864, 365, 1610, 985, 1023

ULC Listed (AT&T only*): S545, S304, S559, C0123

In Canada, cellular data may be carried by Rogers, Bell, Telus, or SaskTel

Fire Department Certificate of Approval #6316

CSFM listed

Los Angeles Fire Department Approved

Compliant with 2019 and earlier editions of NFPA 72

Honeywell HW-TG7FE-A — The HW-TG7FE Fire Series combines Telguard’s 5G LTE-M model TG-7FE dual-path Fire Alarm Communicator with the powerful capabilities of Honeywell’s Connected Life Safety Services (CLSS) Cloud. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
