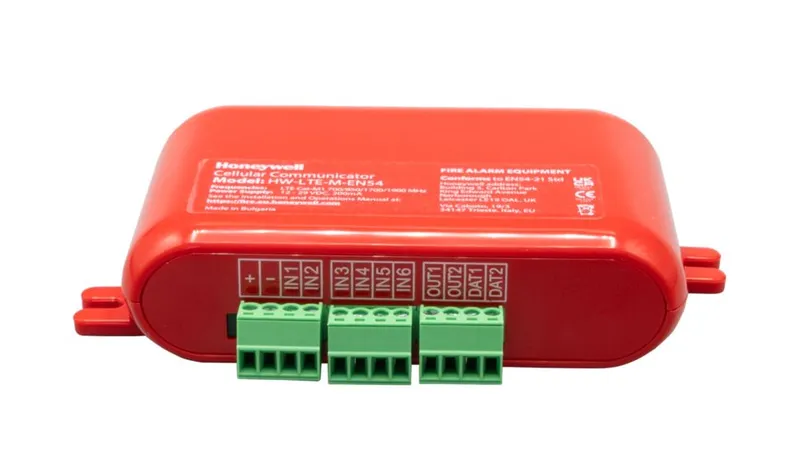

Honeywell – HW-LTE-M-EN54 EN54 CLSS Pathway

Name: Honeywell – HW-LTE-M-EN54 EN54 CLSS Pathway
Brand: Honeywell
SKU: HW-LTE-M-EN54

MPN: HW-LTE-M-EN54 · Brand: Honeywell

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Honeywell Fire Alarm Panels & Modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can HW-LTE-M-EN54 be shipped?

HW-LTE-M-EN54 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up HW-LTE-M-EN54 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for HW-LTE-M-EN54 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HW-LTE-M-EN54, subject to availability and destination.

The CLSS Pathway combines support for any panel via digital inputs with the powerful

capabilities of Honeywell’s CLSS Cloud. It represents the latest alarm communications

technology for the industry. The EN54-21 listed CLSS Pathway allows data transmission by utilizing LTE

CAT-M1 networks, serving as a bridge between the alarm system and the CLSS Cloud.

This device provides a single site-to-cloud path ensuring all CLSS Cloud services use the

same audited and monitored method to access the on-premises life safety system.

Features & Benefits:

FEATURES AND BENEFITS

• Integration with CLSS enables monitoring of event transmission data from the CLSS

mobile app and web portal

• Supports sole path communication leveraging redundant cell carriers (dual-

SIM, each of them supporting multiple operators per country) or a dual-path

cellular communication using IP as the primary path and redundant cellular

carriers as the secondary path

• High reliability due to multiple transmission channels (LTE CAT-M1/LAN) and

redundant servers

• Universal Panel Compatibility support of any panel via digital inputs

• Six dry contact relay inputs for event reporting from alarm panel

• Unique "M1" Network is 5G ready, providing deep signal penetration that allows

operation within buildings

• Remote firmware updates

• CLSS mobile app supports push and email notifications

• Exceptional Redundancy - Dual-SIM device,each SIM supporting multiple operators per

country. If one network becomes unavailable, the communicator connects to

the other network

• Powered directly by a 12-29-volt DC fire alarm power supply. No need for additional

batteries, transformer, or power supply

• Connection monitoring - adjustable fault reporting time

• Web-based software and smartphone app for device configuration and administration

Certifications:

STANDARDS AND CODES

The HW-LTE-M-EN54 is designed to comply with EN54-21:2006 Fire detection

and fire alarm systems - Part 21: Alarm transmission and fault warning routing

equipment.

APPROVALS

• EN54-21:2006 Listed

Honeywell HW-LTE-M-EN54 — The Honeywell® CLSS Pathway is a differentiatedcommunications platform with dual path, dualSIM supporting multiple carriers per country andintegrated features powered by the CLSS Cloud. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
