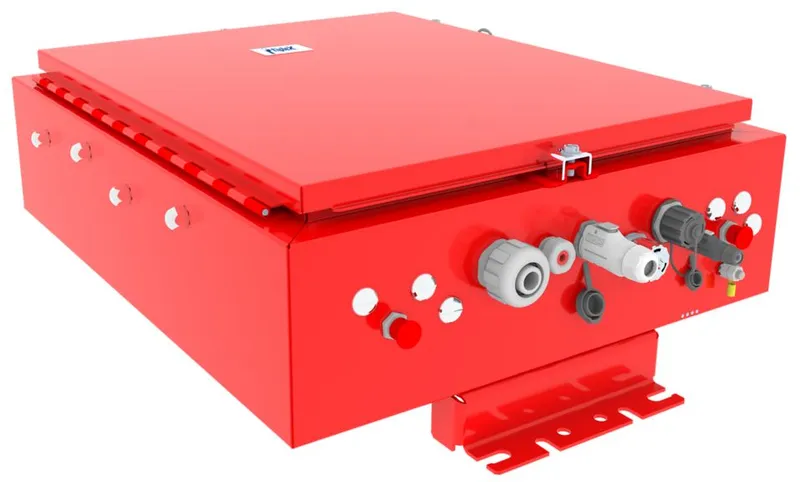

Honeywell HONBDA-A-V3H

Digital Class A/B BDA FIPLEX BY VHF

MPN
HONBDA-A-V3H
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

What is the Honeywell HONBDA-A-V3H?

Fiplex FLEX Series BDA solutions are the industry’s most flexible, user-friendly true mission-critical solution available. From software define configuration to innovative features that ensure mission-critical success, FLEX Series BDAs meet the requirements of both AHJs and Systems Integrators.

Features & Benefits:

Single VHF or UHF and dual band options

Simultaneous dual band 136 - 174 MHz & 450 - 512 MHz with

multiple sub band options in UHF

Channel Selective, software programmable, 32 channels per band

and BW adjustable filters per band

Fully digital signal boosters, FPGA-based

Auto diagnostic

Downlink & Uplink squelch, per channel and per time slot

User adjustable gain control, UL and DL independent, per channel

Automatic Gain Control, per channel and per time slot

Weatherproof enclosure, NEMA4

NFPA compliant

Built-in Spectrum Analyzer

Preserves far-end communications

Preserves BTS UL sensitivity

Compatible with P25 Phase 1 and 2, TETRA, TETRAPOL, NXDN,

DMR, Conventional, MPT1327, among others

3-year warranty

Certifications:

FCC Compliant

IFC 2015, 2018, 2021 Edition Standard

ISO 9001 PECB Certified

NFPA 72, 2013 Edition Standard

NFPA 1221, 2016, 2019 Edition Standard

ROHS compliant

UL2524 2nd Edition Listing with SGS, Nationally Recognized Testing Laboratory (NRTL) approved by OSHA for UL2524

Honeywell Farenhyt, Gamewell-FCI, NOTIFIER HONBDA-A-V3H — Fiplex FLEX Series BDA solutions are the industry’s most flexible, user-friendly true mission-critical solution available. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Brand lineFarenhyt, Gamewell-FCI, NOTIFIER

Others

BrandFarenhyt, Gamewell-FCI, NOTIFIER

Ordering codes

Part numbers on this product pageHONBDA-A-V3H, HONBDA-A-V3L, HONBDA-A-VNH, HONBDA-A-VNL

HONBDA-A-V3H: frequently asked questions

When can HONBDA-A-V3H be shipped?

HONBDA-A-V3H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up HONBDA-A-V3H in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for HONBDA-A-V3H and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HONBDA-A-V3H, subject to availability and destination.

More Honeywell parts

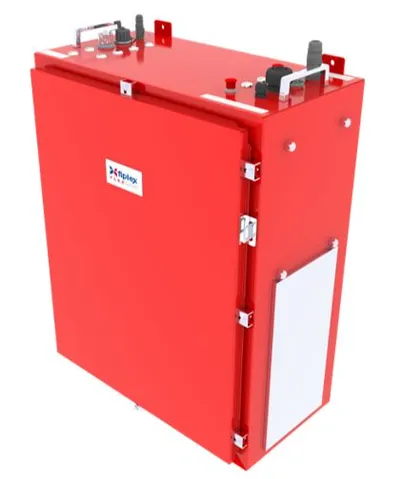

Honeywell HONBDA-A-L15H – Digital Class A/B BDA FIPLEX BY UHF 380-400MHz
