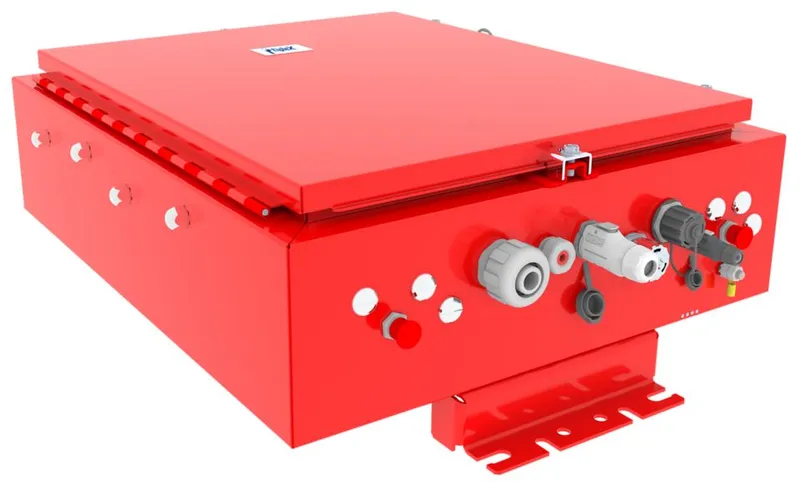

HONBDA-A-T000H Digital Class A/B BDA FIPLEX BY HONEYWELL UHF

Fiplex FLEX Series BDA solutions are the industry’s most flexible, user-friendly true mission-critical solution available. From software define configuration to innovative features that ensure mission-critical success, FLEX Series BDAs meet the requirements of both AHJs and Systems Integrators.

Features & Benefits:

Single VHF or UHF and dual band options

Simultaneous dual band 136 - 174 MHz & 450 - 512 MHz with

multiple sub band options in UHF

Channel Selective, software programmable, 32 channels per band

and BW adjustable filters per band

Fully digital signal boosters, FPGA-based

Auto diagnostic

Downlink & Uplink squelch, per channel and per time slot

User adjustable gain control, UL and DL independent, per channel

Automatic Gain Control, per channel and per time slot

Weatherproof enclosure, NEMA4

NFPA compliant

Built-in Spectrum Analyzer

Preserves far-end communications

Preserves BTS UL sensitivity

Compatible with P25 Phase 1 and 2, TETRA, TETRAPOL, NXDN,

DMR, Conventional, MPT1327, among others

3-year warranty

Certifications:

FCC Compliant

IFC 2015, 2018, 2021 Edition Standard

ISO 9001 PECB Certified

NFPA 72, 2013 Edition Standard

NFPA 1221, 2016, 2019 Edition Standard

ROHS compliant

UL2524 2nd Edition Listing with SGS, Nationally Recognized Testing Laboratory (NRTL) approved by OSHA for UL2524

Honeywell Farenhyt, Gamewell-FCI, NOTIFIER HONBDA-A-T000H — Fiplex FLEX Series BDA solutions are the industry’s most flexible, user-friendly true mission-critical solution available. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications
