Home / Honeywell / Honeywell Notification, Voice Alarm & Emergency Lighting / D1XC2X10024CN1A1RC D1xC2X10R 114dB(A) Radial Alarm & 10J Xenon Strobe

Available on request

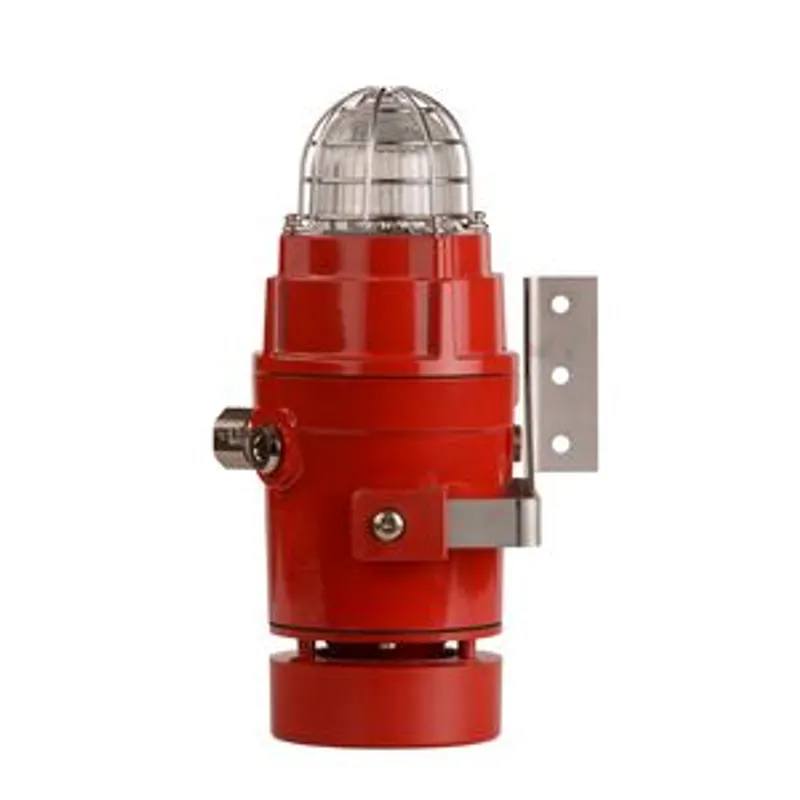

Honeywell – D1XC2X10024CN1A1RC D1xC2X10R 114dB(A) Radial Alarm & 10J Xenon Strobe

Name: Honeywell – D1XC2X10024CN1A1RC D1xC2X10R 114dB(A) Radial Alarm & 10J Xenon Strobe
Brand: Honeywell
SKU: D1XC2X10024CN1A1RC

MPN: D1XC2X10024CN1A1RC · Brand: Honeywell

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Honeywell Notification, Voice Alarm & Emergency Lighting
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can D1XC2X10024CN1A1RC be shipped?

D1XC2X10024CN1A1RC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up D1XC2X10024CN1A1RC in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for D1XC2X10024CN1A1RC and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for D1XC2X10024CN1A1RC, subject to availability and destination.

The D1xC2X10R is a globally certified alarm horn sounder with a compact, omni-directional horn and combined with a 10 Joule Xenon strobe beacon. The robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure is approved for Class I Div 1, Zone 1, IECEx and ATEx Zone 1, 2, 21 & 22 explosion proof signalling applications.

Featuring 64 alarm tones, each of the 4 stage/channels can be remotely activated. Class D amplification provides a high sound output with a choice of two power modes. The threaded flameproof joint, multiple cable entries and duplicated, pluggable termination simplifies both installation and routine maintenance. The 24Vdc version is approved for public (alarm horn) and private mode fire alarm use. SIL1 & SIL2 compliant to IEC61508 (2010) as standard.

Features & Benefits:

Maximum sound pressure level output of 114dB(A)

Choice of 64 alarm tone frequencies.

4 remotely selectable alarm stages/channels

Positive or negative line stage/channel switching

Automatic synchronisation on multi-beacon & sounder systems

User selectable strobe flash rates

Field replaceable lens colour filter

Ratchet adjustable 316 stainless steel bracket

Available with custom tone configurations and frequencies

Robust corrosion proof aluminium enclosure

Duplicate cable terminations

UL464 / CAN/ULC-S525 & UL1638 / CAN/ULC-S526

Certifications:

UL/cUL/ULC File ref: E230764

IECEx Certificate: IECEx ULD 19.0008X

ATEX Certificate: DEMKO 19 ATEX 2141X

CSFM listing: 7136-2279:0506

UKCA certificate: UL21UKEX2132X

INMETRO IEx 24.0158X

Honeywell D1XC2X10024CN1A1RC — The D1xC2X10R is a globally certified alarm horn sounder with a compact, omni-directional horn and combined with a 10 Joule Xenon strobe beacon. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
