Honeywell – D1XC1X05024CN1A1RC D1xC1X05R Radial Alarm & 5J Xenon Strobe 110dB +/-3dB at 10'

Name: Honeywell – D1XC1X05024CN1A1RC D1xC1X05R Radial Alarm & 5J Xenon Strobe 110dB +/-3dB at 10'
Brand: Honeywell
SKU: D1XC1X05024CN1A1RC

MPN: D1XC1X05024CN1A1RC · Brand: Honeywell

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Honeywell Notification, Voice Alarm & Emergency Lighting
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can D1XC1X05024CN1A1RC be shipped?

D1XC1X05024CN1A1RC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up D1XC1X05024CN1A1RC in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for D1XC1X05024CN1A1RC and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for D1XC1X05024CN1A1RC, subject to availability and destination.

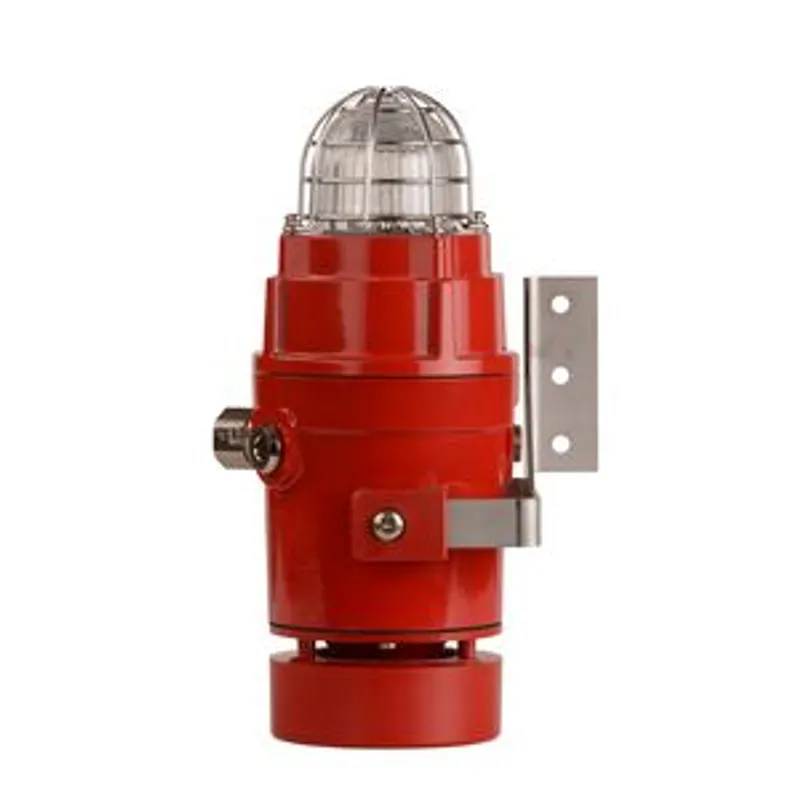

The D1xC1X05R is a globally certified alarm horn sounder with a compact, omni-directional horn and combined with a 5 Joule Xenon strobe beacon. The robust Type 4/4X, IP66/67 marine grade, corrosion proof aluminium enclosure is approved for Class I & II Div 1, Zone 1 & 20, IECEx and ATEX 1, 2, 21 & 22 explosion proof signalling applications.

Featuring 64 alarm tones, each of the 4 stage/channels can be remotely activated. Class D amplification provides a high sound output at optimum operating current. The threaded flameproof joint, multiple cable entries and duplicated, pluggable termination simplifies both installation and routine maintenance. The 24Vdc Class I version is approved for public (alarm horn) and private mode fire alarm use (strobe beacon). SIL1 & 2 compliant to IEC61508 (2010).

Features & Benefits:

Maximum sound pressure level output of 110dB(A)

Automatic synchronisation on multi-beacon & sounder systems

UL464 / CAN/ULC-S525 & UL1638 / CAN/ULC-S526

Certifications:

UL/cUL/ULC File ref: E230764

IECEx Certificate: IECEx ULD 19.0008X

ATEX Certificate: DEMKO 19 ATEX 2141X

CSFM listing: 7136-2279:0506

UKCA certificate: UL21UKEX2132X

INMETRO IEx 24.0158X

Honeywell D1XC1X05024CN1A1RC — The D1xC1X05R is a globally certified alarm horn sounder with a compact, omni-directional horn and combined with a 5 Joule Xenon strobe beacon. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
