Home / Honeywell / Honeywell Notification, Voice Alarm & Emergency Lighting / D1XB2X10024MN1A1RC D1xB2X10 Explosion Proof Xenon Strobe Beacon 10J

Available on request

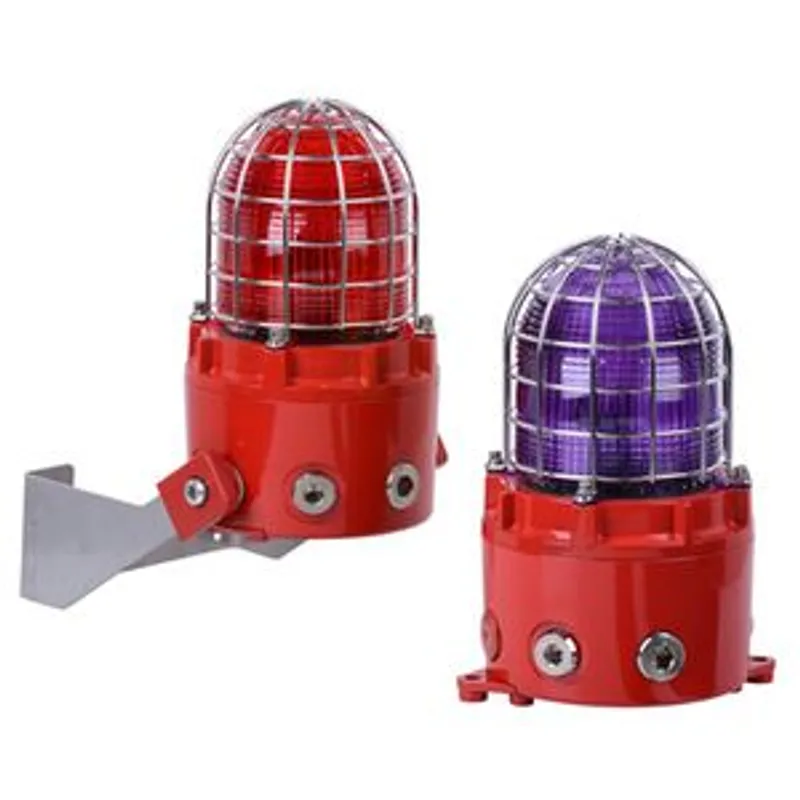

Honeywell – D1XB2X10024MN1A1RC D1xB2X10 Explosion Proof Xenon Strobe Beacon 10J

Name: Honeywell – D1XB2X10024MN1A1RC D1xB2X10 Explosion Proof Xenon Strobe Beacon 10J
Brand: Honeywell
SKU: D1XB2X10024MN1A1RC

MPN: D1XB2X10024MN1A1RC · Brand: Honeywell

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Honeywell Notification, Voice Alarm & Emergency Lighting
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can D1XB2X10024MN1A1RC be shipped?

D1XB2X10024MN1A1RC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up D1XB2X10024MN1A1RC in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for D1XB2X10024MN1A1RC and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for D1XB2X10024MN1A1RC, subject to availability and destination.

Approved to UL1638 and CAN/ULC S526 for fire alarm use the D1xB2X10 beacons produce a high output Xenon flash for effective visual signalling. The field replaceable colour filter enhances the strobe and is constructed from UV stable PC. The robust enclosure features a threaded flame path and multiple cable entries. Mounting options include surface via integrated lugs, pendant or multi directional by addition of the optional stainless steel bracket. SIL1 & SIL2 compliant to IEC61508 (2010) as standard, with optional diagnostic module for Route 1H SIL2 compliance.

Features & Benefits:

Four flash rates: 1Hz, 1.3Hz, 1.5Hz & double flash

Automatic synchronisation on multi-beacon system

A4 316 Stainless Steel guard included as standard

UV stable polycarbonate lens colour filter – field replaceable

4 x side, 1 x pendant cable entries – stopping plugs included

Corrosion proof marine grade aluminium enclosure

UL 1638 & CAN/ULC S526 signaling device for Fire Alarm

UL Marine approved

Certifications:

UL/cUL/ULC – File ref: E245313

IECEx Certificate: IECEx ULD 19.0006X

ATEX Certificate: DEMKO 19 ATEX 2009X

UKCA certificate: UL21UKEX2130X

TR CU Ex EAC certificate: EAC RU C-GB.AA.71.B.00273/20

PESO CCOE certified: P493433-1

CSFM listing: 7300-2279:0508

CCCEx certificate: 2022122309114969

SIL1 & SIL2 compliant to IEC61508 (2010)

Honeywell D1XB2X10024MN1A1RC — The D1xB2X10 is a globally approved explosion proof 10 Joule Xenon beacon. The robust Type 4/4X corrosion proof LM6 marine grade aluminium alloy enclosure ensures suitability for all Class I/II Div 1, Zone 1, 2, 21 & 22 applications. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
