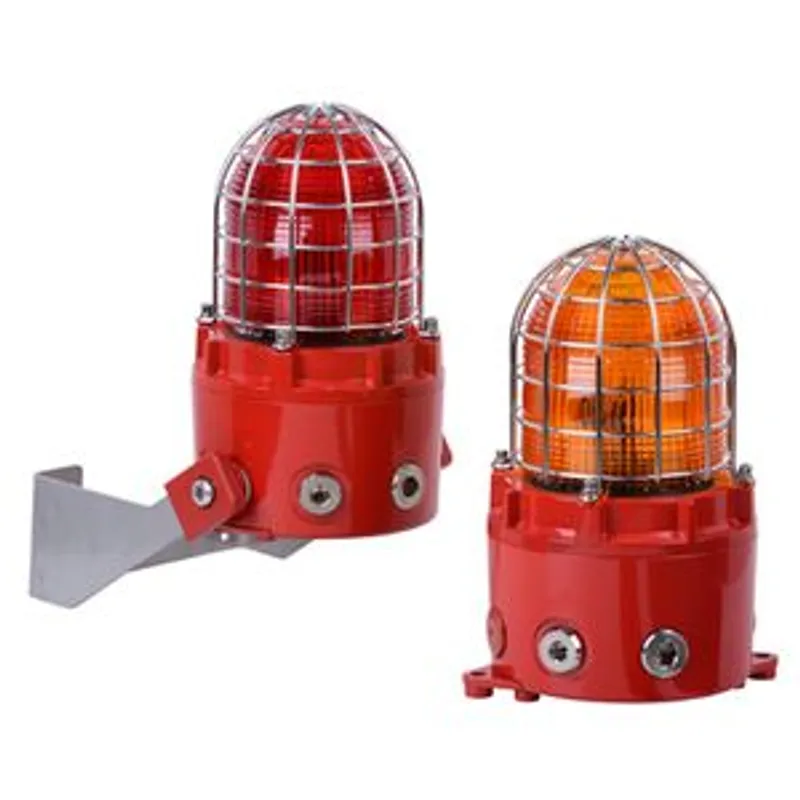

What is the Honeywell D1XB2X05024MN1A1RC?

Approved to EN54-23, MER, MED, UL1638 and CAN/ULC S526 for fire alarm use the D1xB2X05 beacons produce a high output Xenon flash required for effective signalling. The field replaceable UV stable PC colour filter enhances the strobe output. The robust enclosure features a threaded flame path and four cable entries. Mounting options include surface via integrated lugs, pendant or via addition of optional multi direction stainless steel bracket. SIL1 & SIL2 Route 2H compliant to IEC61508 (2010), with optional diagnostic module for Route 1H SIL2 compliance.

Features & Benefits:

Four flash rates: 1Hz, 1.3Hz, 1.5Hz & double flash

Automatic synchronisation on multi-beacon system

A4 316 Stainless Steel guard included as standard

UV stable polycarbonate lens colour filter – field replaceable

Corrosion proof marine grade aluminium enclosure

EN54-23 tested, UK & EU CPR compliant

UL 1638 & CAN/ULC S526 signaling device for Fire Alarm

UL Marine approved

Certifications:

UL/cUL/ULC – File ref: E245313

IECEx Certificate: IECEx ULD 19.0006X

ATEX Certificate: DEMKO 19 ATEX 2009X

UKCA certificate: UL21UKEX2130X

CSFM listing: 7300-2279:0508

CCCEx certificate: 2022122309114969

TR CU Ex EAC certificate: EAC RU C-GB.AA.71.B.00273/20

PESO CCOE certified: P493433-1

EU CPR certificate 2831-CPR-F4859/99

UK CPR certificate: 0832-UKCA-CPR-F1783/854

MED/MER cert: MEDB000085K/MERB000085K

Honeywell D1XB2X05024MN1A1RC — The D1xB2X05 is a globally approved explosion proof 5 Joule Xenon beacon. The robust IP66, Type 4/4X corrosion proof LM6 marine grade aluminium alloy enclosure ensures suitability for all Class I/II Div 1, Zone 1, 2, 21 & 22 applications. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
