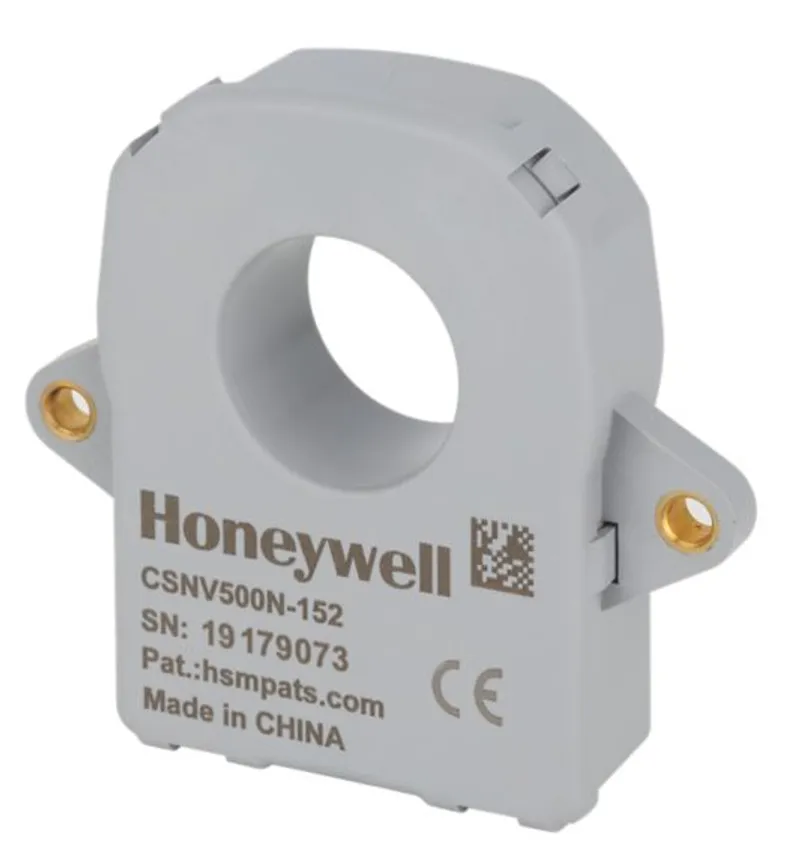

Honeywell – CSNV500M-125 CSNV500 Series Hall-based closed loop current sensors, 500 A, through-hole, 250 k baud rate, 3C5 CAN ID
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Honeywell Industrial Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can CSNV500M-125 be shipped?
CSNV500M-125 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CSNV500M-125 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CSNV500M-125 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CSNV500M-125, subject to availability and destination.
Part of Honeywell's CSNV500 Series Closed Loop Current Sensor range. Honeywell patented technology to bring an enhanced combination of performance and reliability. They are non-intrusive and electrically isolated from the monitored circuit. This can ensure a simple and reliable structure without loss of power to the monitored circuit.The CSNV500 Series are rated for a primary current measurement range of ±500 A dc. They are calibrated and temperature compensated for improved accuracy using multi-point temperature characterization.
FEATURES
Active closed loop current sensing using Hall-effect technology
Utilizes proprietary Honeywell technology for temperature compensation
High accuracy and low temperature drift
Operating temperature of -40°C to 85°C [-40°F to 185°F]
Digital output: CAN bus output with selectable ID
Internal diagnostic function
Different configuration options: Mounting type, baud rate, CAN ID
UL, CE, and UKCA certifications; REACH and RoHS compliant DIFFERENTIATION
Accuracy: Multi-point temperature characterization and calibration for improved accuracy over temperature range
Magnetic immunity: Closed loop configuration and optimized magnetic circuit allow for enhanced performance in diverse magnetic environments
Flexible: Customizable on-board firmware to meet specific application requirements VALUE TO CUSTOMERS
Accurate: Designed to enable precise battery state measurement for improved user experience
Ease of use: Magnetic immunity allows for easy integration into different magnetic environments
Easy system integration: CAN communication is transmitted using international road vehicle standard ISO 11898. CAN 2.0A is the default protocol APPLICATIONS
Current measurement for battery management systems in electrified vehicles (EV, HEV, PHEV, BEV)
Current leakage detection and fault isolation in charging systems
Current measurement in energy storage systems
Fault detection in heavy industrial equipmentDistributor Inventory
Honeywell CSNV500M-125 — CSNV500 Series Hall-based closed loop current sensors, 500 A, through-hole, 250 k baud rate, 3C5 CAN ID (CSNV500 Series Closed Loop Current Sensor). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Description | CSNV500 Series Hall-based closed loop current sensors, 500 A, through-hole, 250 k baud rate, 3C5 CAN ID |
| Product series | CSNV500 Series Closed Loop Current Sensor |
