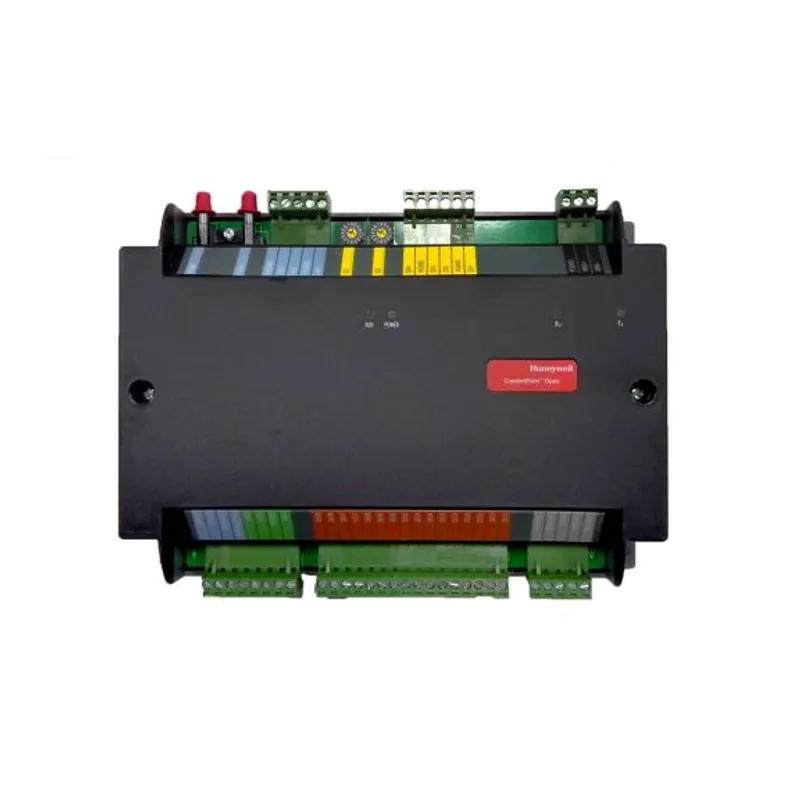

Honeywell – CP-VAV CP VAV Controller

MPN: CP-VAV · Brand: Honeywell

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Honeywell Building Management Systems (BMS)
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can CP-VAV be shipped?

CP-VAV is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CP-VAV in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CP-VAV and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CP-VAV, subject to availability and destination.

CP-VAV firmware 2.5 is based on B-AAC BACnet profile and is a Native BACnet series of controllers. It complies to BACnet 135-2007 protocol revision and has outstanding performance with 32 bit technology. It uses standard VAV application or flexible custom programming and has a built-in real time clock. It Connects to one of three BACnet MSTP channels of a ComfortPoint Open plant controller and is fully integrated with ComfortPoint Open Manager (CPOM) and Enterprise Buildings Integrator (EBI). It has flexible and easy configuration with ComfortPoint Open Studio and quick VAV Balancing with ComfortPoint Open online tool.

Features & Benefits:

Freely Programmable Native BACnet Controller CP-VAV is a freely programmable native BACnet controller. Onboard Input and Outputs CP-VAV comes with base 21 input and outputs with an integrated air flow sensor. VAV Applications ComfortPoint Open Studio tool comes with predefined VAV Applications which can be downloaded to CP-VAV. The Tool allows spare points programming as per user needs.

Programming and Balancing - CP-VAV can be programmed using ComfortPoint Open Studio. Balancing is done via ComfortPoint Open Online which allows online discovery of VAV devices on the BACnet MSTP channel.

Easy installation - The ComfortPoint Open plant controllers have a built in BACnet router which eliminates the need for additional BACnet routers for the system. ComfortPoint Open Manager and EBI can access all MSTP Unitary controllers via CPO-PC- 6A BACnet router.

Peer to Peer communication - CP-VAV can communicate and share points with CP-VAV and CP-SPC over MSTP network.

Flexible mounting options - DIN-rail or wall mounting.

Automatic MAC addressing - Automatically assigns own unique MAC address.

Certifications:

BTL revision 7

UL 916

FCC Part15, Subpart B, Class B

ICES-003 issue 4

Honeywell CP-VAV — Freely programmable native BACnet controller with base 21 input and outputs with integrated airflow sensor. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
