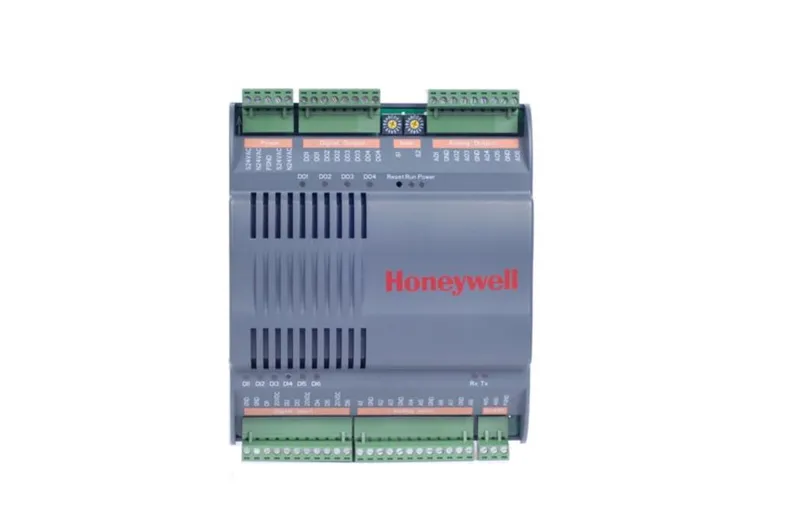

Honeywell CP-EXPIO

CPO Expansion I/O Board

MPN
CP-EXPIO
Price and lead time confirmed within 1 business day

Discontinued by Honeywell — we can still source the original CP-EXPIO (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

What is the Honeywell CP-EXPIO?

Expand point capacity of the supported plant controllers to a maximum of 256 physical I/Os for firmware 2.1 and later versions. For firmware 2.1 and earlier versions a maximum of 128 physical I/Os. A maximum of 15 CP-EXPIO modules can be added for

CP-IPC controller and 16 CP-EXPIO modules to CPO-PC-6A. Powerful processor to support faster IO scanning and flexible and easy configuration with ComfortPoint Open Studio.

Features & Benefits:

Powerful Processor - CP-EXPIO Expansion I/O Boards have powerful onboard processors for fast input/output scanning.

Mixed Inputs and Outputs - CP-EXPIO comes with a mix of 24 input and outputs to suit any application requirements.

Expandable - The ComfortPoint Open plant controller can connect up to: 15 expansion IO boards (for CP-IPC); 16 expansion IO boards (for CPO-PC-6A).

All the Expansion IO boards are connected on the same RS485 CP-IO bus.

Programming and Configuration - ComfortPoint Open Studio allows users to add/delete/modify expansion boards and IO Assignment.

Addressing - Addressing of CP-EXPIO is done via onboard HEX Switch. The address can be between 1 through 15. For firmware 2.1 and later the address can be selected between 0 through 15.

Firmware Upgrade - Firmware on the CP-EXPIO can be easily upgraded using ComfortPoint Open Online.

Flexible mounting options - DIN-rail or Wall mounting.

Certifications:

CE

UL 916

FCC Part 15, Subpart B, Class B

UUKL Smoke Control Application

Honeywell CP-EXPIO — Expand point capacity of the supported CPO plant controllers to a maximum of 256 physical I/Os. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleDiscontinued by Honeywell

CP-EXPIO: frequently asked questions

Can I still buy the CP-EXPIO now that it is discontinued?

Yes. Honeywell has discontinued the CP-EXPIO, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can CP-EXPIO be shipped?

CP-EXPIO is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CP-EXPIO in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CP-EXPIO and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CP-EXPIO, subject to availability and destination.
