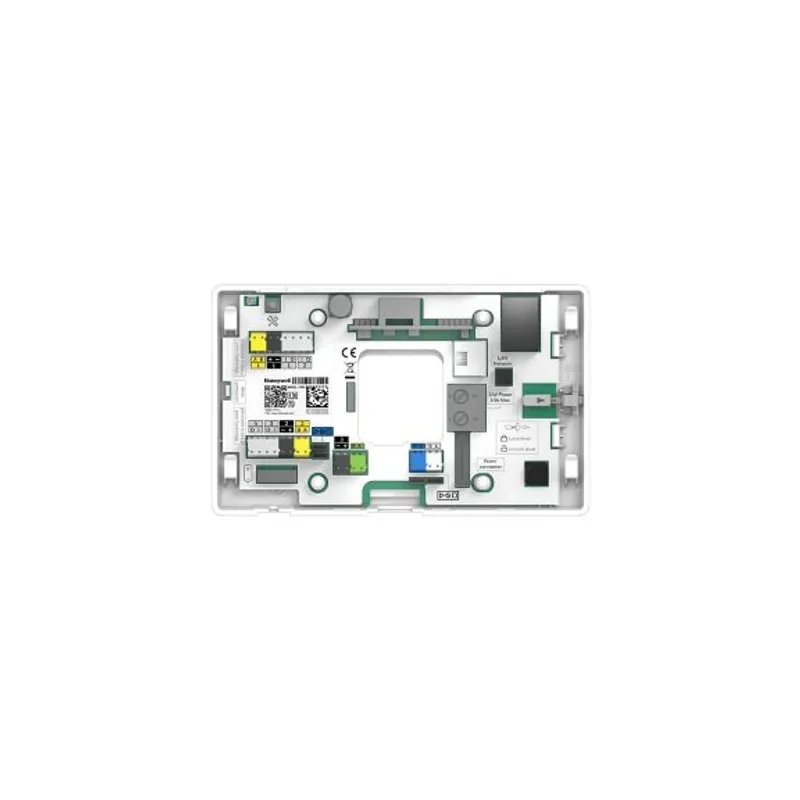

Honeywell 79CM307Z3

Systevo Connection Board STIP

MPN
79CM307Z3
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

What is the Honeywell 79CM307Z3?

Part Number: 79CM307Z3

Connection board for IP touch terminal, to provide the required nurse call system and control functions in the resident/patient room or duty room according to the nurse call standards. Serves as a control unit for additional functions in the corresponding room and as a gateway to the overriding central unit (via Data bus).

Monitoring and synchronization of the entire data traffic and audio connections (calls, announcements) to other rooms within the organizational unit, and coordination of communication with the central units and other room devices via data bus.

Configuration data of the room and used profiles (functions, I/O, device services) are managed via the management server and stored locally (redundant local flash storage), for increased safety.

Associated multifunctional room units as well as the corridor lamp, can be connected to the room controller via the integrated data bus (DBUS) as well as using the integrated call inputs (I/O).

Integration into the corridor data bus (ZBUS) and connection of the bed bus (BBUS) in backward compatibility mode (for bed call modules).

Includes an user-friendly installation technology with colour-coded connection terminals for each individual device and control functions, for a more efficient cabling and for an optimized commissioning process.

Supports bed-wise speaking in combination with an optional bed/speech unit and hand-held device at the bed.

Upgradable to future system firmware thanks to advanced flash storage technologies. Possibility for automated software update during operation.

A multi-level security concept enables local call signaling in the case of a lack of communication with the central unit of the system.

Support of the cyber security requirements of modern data bus infrastructures.

Integrates an electromechanical lock feature to secure the IP touch terminal.

System functions subject to license are provided by corresponding software licenses.

Connection board for IP touch terminal, to provide the required nurse call system and control functions in the resident/patient room or duty room according to the nurse call standards. Serves in Full IP mode as a control unit for additional functions in the respective room and as a gateway to the higher-level central unit (via Ethernet LAN).

All services are routed to the touch terminal via the ETH-LAN interface (optional license may be required).

Monitoring and synchronization of the entire data traffic and audio connections (calls, announcements) to other rooms within the organizational unit, and coordination of communication with the central units and other room devices via data bus.

Configuration data of the room and used profiles (functions, I/O, device services) are managed via the management server and stored locally (redundant local flash storage), for increased safety.

Associated multifunctional room units as well as the corridor lamp, can be connected to the room controller via the integrated data bus (DBUS) as well as using the integrated call inputs (I/O).

Includes an user-friendly installation technology with color-coded connection terminals for each individual device and control functions, for a more efficient cabling and for an optimized commissioning process.

Supports bed-wise speaking in combination with an optional bed/speech unit and hand-held device at the bed.

Upgradable to future system firmware thanks to advanced flash storage technologies. Possibility for automated software update during operation.

A multi-level security concept enables local call signaling in the case of a lack of communication with the central unit of the system.

Support of the cyber security requirements of modern IT infrastructures.

Integrates an electromechanical lock feature to secure the IP touch terminal.

System functions subject to license are provided by corresponding software licenses.

Features

Special material properties:

High quality plastic surface with antimicrobial compound for reduction of existing microorganisms and prevent their reproduction.

Good mechanical properties with high resistance to daily use (operation, cleaning, disinfection, impacts, etc.).

Suitable for use in care facilities with high demands on hygiene, stability, longevity and durability.

Plastic (PC + ABS-FR), matt

UV-resistant, impact-resistant

Heat resistance, stability

Longevity, durability, halogen free

Flame protection (fire protection class V0)

System architecture:

Processor/OS: Embedded µC system

Cyber-Security: Firewall, secured boot loader function

Configuration: via data service

Inputs/Outputs:

LAN: Ethernet/PoE Cat5 F/UTP, 802.3af

PoE power supply

DBUS: 2x RS487 (200 m each) for up to 4 participants each

ABUS/ZBUS: 1x RS487 (500 m) each

Call input/output: 4x I/O

Connection terminals: color-coded for up to 3x 0.8 mm (0.6 mm) wires (rigid)

Galvanic isolation of the control functions according to EN 60601.1.1 through external protective measures

Honeywell 79CM307Z3 — Connection board for IP touch terminal IP (ETH/PoE), to provide the required nurse call system and control functions in the resident/patient room or duty room according to the nurse call standards. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Brand lineHoneywell

Operating Characteristics

Ambient Temperature5 to 55°C
Storage Temperature-20 to 70°C

Standards & Certifications

Type Of ProtectionFire Protection Class V0, IP20

Electrical Specifications

Power (W)7.2
Current consumption @ 24 V DC (mA)215
Current consumption (mA)300

Technical Specifications

MountingSurface (In Combination with Flush-Mounted Backbox)
Connection terminalRS487

Material Specifications

MaterialPC + ABS - FR

Features

Features & BenefitsABUS/ZBUS: 1x RS487 (500 m) Each, Call Input/Output: 4x I/O, Configuration: via Data Service, Connection Terminals: Color-Coded for Up to 3X 0.8 mm (0.6 mm) Wires (Rigid), Cyber-Security: Firewall and Secured Boot Loader Function, Dbus: 2X RS487 (200 M Each) for Up to 4 Participants Each, Durability, Fire Protection Class V0, Galvanic Isolation of the Control Functions According to EN 60601.1.1 Through External Protective Measures, Good Mechanical Properties with High Resistance to Daily Use (Operation, Cleaning, Disinfection, Impacts, etc.), Halogen-Free, Heat-Resistant, High Quailty Plastic Surface with Antimicrobial Compound for Reduction of Existing Microorganisms and Prevent Their Reproduction, Impact-Resistant, Lan: Ethernet/PoE CAT 5 F/UTP, 802.3AF, Longevity, Plastic Compound (PC + ABS-FR) with Matt Finish, PoE Power Supply, Processor/OS: Embedded µc System, Stability, Suitable for Use In Care Facilities with High Requirements In Terms of Hygiene, Stability, Longevity and Durability (Continuous Operation), UV-Resistant

Dimensions & Weight

DimensionsW: 100 mm D: 10 mm L: 170 mm

Applications & Compatibility

CompatibilitySystevo Touch IP terminal and IP (ETH/PoE)

Overview

BrandHoneywell

Others

IndustryHealthcare

79CM307Z3: frequently asked questions

When can 79CM307Z3 be shipped?

79CM307Z3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 79CM307Z3 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 79CM307Z3 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 79CM307Z3, subject to availability and destination.
