Honeywell 788062

Fire protecting cabinet F30

MPN
788062
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

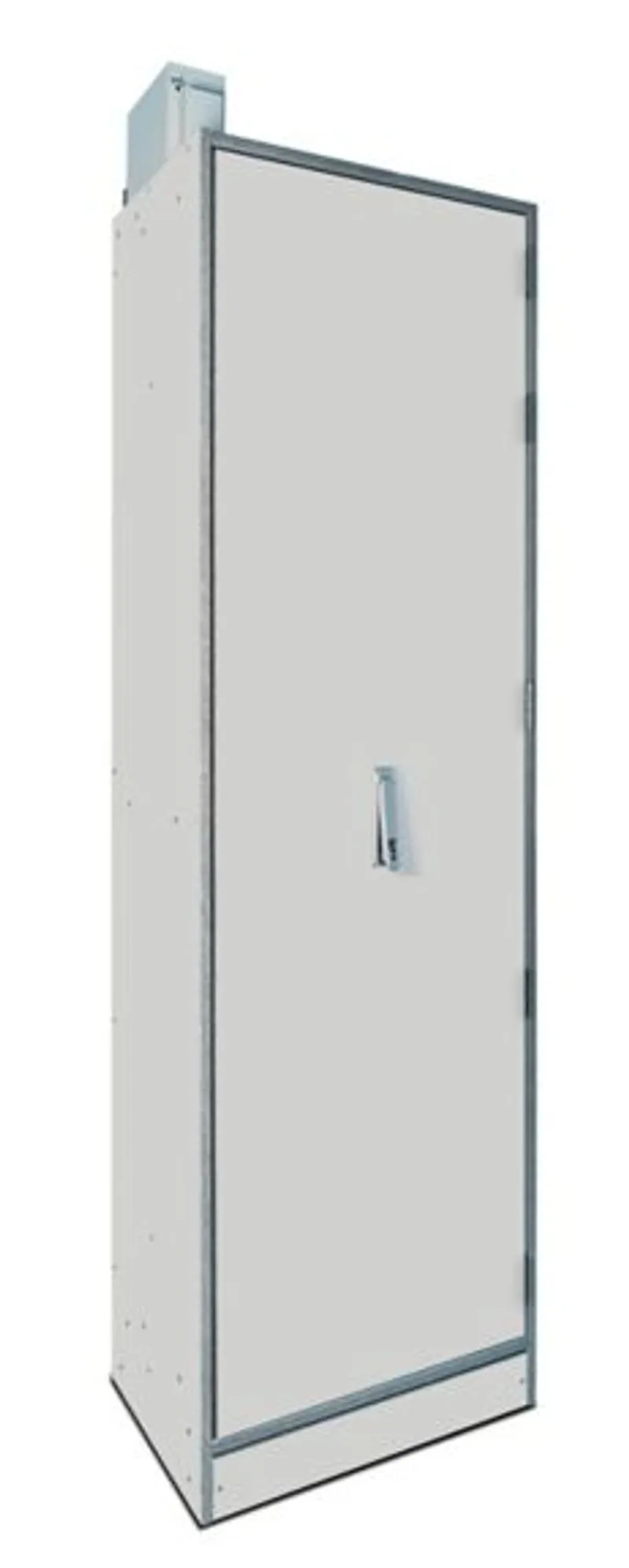

What is the Honeywell 788062?

Fire protecting cabinet F30

Features & Benefits:

Pre-assembled: 788062 (right hinge), 788063 (left hinge)

Kit: 788066 (right hinge), 788067 (left hinge)

Fire resistance F30, tested according to DIN 4102-2

Functional integrity for 30 minutes, based on DIN 4102-12

Fire load insulation for 30 minutes, based on DIN 4102-11

Smoke-tight

Integrated mounting rail system for FlexES FX2 V2, FX10, FX18 V1-3

Cable transit for bundled cable entry (top and bottom)

Closure via push rod with 2-point locking

Locking via swing handle with dummy cylinder

Heavy-duty mounting brackets

Surface coating material A2; non-combustible according to DIN 4102-1

Ventilation system including active ventilation via top-mounted fan

Technical Data:

Protection class: IP41

Color: light grey, similar to RAL 7035

Weight: approx. 170 kg

Dimensions: W: 621 mm, H: 2083 mm + 185 mm top fan, D: 424 mm (external)

Installation dimensions: W: 504 mm, H: 1804 mm, D: 340 mm (internal) (fits)

Scope of Delivery: Fire protection enclosure including top-mounted fan, smoke detector and power supply, mounting rails, swing handle lock with dummy cylinder

Honeywell 788062 — Fire protecting cabinet F30. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive

Ordering codes

Part numbers on this product page788062, 788063, 788066, 788067, 788070

788062: frequently asked questions

When can 788062 be shipped?

788062 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 788062 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 788062 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 788062, subject to availability and destination.
