Honeywell – 788060 Fire protecting housing F30

MPN: 788060 · Brand: Honeywell

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Honeywell Fire Alarm Panels & Modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 788060 be shipped?

788060 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 788060 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 788060 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 788060, subject to availability and destination.

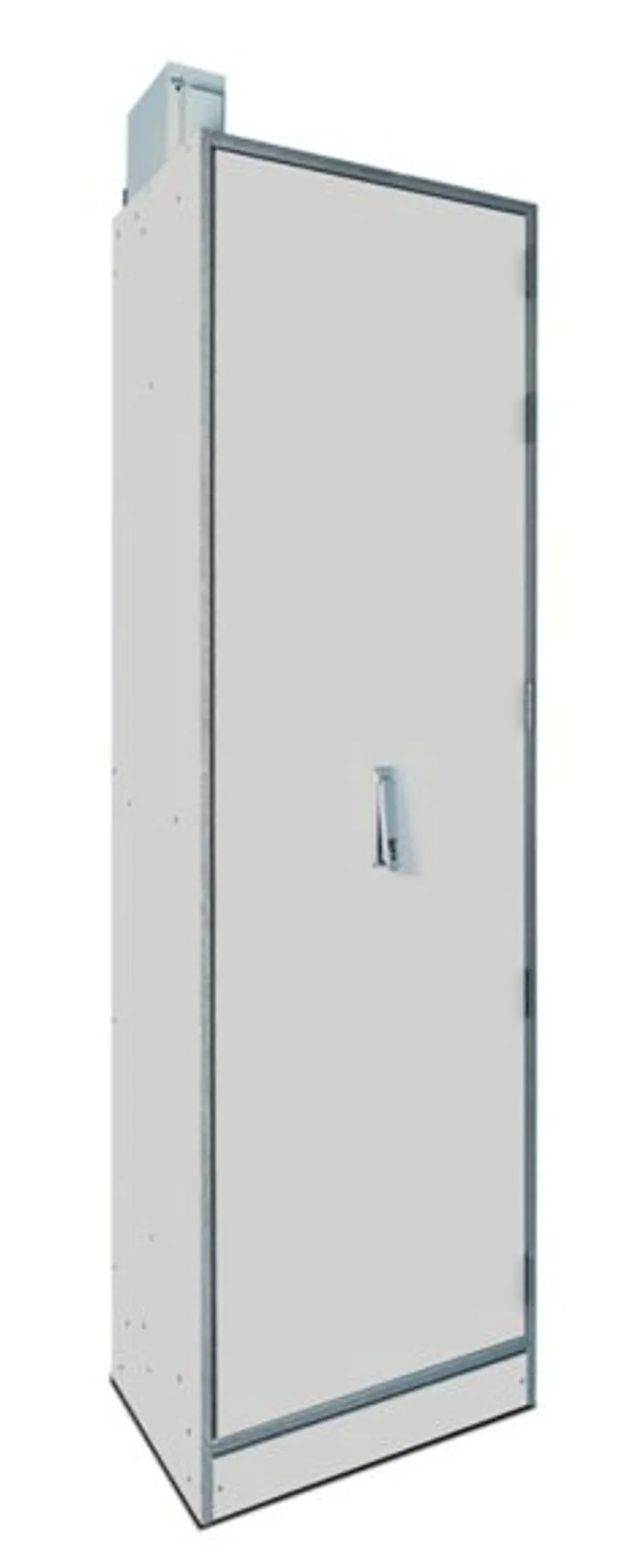

Fire protecting housing F30

Features & Benefits:

Pre-assembled: 788060 (right hinge), 788061 (left hinge)

Kit: 788064 (right hinge), 788065 (left hinge)

Fire resistance F30, tested according to DIN 4102-2

Functional integrity for 30 minutes, based on DIN 4102-12

Fire load insulation for 30 minutes, based on DIN 4102-11

Smoke-tight

Integrated mounting rail system for BMZ FlexES FX2 V1-2, FX10

Cable transit for bundled cable entry (top and bottom)

Closure via push rod with 2-point locking

Locking via swing handle with dummy cylinder

Heavy-duty mounting brackets

Surface coating material A2; non-combustible according to DIN 4102-1

Ventilation system including active ventilation via internal fan / top-mounted fan

Technical Data:

Protection class: IP41

Color: light grey, similar to RAL 7035

Weight: approx. 120 kg

Dimensions: W: 621 mm, H: 1385 mm + 185 mm top fan, D: 424 mm (external)

Installation dimensions: W: 504 mm, H: 1204 mm, D: 340 mm (internal) (fits)

Scope of Delivery: Fire protection enclosure including top-mounted fan, smoke detector and power supply, mounting rails, swing handle lock with dummy cylinder
