What is the Honeywell 784736?

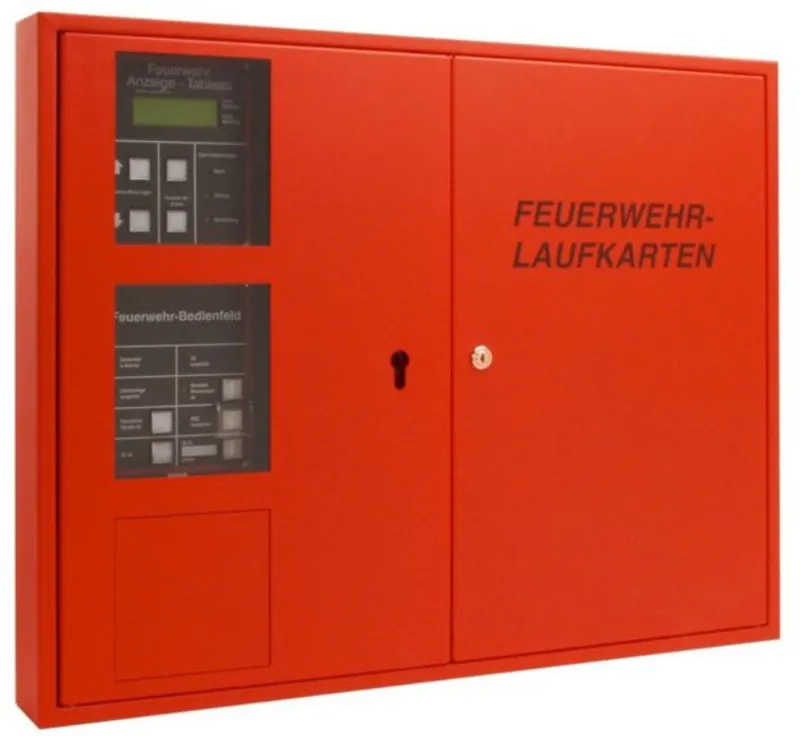

Two sheet steel housing for surface and flush mounting, central door opening for both door leaves through fire department lock (prepared for profile half cylinder installation). The right housing door can be opened individually using an integrated lock. The left half of the housing contains a fire department display panel (FAT 4000) and a fire department control panel (FBF 4000) and is prepared for a manual fire alarm. The connection to the NOTIFIER INSPIRE control panel is established redundantly via the 2-way communication module FBF/FAT (HOP-407-200). No additional interface card is required.

Features & Benefits:

Operating voltage 8 ... 42 V DC

Quiet current @ 12 V DC approx. 80 mA

Quiet current @ 24 V DC approx. 31 mA

Alarm current @ 12 V DC approx. 105 mA

Ambient temperature -5 °C ... 40 °C

Storage temperature -10 °C ... 60 °C

Protection class IP 30

Housing sheet steel

Color red, similar to RAL 3000

Weight approx. 24 kg

Dimensions W: 710 mm H: 560 mm D: 100 mm"

The FAT is delivered without a locking cylinder (DIN 18252). Procurement should be made in consultation with the regional fire department

Honeywell NOTIFIER 784736 — Two sheet steel housing for surface and flush mounting, central door opening for both door leaves through fire department lock (prepared for profile half cylinder installation). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Brand lineNOTIFIER

Others

BrandNOTIFIER

Ordering codes

Part numbers on this product page784736, 784737, 784738
