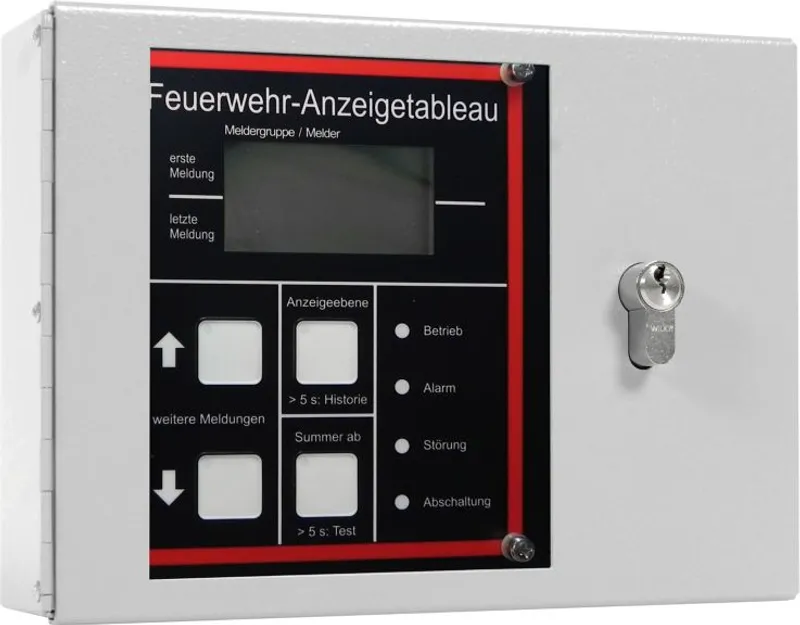

Honeywell – 784735 Fire Brigade display panel

MPN: 784735 · Brand: Honeywell

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Honeywell Fire Alarm Panels & Modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 784735 be shipped?

784735 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 784735 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 784735 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 784735, subject to availability and destination.

Fire brigade display panel (FAT) in accordance with DIN 14662 as an additional display to the NOTIFIER INSPIRE control panel. The connection is established redundantly via the 2-way communication module FBF/FAT (HOP-407-200). No additional interface card is required. The supply voltage and signal path are monitored for short circuits and interruptions in accordance with EN 54-2 as well as for creeping short circuits and creeping interruptions in accordance with EN 54-13.

Features & Benefits:

Graphic display with 6 x 20 characters

LED collective display (operation, alarm, fault, shutdown)

Full functionality in the event of a fault in a line path

Reduction of environmental influences and energy-saving design thanks to capacitive buttons

Redundant connection to NOTIFIER INSPIRE

Operating voltage 10 ... 30 V DC

Quiescent current @ 12 V DC approx. 40 mA

Quiescent current @ 24 V DC approx. 16 mA

Alarm current @ 12 V DC approx. 45 mA

Alarm current @ 24 V DC approx. 23 mA

Ambient temperature -5 °C ... 40 °C

Storage temperature -10 °C ... 60 °C

Protection class IP 30 Housing Sheet steel Color gray, similar to RAL 7032

Weight approx. 2 kg

Dimensions W: 255 mm H: 185 mm D: 58 mm

Certifications:

VdS-Anerkennung: G213058

The FAT is delivered without a locking cylinder (DIN 18252). Procurement should be made in consultation with the regional fire department

Honeywell NOTIFIER 784735 — Fire brigade display panel (FAT) in accordance with DIN 14662 as an additional display to the NOTIFIER INSPIRE control panel. The connection is established redundantly via the 2-way communication module FBF/FAT (HOP-407-200). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
