What is the Honeywell 74165C9?

Part Number: 74165C9

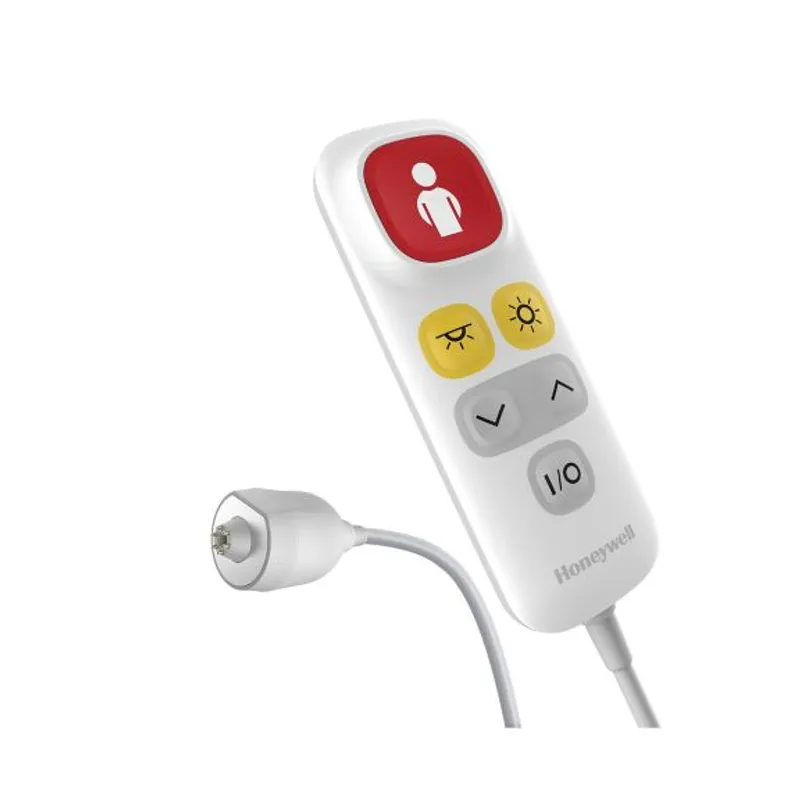

Systevo Call Easy handset with ergonomic design, for easy operation by patients and residents in care facilities. Equipped with plug for magnetic system connector: if the predefined pulling force on the connection cable is exceeded, the system plug automatically disconnects from the bed unit to prevent mechanical damage (bed unit, cable). Equipped with large call button with easily recognizable as well sensible pressure point is the device prepared for safe call initiation and for controlling device functions in direct environment (2 x light sources, 2 x blinds, 1 x on / off).

Housings without dust edges for avoiding the deposition of bacteria or dirt elements and with easy to be cleaned and disinfected surface to fulfill the highest hygienic requirements in care facilities.

Equipped with antimicrobial compound for reduction of existing bacteria or preventing their reproduction.

Suitable for cleaning or wipe disinfection according to specifications of quality systems of care facilities. Tested by hygiene labs and approved for the usage of listed disinfectants (alcohols, aldehydes Quaternary ammonium compounds).

Robust housing with surrounding rubber coating for shock protection and safe handling during daily usage.

Features

Plastic housing in antimicrobial compound, colored in white/gray

Front call button with pictogram and LED reassurance light / finding light in accordance with VDE 0834

Buttons are colored according opera ting functions, with pressure point

Control of light sources

Function selection buttons, On / Off

Version in IP67

Surrounding rubber coating for shock-proof and safe handling

Plug for magnetic system connector

Special material properties:

High quality plastic compound with antimicrobial surface for reduction of microorganisms and to inhibiting the growth of germs.

Good mechanical properties with high resistance to the daily stress (operation, cleaning, disinfection, shocks etc.).

Suitable for use in care facilities with high Requirements for hygiene, stability, Longevity and durability.

Plastic compound (PC + ABS-FR)

UV-resistant

Matt finish

Antimicrobial surface

impact resistance

heat resistance

Strength

longevity

durability

Flame protection (fire protection class V0)

Halogen free

Max. Permissible cable tensile force: 40kg (Cable entry of housing: 20kg)

Databus communication

Accessories

74160Z3 Wall mounting kit, Systevo Call Easy

74160Z2 Mounting, Systevo Call Easy

74160Z1 Fixing-Clip, Systevo Call Easy

Honeywell 74165C9 — Systevo call easy patient handset with 5 control buttons, for magnetic system connector, cable length 5m, protection class IP67. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive

Operating Characteristics

Air Humidity< 90% (Non-Condensing)
Minimum storage temperature (°C)-20
Minimum ambient temperature (°C)-10

Dimensions & Weight

Weight (g)330
DimensionsW: 47 mm H: 133 mm D: 24 mm
Cable length (m)5

Standards & Certifications

Type Of ProtectionFire Protection Class V0, IP67
CE certificateUL 1069, VDE 0834
ApprovalMIL-STD-810G

Electrical Specifications

Power Supply24 VDC
Current consumption @ 24 V DC (mA)30 to 50

Material Specifications

MaterialPC + ABS-FR (AM, UV)

Features

Features & Benefits7-Pole Connector (DIN), Antimicrobial Surface, Buttons are Colored According Operating Functions with Pressure Point, Durability, Front Call Button with Pictogram and LED Reassurance Light/Finding Light in Accordance with VDE 0834, Good Mechanical Properties with High Resistance to the Daily Stress (Operation, Cleaning, Disinfection, Shocks etc.), Halogen Free, Heat Resistance, High Quality Plastic Compound with Antimicrobial Surface for Reduction of Microorganisms and to Inhibiting the Growth of Germs, Impact Resistance, Longevity, Matt Finish, Max. Permissible Cable Tensile Force: 40kg (Cable Entry of Housing: 20kg), NCC, Plastic Compound (PC + ABS-FR), Plastic Housing in Antimicrobial Compound Colored in White/Gray, Plug for Magnetic System Connector, Strength, Suitable for Use in Care Facilities with High Requirements for Hygiene, Stability, Longevity and Durability, Surrounding Rubber Coating for Shockproof and Safe Handling, UV-Resistant
ColorFront in White (RAL9003), Housing Back in Gray, Light Gray Cable
Coating TypeRubber

Others

IndustryHealthcare
