Home / Honeywell / Honeywell Nurse Call Systems / 74163C1 74163C1 Systevo Call Easy Patient Handset

Available on request

Honeywell – 74163C1 74163C1 Systevo Call Easy Patient Handset

MPN: 74163C1 · Brand: Honeywell

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Honeywell Nurse Call Systems
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 74163C1 be shipped?

74163C1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 74163C1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 74163C1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 74163C1, subject to availability and destination.

Part Number: 74163C1

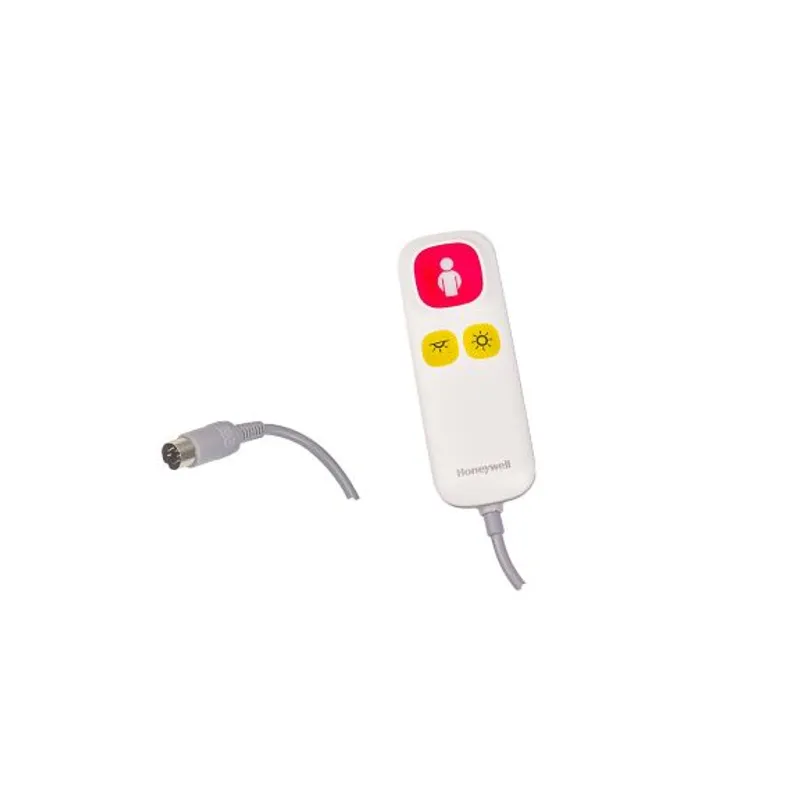

Systevo Call Easy handset with ergonomic design, for easy operation by patients and residents in care facilities. Equipped with large call button with easily recognizable as well sensible pressure point is the device prepared for safe call initiation and for controlling device functions in direct environment (2 x light sources).

Housings without dust edges for avoiding the deposition of bacteria or dirt elements and with easy to be cleaned and disinfected surface to fulfill the highest hygienic requirements in care facilities.

Equipped with antimicrobial compound for reduction of existing bacteria or preventing their reproduction.

Suitable for cleaning or wipe disinfection according to specifications of quality systems of care facilities. Tested by hygiene labs and approved for the usage of listed disinfectants (alcohols, aldehydes Quaternary ammonium compounds).

Robust housing with surrounding rubber coating for shock protection and safe handling during daily usage. The keypad is equipped with color-coded control buttons (Light buttons).

Features

Plastic housing in antimicrobial compound, colored in white/gray

Front call button with pictogram and LED reassurance light / finding light in accordance with VDE 0834

Buttons are colored according opera ting functions, with pressure point

Control of light sources

Version in IP67

Surrounding rubber coating for shock-proof and safe handling

7-pole connector (DIN)

Special material properties:

High quality plastic compound with antimicrobial surface for reduction of microorganisms and to inhibiting the growth of germs.

Good mechanical properties with high resistance to the daily stress (operation, cleaning, disinfection, shocks etc.).

Suitable for use in care facilities with high Requirements for hygiene, stability, Longevity and durability.

Plastic compound (PC + ABS-FR)

UV-resistant

Matt finish

Antimicrobial surface

impact resistance

heat resistance

Strength

longevity

durability

Flame protection (fire protection class V0)

Halogen free

Max. Permissible cable tensile force: 40kg (Cable entry of housing: 20kg)

NCC

Accessories

74160Z3 - Wall mounting kit, Systevo Call Easy.

74160Z2 - Mounting, Systevo Call Easy.

74160Z1 - Fixing-Clip, Systevo Call Easy.

Honeywell 74163C1 — Systevo call easy patient handset with 2 light buttons, DIN-Plug, cable length 5m, protection class IP67. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle

Active

Operating Characteristics

Air Humidity	< 90% (Non-Condensing)
Storage Temperature	-20 to 60°C
Minimum storage temperature (°C)	-20
Minimum ambient temperature (°C)	-10
Ambient Temperature	-10 to 50°C

Dimensions & Weight

Weight (g)	290
Dimensions	W: 47 mm H: 133 mm D: 24 mm
Cable length (m)	5

Standards & Certifications

Type Of Protection	Fire Protection Class V0, IP67
CE certificate	UL 1069, VDE 0834
Approval	MIL-STD-810G

Electrical Specifications

Power Supply	24 VDC
Current consumption @ 24 V DC (mA)	10 to 30

Material Specifications

Material

PC + ABS-FR (AM, UV)

Features

Features & Benefits	7-Pole Connector (DIN), Antimicrobial Surface, Buttons are Colored According Operating Functions with Pressure Point, Durability, Front Call Button with Pictogram and LED Reassurance Light/Finding Light in Accordance with VDE 0834, Good Mechanical Properties with High Resistance to the Daily Stress (Operation, Cleaning, Disinfection, Shocks etc.), Halogen Free, Heat Resistance, High Quality Plastic Compound with Antimicrobial Surface for Reduction of Microorganisms and to Inhibiting the Growth of Germs, Impact Resistance, Longevity, Matt Finish, Max. Permissible Cable Tensile Force: 40kg (Cable Entry of Housing: 20kg), NCC, Plastic Compound (PC + ABS-FR), Plastic Housing in Antimicrobial Compound Colored in White/Gray, Strength, Suitable for Use in Care Facilities with High Requirements for Hygiene, Stability, Longevity and Durability, Surrounding Rubber Coating for Shockproof and Safe Handling, UV-Resistant
Color	Front in White (RAL9003), Housing Back in Gray, Light Gray Cable
Coating Type	Rubber
