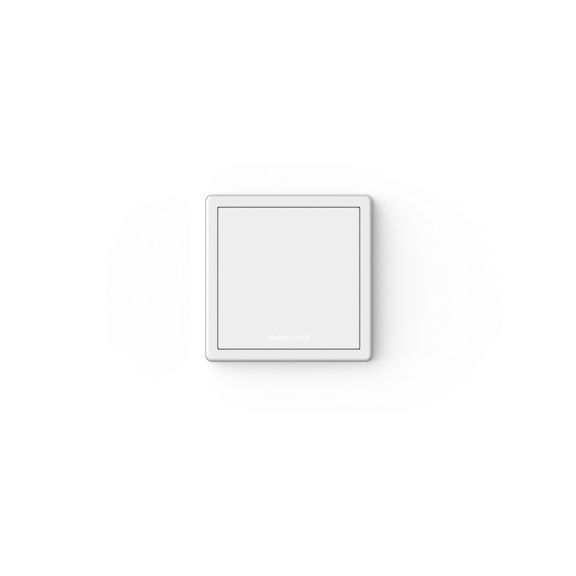

Honeywell – 73091H 73091H Systevo Audio Switch
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Honeywell Nurse Call Systems |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 73091H be shipped?
73091H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 73091H in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 73091H and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 73091H, subject to availability and destination.
Part Number: 73091H
Systevo Audio Switch for providing of either the TV audio tone, using the audio Interface Bus (AI-Bus), or the incoming intercom signal, using the room audio bus (R-Bus), to the bed units. Support of up to 3 bed units with 1 TV set.
In systems with intercom function the Systevo Audio Switch is required to transmit the discrete TV audio tone to the Systevo Call Smart handset.
When an intercom is established, the TV audio is interrupted and the intercom signal is routed to the patient bed. At other bed units, the TV audio tone is still audible.
Controlled by a superordinated room controller (IP) via the data bus (DBUS) such as a room terminal or a room electronic module.
Upgradable to future system firmware thanks to future-oriented flash memory technology to ensure automated software updates during operation.
Features
Inputs/otputs:
Power supply 24V DC
Room-Audiobus (R-ABUS)
3x Audio (outputs)
Audio-Interface Bus (AI-Bus)
Additional information
Product available from September 2021.
Scope of delivery
Systevo Audio Switch, screw connection terminals
Accessories
88885H3 Cover plate Systevo Audio Interface design Systevo Call
88914A5 Frame single for 1 coverplate design Systevo Call
88914B5 Frame double for 2 coverplates design Systevo Call
88914C5 Frame triple for 3 coverplates design Systevo Call
Honeywell 73091H — Systevo Audio Switch for providing of either the TV audio tone, using the audio Interface Bus (AI-Bus), or the incoming intercom signal, using the room audio bus (R-Bus), to the bed units. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
Operating Characteristics
| Air Humidity | < 20% |
| Storage Temperature | 0 to 60°C |
| Minimum storage temperature (°C) | 0 |
| Minimum ambient temperature (°C) | 10 |
| Ambient Temperature | 10 to 55°C |
Dimensions & Weight
| Weight (g) | 60 |
| Dimensions | W: 70 mm H: 70 mm D: 33 mm |
Material Specifications
| Version | Upgradable to Future System Firmware Thanks to Future-Oriented Flash Memory Technology to Ensure Automated Software Updates During Operation |
Standards & Certifications
| Type Of Protection | IP20 |
Electrical Specifications
| Power Supply | 24 VDC |
| Operating voltage (A) | 24 VDC +/- 10% |
| Current consumption (mA) | 55 |
Technical Specifications
| Interface | 3x Audio (Outputs), Audio-Interface Bus (AI-Bus), Controlled by a Superordinated Room Controller (IP) via the Data Bus (DBUS) Such as a Room Terminal or a Room Electronic Module, Room-Audio Bus (R-ABUS) |
| Audio Output | 3x Audio (Outputs) |
Features
| Includes | Screw Connection Terminals, Systevo Audio Switch |
Applications & Compatibility
| For Use With | Systevo Audio Switch for Providing of Either the TV Audio Tone or Using the Audio Interface BUS (AI-BUS) or the Incoming Intercom Signal or Using the Room Audio BUS (R-BUS) to the Bed Units |
Others
| Industry | Healthcare |
