What is the Honeywell 73091C?

Part Number: 73091C

Systevo call/cancel unit, to provide the suitable nurse call functions in patient/resident/duty and other rooms.

Equipped with call and presence button with easily recognizable as well sensible pressure point is the device prepared for safe call initiation and cancellation.

Controlled by a superordinated room controller (IP) via the data bus (DBUS) such as a room terminal or a room electronic module.

In data bus mode: connection of an external call unit to the call input (I/O).

Additional firmware licenses required to deploy new device functionalities.

Features

Equipment:

connection of multifunctional handset

1 call button (with red LED)

1 presence button (with green LED)

Inputs / outputs:

Power supply 24V DC

Data bus (DBUS)

Call input / output (I/O)

Features:

Call triggering, call cancellation

Cancellation of malfunctions (5s)

Configurable system funct. (Input)

Scope of delivery

Systevo Care Unit, screw connection terminals

Accessories

88885C3 Cover plate Systevo call/cancel unit, call button red, cancel button green, design Systevo Call

88914A5 Frame single for 1 coverplate design Systevo Call

88914B5 Frame double for 2 coverplates design Systevo Call

88914C5 Frame triple for 3 coverplates design Systevo Call

Honeywell 73091C — Systevo Call/cancel unit with call/presence buttons, to provide the suitable nurse call functions in patient/resident/duty and other rooms. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive

Operating Characteristics

Air Humidity< 10% (Non-Condensing)
Storage Temperature-20 to 60°C
Minimum storage temperature (°C)-20
Minimum ambient temperature (°C)-10
Ambient Temperature-10 to 50°C

Dimensions & Weight

Weight (g)90
DimensionsW: 70 mm H: 70 mm D: 33 mm

Material Specifications

VersionAdditional Firmware Licenses Required to Deploy New Device Functionalities

Standards & Certifications

Type Of ProtectionIP20

Electrical Specifications

Operating voltage (A)24 VDC +/- 10%
Current consumption (mA)50

Technical Specifications

InterfaceControlled by a Superordinated Room Controller (IP) via the Data Bus (DBUS) Such as a Room Terminal or a Room Electronic Module

Features

IncludesScrew Connection Terminals, Systevo Care Unit
Features & Benefits1 Call Button (Red LED), 1 Presence Button (with Green LED), Call Cancellation, Call Input/Output (I/O), Call Triggering, Cancellation of Malfunctions (5s), Configurable System Function (Input), Connection of Multifunctional Handset, Data Bus (DBUS), Power Supply 24 VDC

Applications & Compatibility

For Use WithPatient/Resident/Duty and Other Rooms

Others

IndustryHealthcare

Ordering codes

Part numbers on this product page73091C, 73091J, 73091K

73091C: frequently asked questions

When can 73091C be shipped?

73091C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 73091C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 73091C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 73091C, subject to availability and destination.

More Honeywell parts

Honeywell 73090B – Cancel Push-Button PR 1
Honeywell
73090B

Cancel Push-Button PR 1

Honeywell 73090J – Systevo Call Unit with Pull Cord
Honeywell
73090J

Systevo Call Unit with Pull Cord

Honeywell 73091A – Systevo Bed Unit with Magnetic Plug System
Honeywell
73091A

Systevo Bed Unit with Magnetic Plug System

Honeywell 73091B – Systevo Bed Unit, DIN-7 Call Socket
Honeywell
73091B

Systevo Bed Unit, DIN-7 Call Socket

Honeywell 73091E – Systevo Bed Unit with Magnetic Plug System
Honeywell
73091E

Systevo Bed Unit with Magnetic Plug System

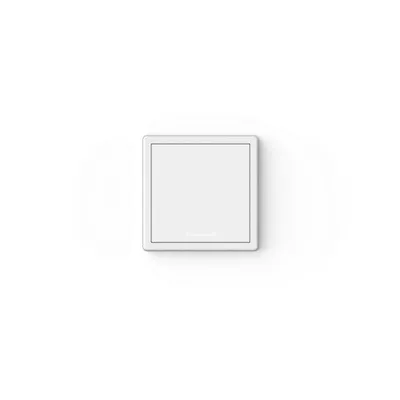

Honeywell 73091H – Systevo Audio Switch
