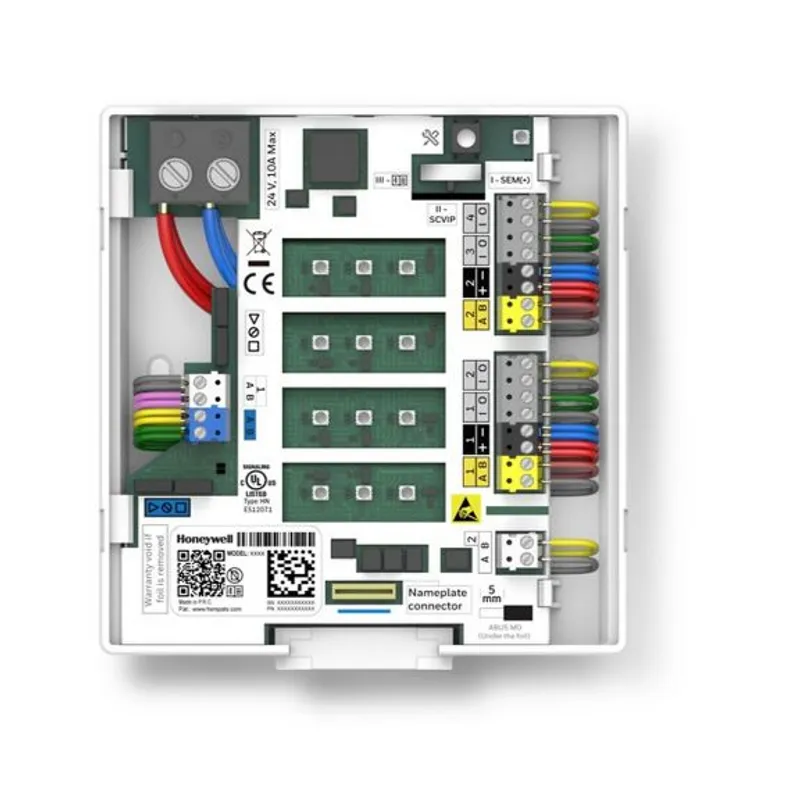

What is the Honeywell 72591D?

Part Number: 72591D

Systevo electronic module with integrated corridor lamp, to provide the required nurse call system and control functions in the resident and patient room or duty room according to the VDE 0834 nurse call standards.

4 light segments with RGB-LEDs using the pre-defined color white, red, green an yellow. Alternative color selections possible, after software update and activation by corresponding software license.

Separate frontcover in color white or silver required. Option: nameplate.

Serves as a control unit for additional functions in the corresponding room and as a gateway to the overriding central control unit.

Monitoring and synchronization of the entire data tranmission and audio connections (intercom, announcements) to rooms within the organizational unit, and coordination of communication with the central control units and other room devices via data bus.

Configuration data of the room and used profiles (functions, I/O, device services) are stored locally (flash memory).

Associated multifunctional room units and an additional corridor lamp, are connected to the room controller via the integrated data bus (DBUS) as well as using the integrated call inputs (I/O).

Supports bed-wise intercom in combination with an the bed unit and patient handset.

Includes an user-friendly installation technology with color-coded connection terminals for each individual device and control functions, for a more efficient cabling and for an optimized commissioning process.

Upgradable to future system firmware thanks to advanced flash storage technologies. Includes the option for automated software update during operation.

A multi-level security concept enables local call signaling in the case of a lack of communication with the central unit of the system. Support of the cyber security requirements of modern data bus infrastructures.

System functions subject to license are provided by corresponding software licenses.

Features

Special material properties:

High quality plastic compound with antimicrobial surface for reduction of microorganisms and to inhibiting the growth of germs.

Good mechanical properties with high resistance to the daily stress (operation, cleaning, disinfection, shocks etc.).

Suitable for use in care facilities with high Requirements for hygiene, stability, Longevity and durability.

Plastic compound (PC + ABS-FR)

UV-resistant, halogen free

Antimicrobial surface, matt finish

Impact and heat resistance

Strength, longevity, durability

Flame protection (fire prot class V0)

Accessories

72590L1 Frontcover for SEM/SCL (silver) Systevo Call Ackermann

72590L2 Frontcover for SEM/SCL (white) Systevo Call Ackermann

72590T1 Systevo Nameplate (silver) Systevo Call Ackermann

72590T2 Systevo Nameplate (white) Systevo Call Ackermann

Honeywell 72591D — Systevo electronic module with integrated corridor lamp, to provide the required nurse call system and control functions in the resident and patient room or duty room according to the VDE 0834 nurse call standards. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Brand lineHoneywell

Operating Characteristics

Air Humidity< 20%
Storage Temperature-20 to 70°C
Minimum storage temperature (°C)-20°C
Minimum ambient temperature (°C)5°C
Ambient Temperature5 to 40°C

Dimensions & Weight

Weight (g)120 g
DimensionsW: 110 mm H: 118 mm D: 27 mm

Standards & Certifications

Type Of ProtectionIP20, V0 (Fire Protection)

Electrical Specifications

Power Supply24 V DC +/-10 %

Technical Specifications

MountingFlush

Material Specifications

MaterialPC + ABS-FR

Features

Functions4 Light Segments with RGB-LEDs Using the Pre-Defined Color White, Red, Green and Yellow. Alternative Color Selections Possible, After Software Update and Activation by Corresponding Software License, A Multi-Level Security Concept Enables Local Call Signaling in the Case of a Lack of Communication with the Central Unit of the System, Associated Multifunctional Room Units as well as the Corridor Lamp, can be Connected to the Room Controller via the Integrated Databus (DBUS) as well as Using the Integrated Call Inputs (I/O), Configuration Data of the Room and Used Profiles (Functions, I/O, Device Services) are Stored Locally (Flash Memory), Future-Oriented Flash Memory Technology to Ensure Automated Software Updates During Operation, Monitoring and Synchronization of the Entire Data Traffic and Audio Connections (Calls, Announcements) to Other Rooms within the Organizational Unit, and Coordination of Communication with the Central Units and Other Room Devices via Databus, Separate Frontcover in Color White or Silver Required. Option: Nameplate, Serves as a Control Unit for Additional Functions in the Corresponding Room and as a Gateway to the Overriding Central Control Unit, Support of the Cyber Security Requirements of Modern Databus Infrastructures, Supports Bed-Wise Intercom in Combination with an the Bed Unit and Patient Handset. Includes an User-Friendly Installation Technology with Color-Coded Connection Terminals for Each Individual Device and Control Functions, System Functions Subject to License are Provided by Corresponding Software Licenses, Systevo Electronic Module with Integrated Corridor Lamp to Provide the Required Nurse Call System and Control Functions in the Resident and Patient Room or Duty Room According to the VDE 0834 Nurse Call Standards
Features & BenefitsAntimicrobial Surface, Durability, Halogen Free, Impact and Heat Resistance, Longevity, Matt Finish, Strength, UV-Resistant
ColorWhite

Overview

BrandHoneywell

Others

IndustryHealthcare

72591D: frequently asked questions

When can 72591D be shipped?

72591D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 72591D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 72591D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 72591D, subject to availability and destination.
