Honeywell – 060-CS61690206225 AL428DR,1A,2U,6A,8A,11C,15A,30B,44A:
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Honeywell Test & Measurement |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 060-CS61690206225 be shipped?
060-CS61690206225 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 060-CS61690206225 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 060-CS61690206225 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 060-CS61690206225, subject to availability and destination.

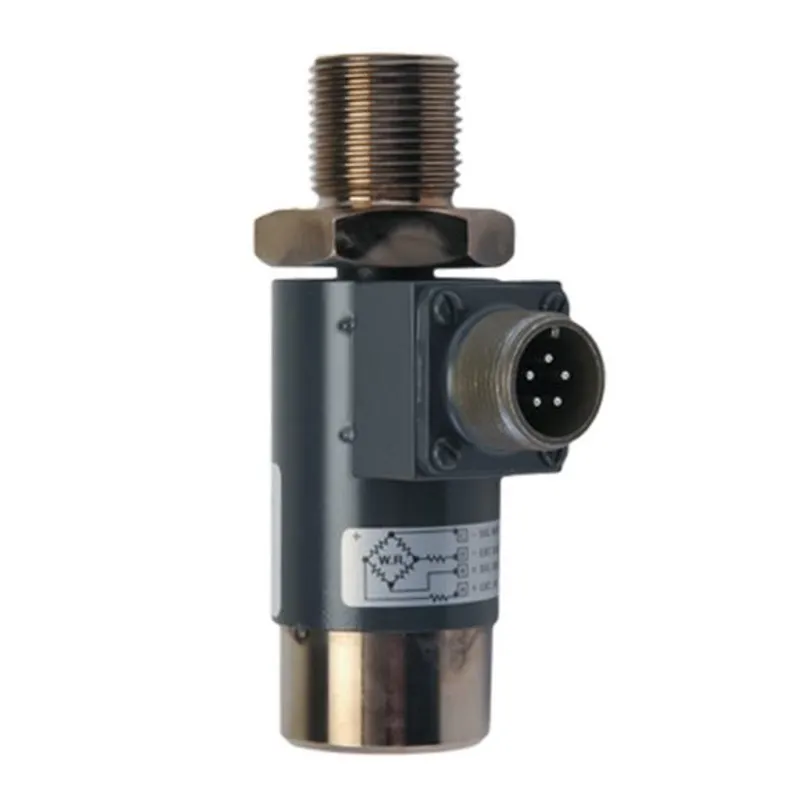

Part of Honeywell's Model 3124 In-Line Load Cell range. Honeywell carbon steel, tension/compression, in-line load cells offer a small diameter design for mounting into an existing work system with tight spaces or clearances.
Economical and easy to mount, these load cells allow simultaneous testing of multi-element systems and are commonly used in fluid power transfer systems.
They may be directly attached to the piston rod of hydraulic cylinder. The side-mounted cable connectors allow cable assemblies to be supported without affecting movement of the cell during tension or compression loading.
Like what you see, but need a special tweak or a custom design? Contact us to discuss your individual requirements.
Features
5000 lb to 25000 lb range
0.25 % non-linearity
0.15 % hysteresis
Adapts directly to hydraulic cylinder
Small diameter allows mounting in restricted areas
Low deflection
Honeywell 060-CS61690206225 — AL428DR,1A,2U,6A,8A,11C,15A,30B,44A: (Model 3124 In-Line Load Cell). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Description | AL428DR,1A,2U,6A,8A,11C,15A,30B,44A: |
| Product series | Model 3124 In-Line Load Cell |
