Honeywell – 060-CS54421206091 AL117DR,1B,2U,6A,15C,30B:MODEL 47, 5,

Name: Honeywell – 060-CS54421206091 AL117DR,1B,2U,6A,15C,30B:MODEL 47, 5,
Brand: Honeywell
SKU: 060-CS54421206091

MPN: 060-CS54421206091 · Brand: Honeywell

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Honeywell Test & Measurement
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 060-CS54421206091 be shipped?

060-CS54421206091 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 060-CS54421206091 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 060-CS54421206091 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 060-CS54421206091, subject to availability and destination.

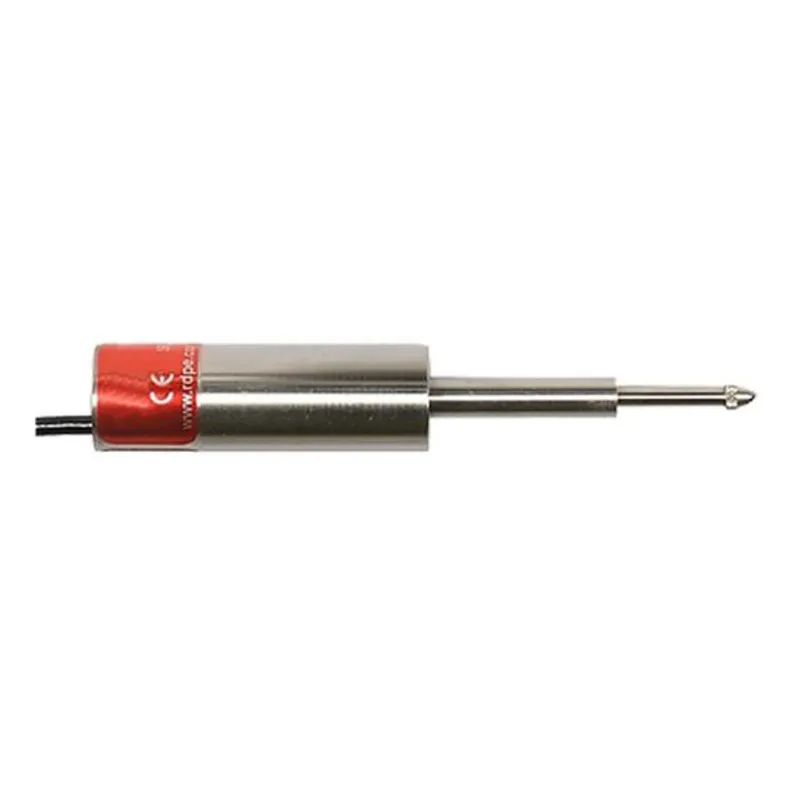

Part of Honeywell's Model S3C Miniature Displacement Transducer range. Model S3C DC-DC Miniature Displacement Transducer with captive guided spring return armature, ranges of ± 0.1 in to ± 0.4 in and accuracy of ± 0.25 % of full scale. Output of either ± 5 Vdc or 0 to 10 Vdc with supply that can operate with either a dual power supply of ± 12 Vdc to ± 20 Vdc or a single power supply of 24 Vdc to 40 Vdc. Unit can operate from a temperature of -58 °F to +158 °F and is constructed with a stainless steel body and has a 6 ft long multi-conductor shielded cable.

Features

Miniature design

Cost efficient

0.25 % non-linearity

Stainless steel construction

±0.1 in to ±0.4 in range

Infinite resolution

Single or dual supply wiring (field selectable)

Captive guided spring return armature

Not RoHS compliant

Honeywell 060-CS54421206091 — AL117DR,1B,2U,6A,15C,30B:MODEL 47, 5, (Model S3C Miniature Displacement Transducer). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
