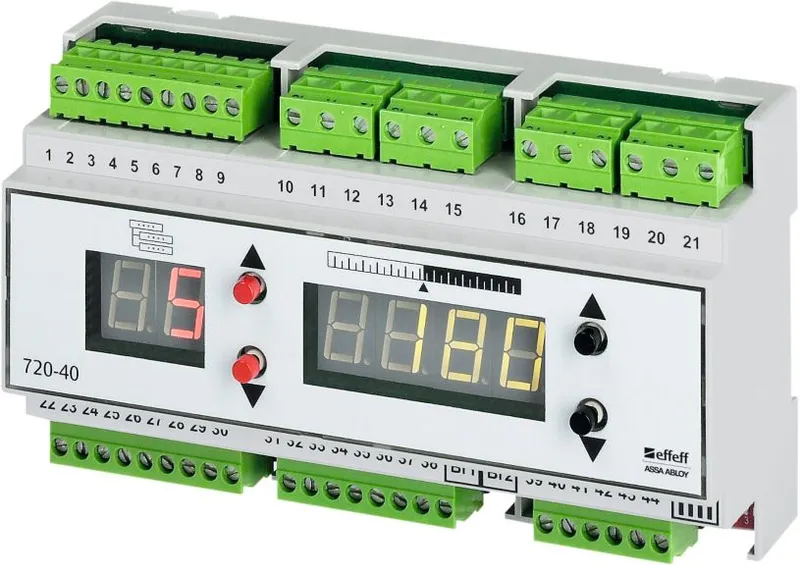

Honeywell – 022660 Escape Route Technology - 720 Control Units for Door Terminals

MPN: 022660 · Brand: Honeywell

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Honeywell Access Control
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 022660 be shipped?

022660 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 022660 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 022660 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 022660, subject to availability and destination.

For controlling electric locking elements along escape and rescue routes approved according to EltVTR.Additional inputs and outputs for, e.g., airlock systems are also available. Furthermore, it enables additional monitoring and control with fire alarm, intrusion detection, and central control systems.Direct connection options for:

One 1380 series door terminal

One 1337 series door terminal

Control unit without a local emergency button

Requires TS-BUS Controller Model 970 and external power supply

Features & Benefits:Emergency Exit Control Module

Connection options for door terminals and operating elements

Connection options for locking elements

Adjustable time sequences for max. permanent release, delayed permanent release, momentary release, pre-alarm, alarm time, orientation signal,

Monitoring of door open time during momentary release.

With 4 configurable inputs for:

Control of locking/unlocking, momentary release, alarm acknowledgment via a potential-free contact of operating elements such as card readers, door code devices, etc.

Momentary release via access control system

Emergency release via fire alarm system or

Priority locking via burglar alarm system or

Release via timer, etc.

With 4 configurable relay outputs for:

Door locked/unlocked or

Door open/closed or

Collective alarm or individual alarm,

Control Door opener/motor lock/revolving door operator/hold-open system.

TS bus interface for parameterization via software (FT Manager) and networking for parallel operation with visualization software, control panels, and WINMAG

Connections: Screw terminals

Technical Data

Integrated control unit

External 24VDC power supply required (09400x)

Networked application via RS-485 TS-BUS controller (022520.11)

Standalone (offline) application possible

Emergency stop switch via external door terminal

Key switch operation via external door terminal or control unit without a local emergency stop button

Setting times and functions via display and menu buttons or FT Manager via TS-BUS controller (022520.11)

Input voltage 12-24 V DC

Output voltage 12-24 V DC

Output current for external loads: Max. 2 A (depending on the external power supply)

Current consumption: 0.1 A at 24 V

Operating temperature range -20 °C to +40 °C

Protection class IP 30

Control module dimensions: 159 x 90 x 60 mm, for DIN rail mounting

Safety relay module dimensions: 87 x 97 x 63 mm, for DIN rail mounting

Inputs: 4 x configurable

Outputs: 4 x configurable, changeover contact 30 V / 1 A

Key switch possible in the opposite direction of escape (without indicator)

Emergency exit terminal for bidirectional escape route

Applications without local emergency button in conjunction with central emergency button (model 720-42 only)

Applications with delayed unlocking via local emergency button in conjunction with central emergency button and FT Manager (model 720-42 only)

Honeywell 022660 — Remote networked escape door control module, model 720.Required for:- one door terminal 1380 series or model 1337- one escape door unit without push button, model 1332Requires TS-BUS Controller (Model 970). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
