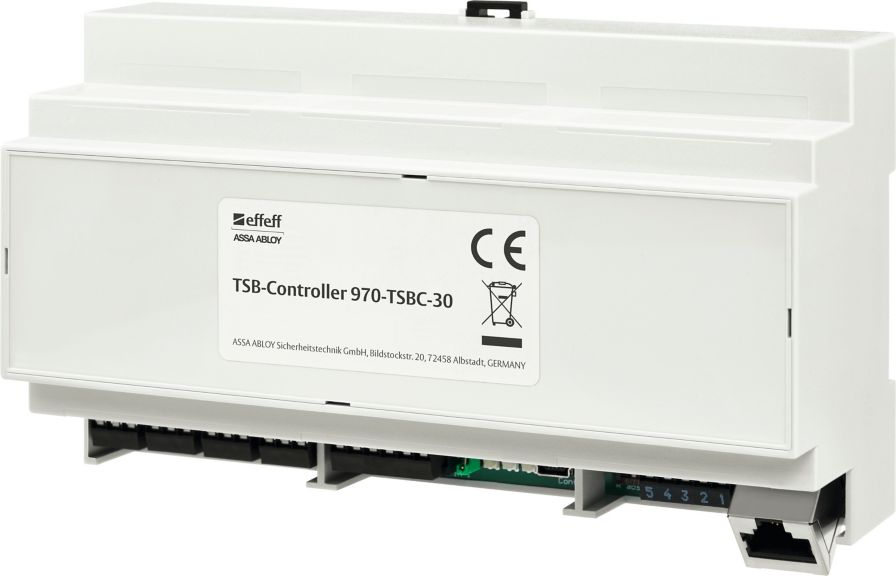

Honeywell – 022520.11 Escape Route Technology - 970 TS Bus-Controller

Name: Honeywell – 022520.11 Escape Route Technology - 970 TS Bus-Controller
Brand: Honeywell
SKU: 022520.11

MPN: 022520.11 · Brand: Honeywell

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Honeywell Access Control
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 022520.11 be shipped?

022520.11 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 022520.11 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 022520.11 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 022520.11, subject to availability and destination.

Processor-controlled bus master for operating TS bus networks with up to 110 participants. With Ethernet interface for connection to a PC in conjunction with visualization software, configuration software, or an OPC server. With 4 configurable inputs for system-wide emergency unlocking via fire alarm system, priority locking via burglar alarm system, and unlocking via timer.

With 4 configurable relay outputs for system-wide messages for collective alarm, individual alarm, and system fault. Integrated group functions for implementing interlock dependencies (mutual locking), fire alarm groups (emergency unlocking), security zones in conjunction with burglar alarm systems (priority locking), release zones in conjunction with timers (permanent release), and group-related alarm and fault messages.

Repeaters and expansion modules of the 901 series are available for extending the TS-BUS RS485 lines, which is common in escape route installations.

Features & Benefits:

Plastic housing for distribution board installation

Includes crossover cable (RJ45)

Includes FT Manager software as an integrated web-based application for central configuration of networked emergency exit control systems or door monitoring systems of the FT II generation (from series 1385, 720-40)

Technical Data

Max. current consumption at 24 V: 400 mA

Operating temperature range: 0 °C – 40 °C

Battery type: CR2032 lithium coin cell, 3 V, 210 mAh

Ethernet RJ45 transmission rate: 100 Mbit/s, IEEE standard 802.3-100BASE-TX

Interface: TS bus interface, 2-wire twisted pair cable

Mounting: Distribution board installation, DIN rail according to DIN EN 60715 TH35

Dimensions (L x W x H): 158 x 90 x 60 mm

Honeywell 022520.11 — Escape door TS-BUS controller (model 970) with accessories for networking emergency exit control elements (1385) and modules (720) as well as central control units (925) via RS485.The controller also enables connection to WINMAG. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
