Honeywell 006808U

6808U ULTRA SERIES

MPN
006808U
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

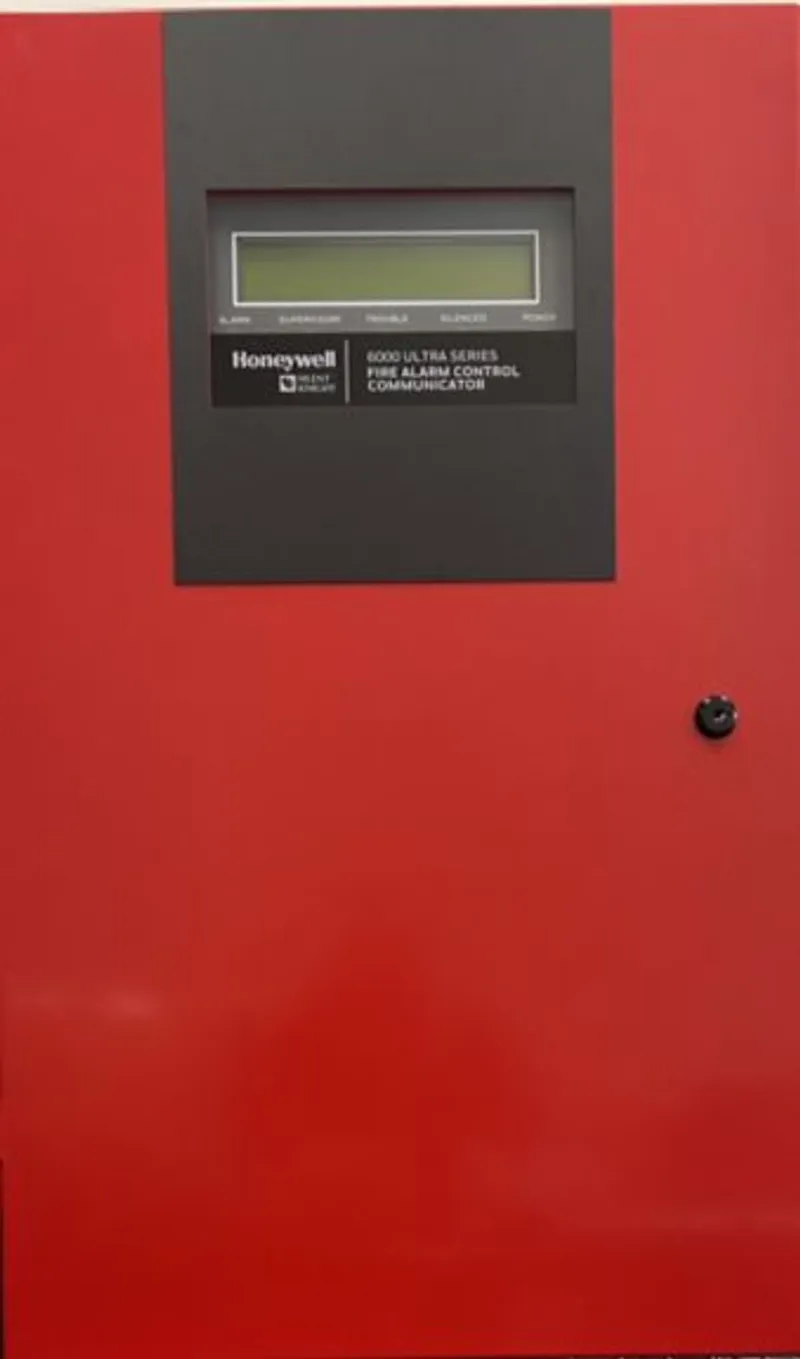

What is the Honeywell 006808U?

The 6808U is the latest intelligent addressable FACP (Fire Alarm Control Panel) from Silent Knight and is a direct replacement for the 6808/5808 FACP. The 6808U has one SLC (signaling line circuit) loop for connecting addressable detectors, which can support 159 System Sensor® SK sensors and 159 SK modules or 127 Hochiki® SD devices per loop

Features & Benefits:

Complies with UL 864 10th Edition

Built-in support for up to 159 IDP/SK detectors and 159 SK modules or 127 SD SLC devices

Eight Flexput circuits (3 amps max) for NAC outputs or auxiliary power

Selectable strobe synchronization for Amseco®, System Sensor, Wheelock®, and Gentex® devices

999 software zones and 999 output groups for flexible design options

Built-in dual phone line, digital alarm communicator/ transmitter (DACT) with IP and optional cellular technologies

Four line LCD display with 20 characters per line

Built-in USB interface for quick and easy programming

JumpStart® auto programming reduces installation time

23 preset notification cadence patterns (including ANSI® 3.41)

Allows up to 20 SBUS devices

Two programmable relays and one fixed trouble relay

Convenient field-upgradeable firmware

Supports up to four SWIFT wireless gateways which can foster up to 49 wireless devices each

Connectivity for up to 17 sites

Network card allows copper network connection with a multi-mode or singlemode fiber connection

Programmable date setting for Daylight Savings Time

History file with 1,000 event capacity

Can be surface or flush-mounted

Honeywell Silent Knight 006808U — The 6808U features a built-in SLC circuit, eight Flexput® circuits, dual-line DACT,powerful software features, and connectivity for up to 17 panels. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Brand lineSilent Knight

Others

BrandSilent Knight
