Honeywell – 0035-1005 Light Pipe Flexible

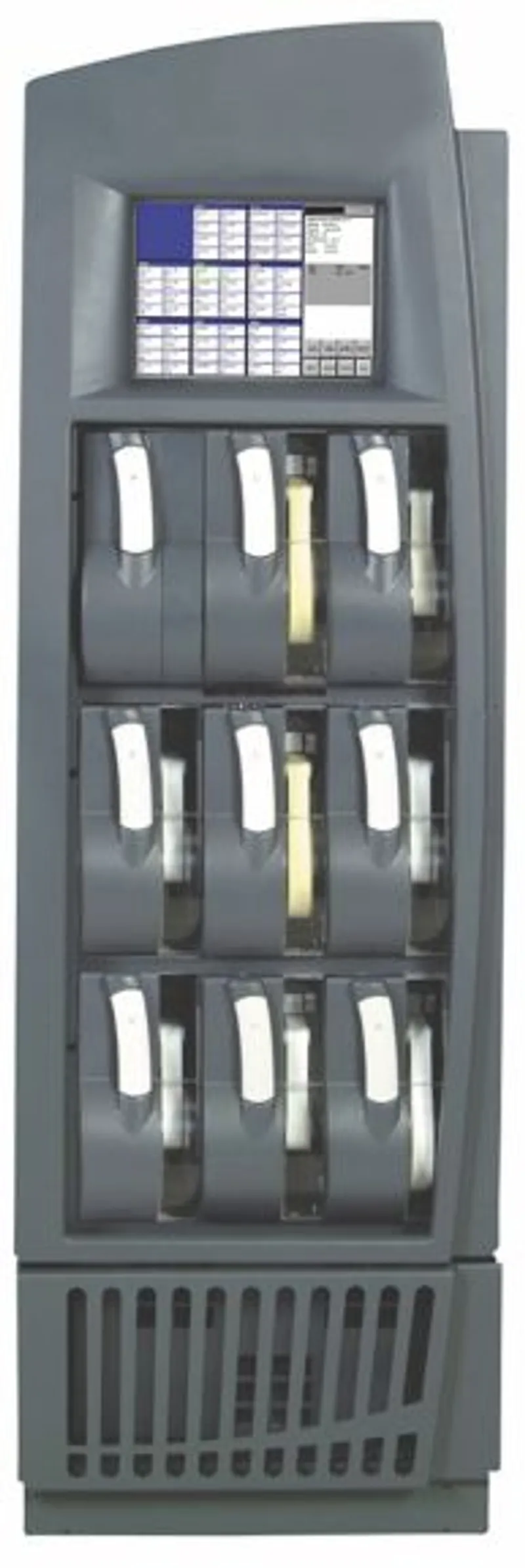

Part of Honeywell's Vertex™ Multi-Point Toxic Gas Monitoring System range. Combines the most advanced Chemcassette®, software and optics technologies into a flexible, reliable monitoring system with up to 72 points of gas detection.

Product Overview:Up to 72 points of continuous gas detection. Vertex combines the most advanced Chemcassette, software and optics technologies into a flexible, easy-to-use, and reliable gas monitoring system.

Flexible:Start your Vertex System with as little as eight points. As your monitoring needs change, Vertex expands, offering you up to 72 points of continuous gas detection. Place your sampling points up to 400 feet (120 meters) from the system. There is a choice of universal analyser modules and/or pyrolyzer analyzers.

Reliable:Vertex offers powerful, built-in system redundancy as standard equipment to effectively safeguard against downtime.

Back-up pump and internal power module

Chemcassette® technology provides physical evidence of gas event

System data back-up. If main data acquisition PC fails, analyzers continue to monitor, log data and alarm

Drip resistant cap for system protection from overhead leaks

Automated leak test with line integrity option

Additional Features and Benefits:

Easy to use:

Touch screen for easy access to data

Software updates via CD-ROM or network to all system components

Configuration profile editing and data retrieval are all achievable without taking unit offline

Radio frequency identification tag (RFID) ensures Chemcassettes are installed into appropriately programmed analyzer, eliminating human error

On-line help system

Security:

Multiple levels of password protection

Reconfigure security setup without taking unit offline

Low cost of ownership:

Vertex’s smaller footprint and greater density of points reduce your cost per point

Eight points per analyser lowers Chemcassette® costs

Maximized 72 point systems provide low cost per point as compared to other continuous monitor

One system monitors up to nine gas families and more than 40 gases

You can split your sample to more than one analyzer

Easy to maintain:

Vertex uses cost-effective XP Chemcassettes®, providing up to three months of continuous monitoring

Simplified replacement of Chemcassettes® and automated optics verification

No dynamic calibration required

No flow balancing

Easy access to analyzers, pumps, power supplies and touch screen from front panel

Onscreen interactive electronic manual with integral video

Advanced communications:

Built-in configurable PLCs with optional 176 relay contacts

Standard OPC interface for easy integration into your existing factory automation system or HMI

Optional Ethernet/CIP, LonWorks®, DeviceNetTM, DF1 Interface, Profibus, Modbus Plus, Modbus/TCP, ControlNet, or isolated 4-20mA outputs available

Optional Chemcam camera permits viewing of stain, locally or remotely, for proof of gas event. Image is electronically saved for future retrieval.

Optional remote control/viewing software enables total visualization of the monitor screens at a remote PC.

Features & Benefits:

Touch screen for easy data access

Low cost of ownership with Chemcassettes

One systems monitors up to 9 gas families/more than 40 gases

Even the best products deserve expert maintenance!Elevate your gas detectors’ potential with Honeywell's expert maintenance services! Maximize uptime, eliminate costs, and ensure on-time, on-budget project completion.Explore our fixed, portable, and high-tech support services now!

Honeywell 0035-1005 — Light Pipe Flexible (Vertex™ Multi-Point Toxic Gas Monitoring System). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
