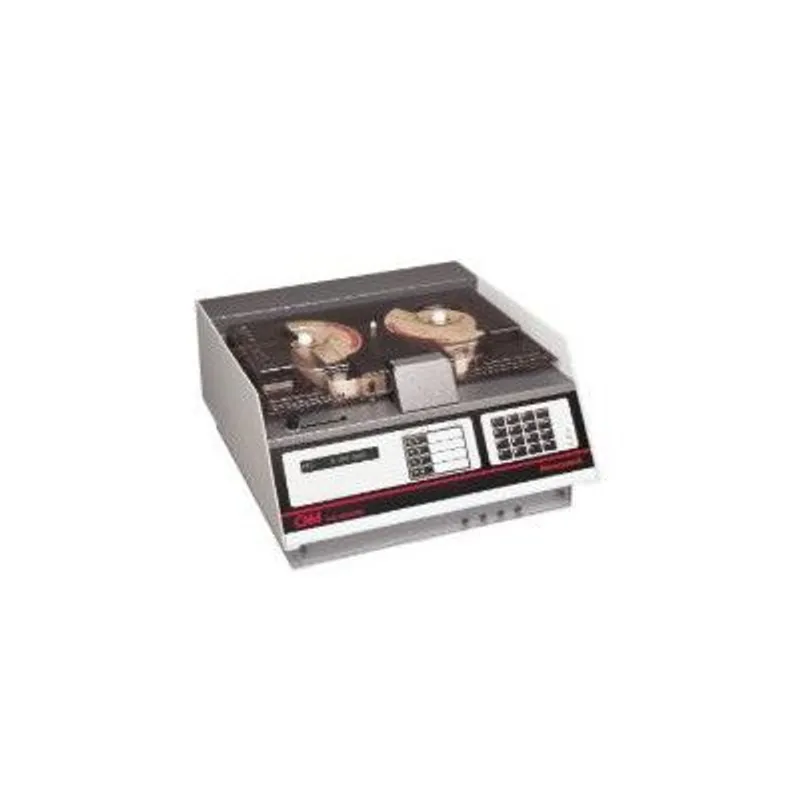

Honeywell 0035-0008

CM4 Toxic Gas Monitor

MPN
0035-0008
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

What is the Honeywell 0035-0008?

This CM4 unit represents the latest in interference free, low maintenance, low cost of ownership solutions for the semiconductor, pharmaceutical and chemical industries.

Its low profile 1/4' tubing minimises intrusion into process areas, ducts, gas cabinets, etc. A variety of signal outputs are available making CM4 a truly flexible product. It easily installs into most building alarm systems.

An optional rack mount enclosure and printer fill out the product range, providing convenient housing and documentation capability. The unit is capable of detecting over 25 gases - some within the same family (hydrides, mineral, acids, etc.)

Additional Features and Benefits:

Continuous Monitoring on 4 Points - Total surveillance all the time

Chemcassette® Technology - ....Reliable, interference-free methodprovides physical evidence of events

Analog and Serial Outputs - Permits easy installation into virtually all annunciation and shutdown systems

300' (90m) Sampling Distance - Monitors can be positioned conveniently with minimal fab intrusion

Table, Wall or Rack Mount Versions - Flexible to meet any requirement

LonWorks® Interface Available - Permits peer to peer communication and low cost of installation

Serial Printer Option - Permits archiving of all important eventsand system configurations

Integral Audio and Visual Alarms - Easily identifies all events

Honeywell Honeywell, Honeywell 0035-0008 — CM4 Serial Communication Protocol. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Brand lineHoneywell, Honeywell

Brand

BrandHoneywell, Honeywell

Category

Sub-CategoryChemcassette Analyzers

Technical Specifications

Air FilterDisposable Glass Fiber (406 mm (16 in) x 609 mm (24 in) Rated 800 cfm @300 fpm
Wiring Requirement24 to 18 AWG
Tubing Sample InletID: 3/16 in OD: 1/4 in FEP Teflon 300 ft Max Line Length
Power EntryTop 20mm (3/4 in) NPT
Overall Width600 mm
Exhaust LineID: 3/16 in OD: 1/4 in Polypropylene

Electrical Specifications

Power Requirement110/230 V AC, 20A

Dimensions & Weight

Overall Depth800 mm
Height2263 mm

Applications & Compatibility

For Use WithVertex MTM

Features

Features & Benefits5 Unit + Printer Design: Easily Archives Events from Five or More Units, Caster Option: Reduces Footprint Required for Service, Compact Footprint: Permits 28 Points of CM4 Detection in A 600 mm x 200 mm (2x 3ft) Area, Convenient I/O Hookup: Permits Unit Service without Rewiring, Integral Tubing Carrier: Ensures Tubing Flexibility and Integrity, Pre-Plumbed : Dramatically Reduces Installation Cost and Time, Sample Port Bulkhead: Provides Quick and Neat Installation, Standard 19 in Mounting: Permits Inclusion of Other Instrumentation Up to a 448-Point Control Card System can be Accommodated

Ordering codes

Part numbers on this product page0035-0008, 0060-0018, 0185-0025, 0185-0029, 0185-0115, 0220-0007, 0235-0095, 0235-0109, 0235-0126, 0235-0128, 0235-0157, 0235-0158, 0235-0163, 0235-0307, 0235-0307-IN, 0235-1012, 0235-1072, 0235-1088, 0235-1089, 0235-1092, 0235-1094, 0235-1108, 0235-1114, 0235-1157, 0235-1159, 0235-1228, 0235-1239, 0235-1243, 0270-0001, 0270-0022, 0320-0012, 0555-0032, 10-504, 10-532, 100650-L9, 102199, 102334, 102531, 102628, 104708

0035-0008: frequently asked questions

When can 0035-0008 be shipped?

0035-0008 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 0035-0008 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 0035-0008 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0035-0008, subject to availability and destination.
