Danfoss LL10K41192

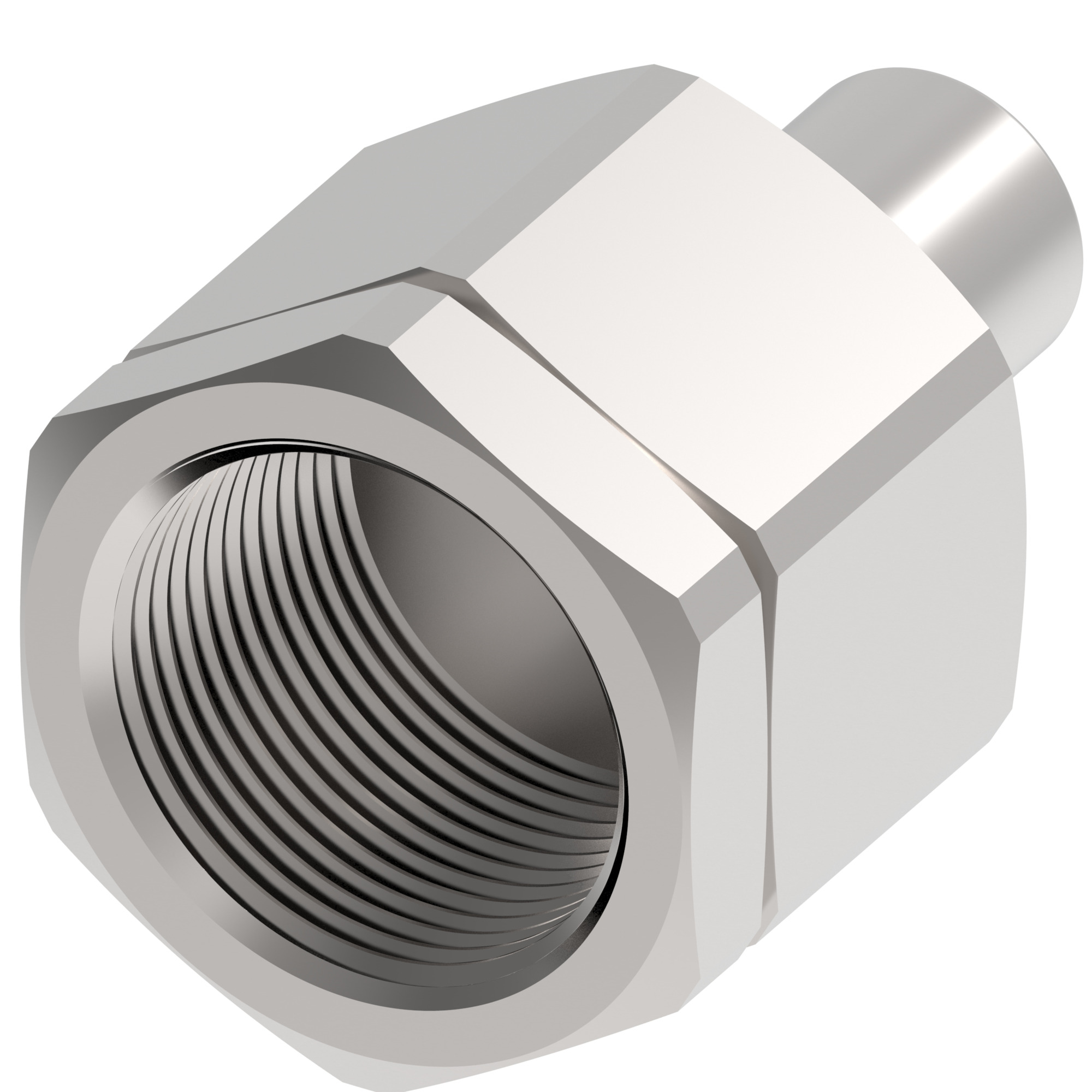

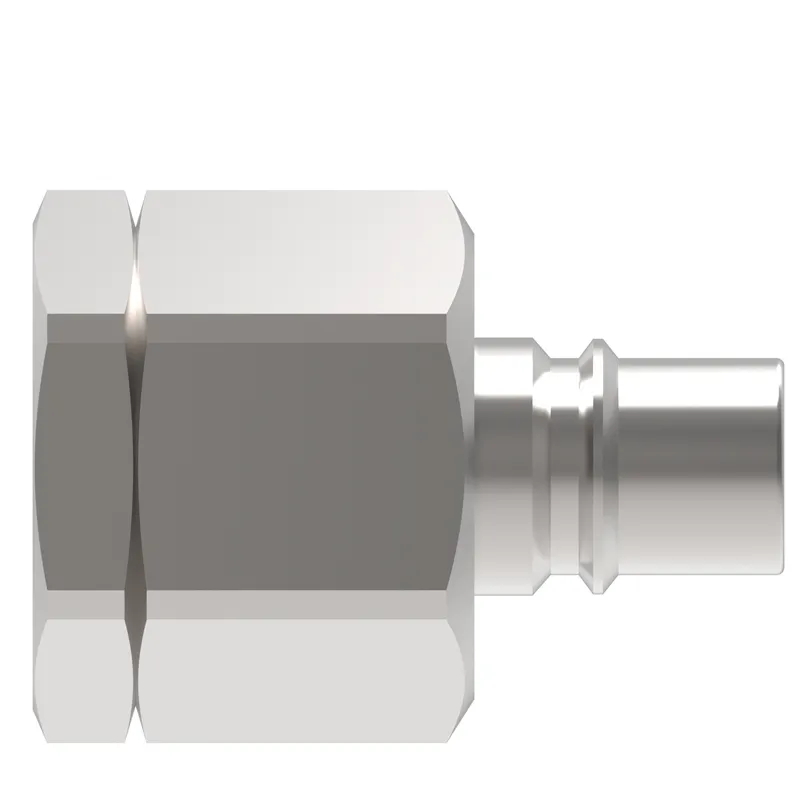

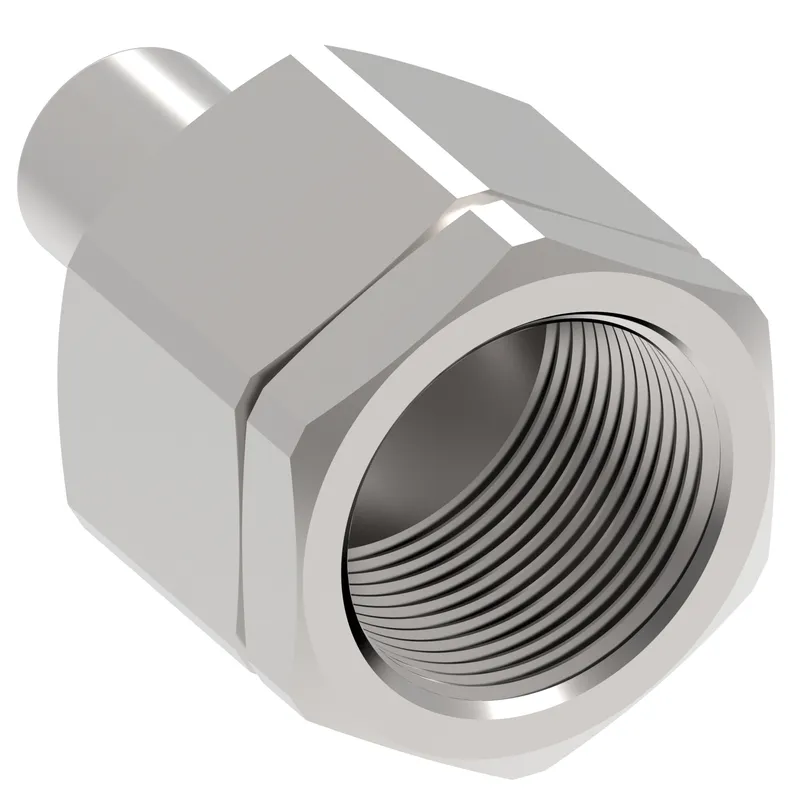

Cplng, HK SERIES MALE, STAINLESS

MPN: LL10K41192
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss LL10K41192?

Danfoss Cplng, HK SERIES MALE, STAINLESS, manufacturer part number LL10K41192. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146162120
Air inclusion max cc	48.00
Air inclusion max in3	2.93
Angle shape	Straight
Body size	1 1/4"
Brand	Danfoss
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 2	-20
End Type 1	Male push to connect
End Type 2	Female pipe (NPTF)
Flow rate GPM	76.00
Flow rate LPM	287.69
Fluid compatibility	Hydraulic fluid
Fluid loss cc	48.00000
Fluid loss in3	2.92900
Hex size 1 IN	2.380
Hex size 1 MM	60.452
Item type	Male half
Latch type	Push/pull
Product material	Stainless steel
Safety locking mechanism	None
Seal material	Ethylene propylene (EPDM)
Sub brand	Hansen
Valve type	2 way
Working pressure max psi	1700
Working pressure max BAR	117.00
Working temperature max C	149
Working temperature max F	300
Working temperature min C	-40
Working temperature min F	-40
