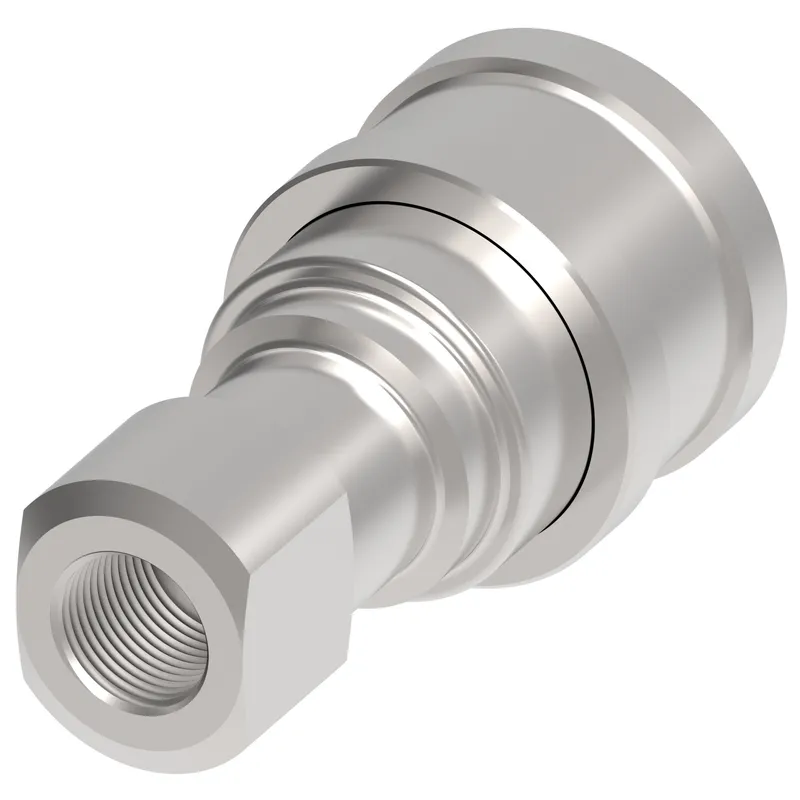

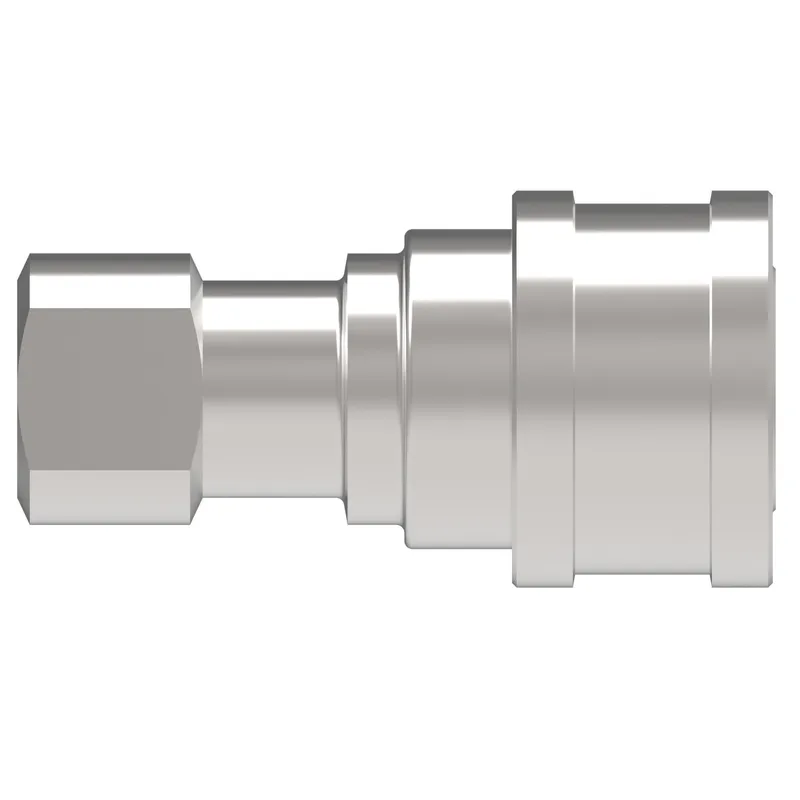

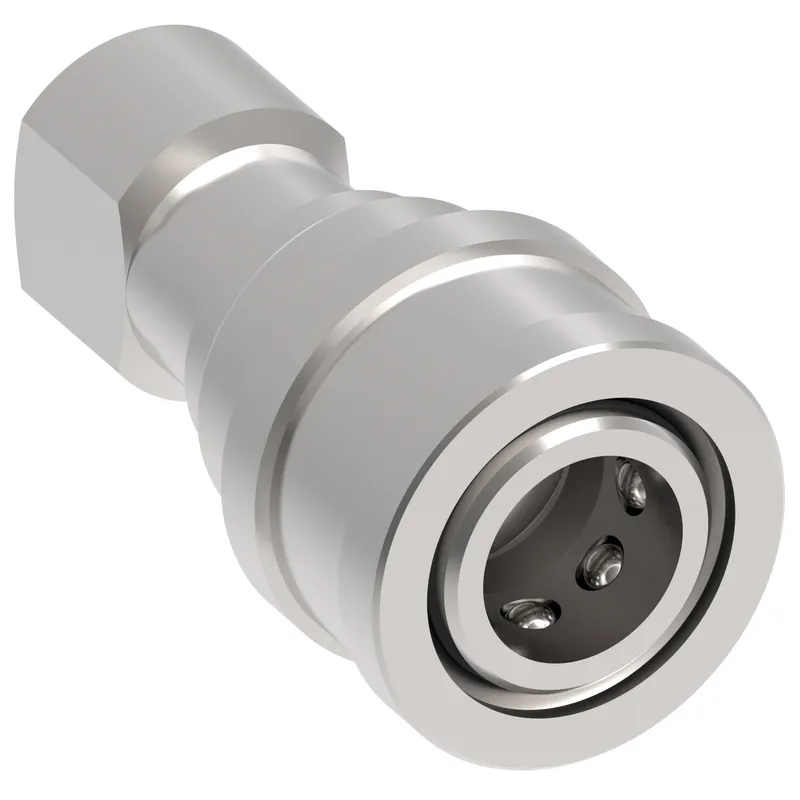

Danfoss LL10H41BS143

COUPLING,HK,F,1"1/4,SS,-20BSP,FKM

MPN: LL10H41BS143
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss LL10H41BS143?

Danfoss COUPLING,HK,F,1"1/4,SS,-20BSP,FKM, manufacturer part number LL10H41BS143. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146110701
Air inclusion max cc	48.00
Air inclusion max in3	2.93
Angle shape	Straight
Body size	1 1/4"
Brand	Danfoss
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 1	-20
End size 2	-20
End Type 1	Female BSPP port washer seal.
Flow rate GPM	76.00
Flow rate LPM	287.69
Fluid loss cc	48.00000
Fluid loss in3	2.92900
Hex size 1 IN	2.380
Item type	Female half
Latch type	Push/pull
Product material	Stainless steel
Safety locking mechanism	None
Seal material	Fluorocarbon (FKM)
Sub brand	Hansen
Thread size 1	1 1/4-11 1/2 NPTF
Valve type	2 way
Working pressure max psi	1700
Working temperature max F	400
Working temperature min F	-15
