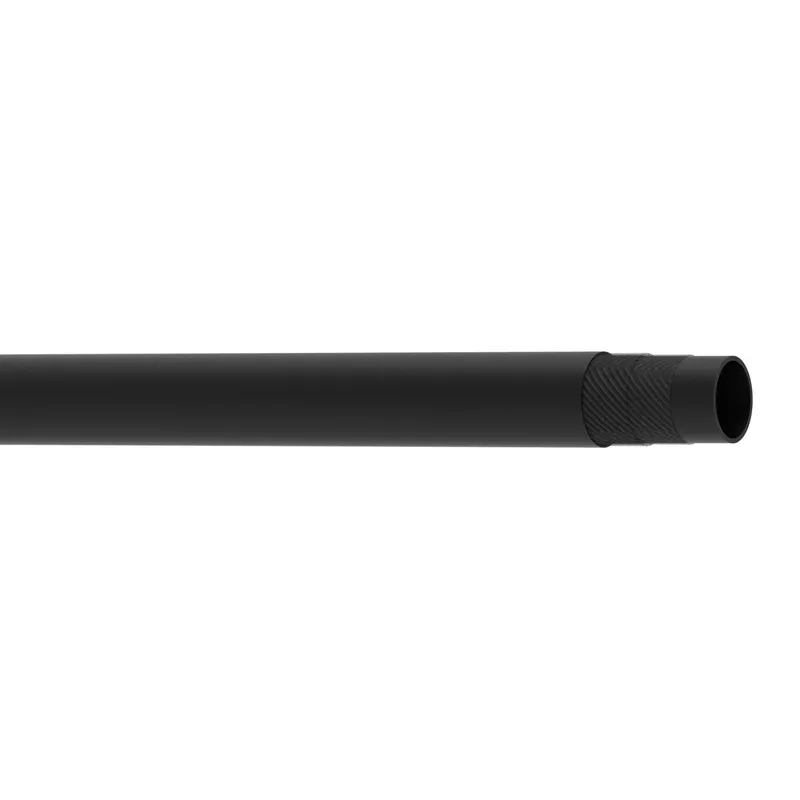

Danfoss H867910-50C

HOSE-BOS, H8679, -10, WATER, GRN, 50FT

MPN
H867910-50C
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H867910-50C?

Danfoss HOSE-BOS, H8679, -10, WATER, GRN, 50FT, manufacturer part number H867910-50C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789267849
Abrasion resistanceStandard
ApplicationWater discharge
Bend radius min (inch)21.000
Bend radius min (mm)533.400
BrandBoston by Danfoss
Burst pressure (bar)21
Burst pressure (psi)300
ColorGreen
CompliancesASTM D380
Construction2 Ply spiral
Cover materialEPDM
Inside diameter (inch)0.63
Inside diameter (mm)16.00
Lay line styleInk transfer
Length (in)600.00000
Length (mm)15240.00000
Outside diameter (inch)0.94
Outside diameter (mm)23.88
Package formReel
Product height in0.630
Product height mm16.000
Product width in0.630
Product width mm16.000 mm
Reinforcement materialFabric
SeriesH8679 Series
Size-10
Tube materialEPDM
Tube wall thickness (inch)0.16
Tube wall thickness (mm)3.94
Working pressure max (bar)7
Working pressure max (psi)100
Working temperature max (C)71
Working temperature max (F)160.0
Working temperature min (C)-34
Working temperature min (F)-30.0

H867910-50C: frequently asked questions

When can H867910-50C be shipped?

H867910-50C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H867910-50C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H867910-50C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H867910-50C, subject to availability and destination.
