Danfoss H835940-150

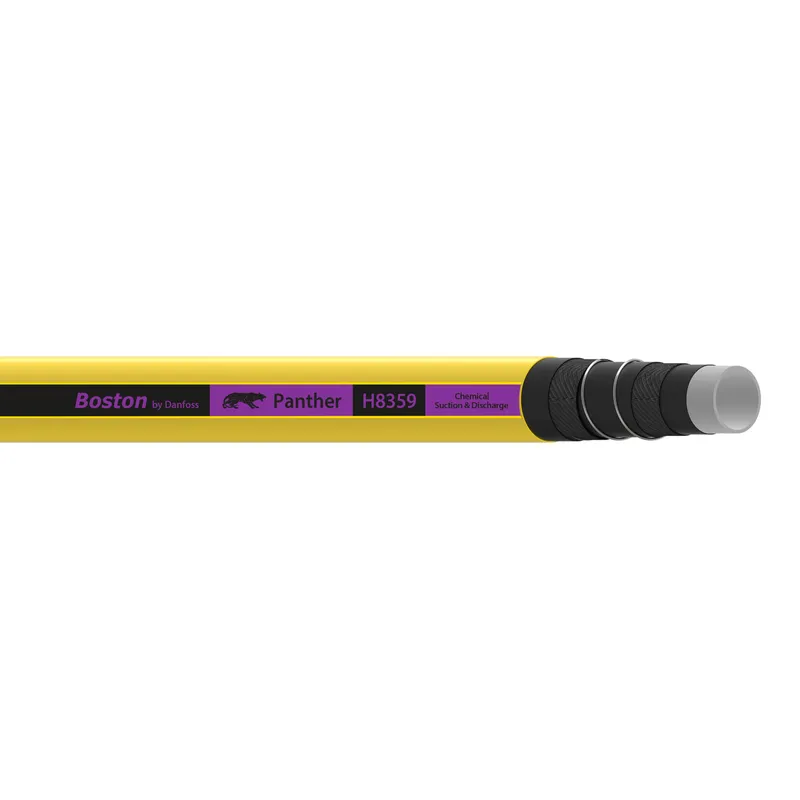

HOSE-BOS,H8359,-40,CHEMICAL,YW,150FT

MPN
H835940-150
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss H835940-150?

Danfoss HOSE-BOS,H8359,-40,CHEMICAL,YW,150FT, manufacturer part number H835940-150. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789296634
Abrasion resistanceStandard
ApplicationChemical transfer
Bend radius min (inch)12.000
Bend radius min (mm)304.800
BrandBoston by Danfoss
Burst pressure (bar)48
Burst pressure (psi)700
ColorYellow
ConductivityConductive
Construction2 Wire Braid
Cover materialEPDM
Inside diameter (inch)2.50
Inside diameter (mm)63.50
Lay line styleInk transfer
Length (in)1800.00000
Length (mm)45720.00000
Outside diameter (inch)3.13
Outside diameter (mm)79.50
Package formReel
Product height in2.500
Product height mm63.500
Product width in2.500
Product width mm63.500 mm
Qualified hose fittingsCam and groove
Reinforcement materialBrass plated steel wire
SeriesH8359 Panther
Size-40
Tube materialUHMW
Tube wall thickness (inch)0.31
Tube wall thickness (mm)7.94
Vacuum rating (inHg)28
Vacuum rating (mmHg)711.20
Working pressure max (bar)12
Working pressure max (psi)175
Working temperature max (C)66
Working temperature max (F)150.0
Working temperature min (C)-42
Working temperature min (F)-45.0

H835940-150: frequently asked questions

When can H835940-150 be shipped?

H835940-150 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H835940-150 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H835940-150 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H835940-150, subject to availability and destination.
